| LCD Description | |
|---|---|

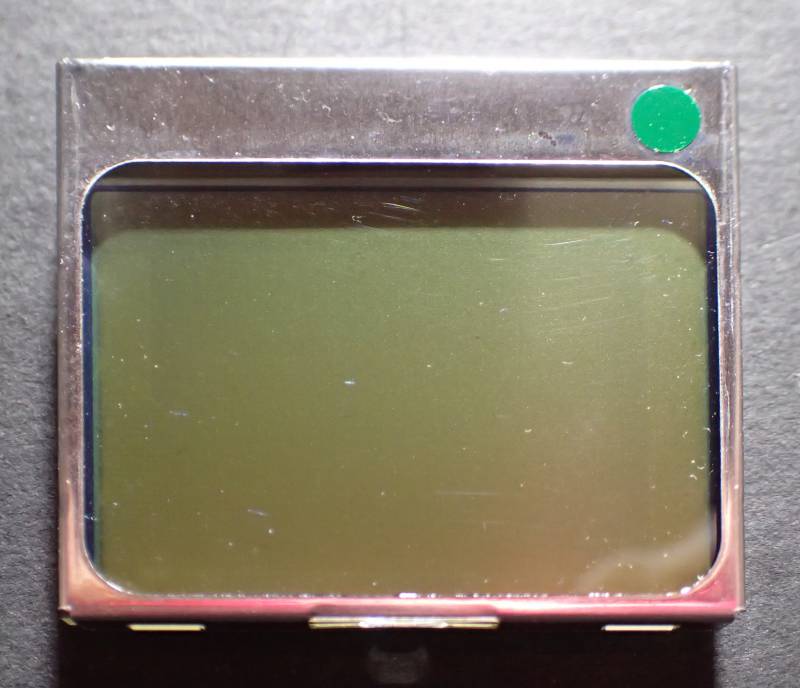

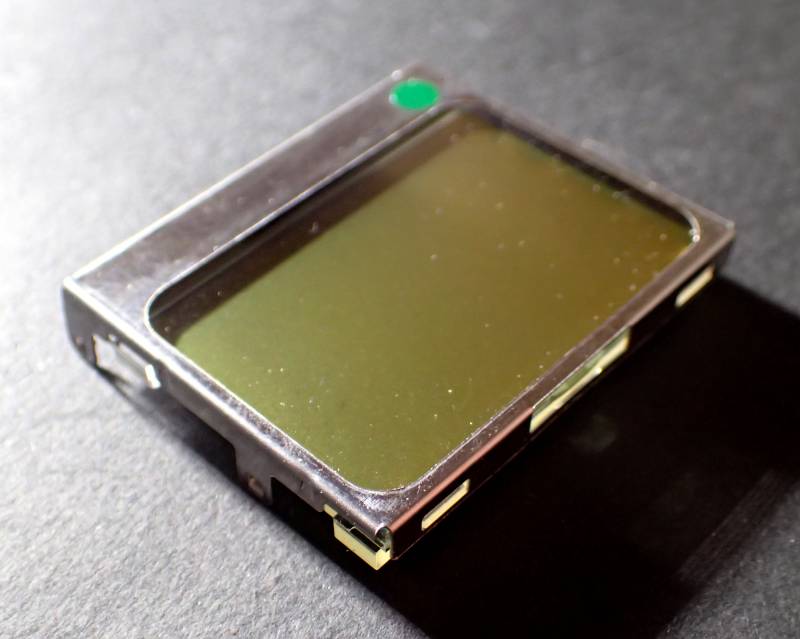

| Model | Nokia 5125 |
| Manufacturer | Nokia |

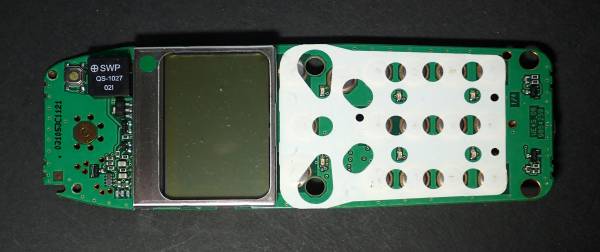

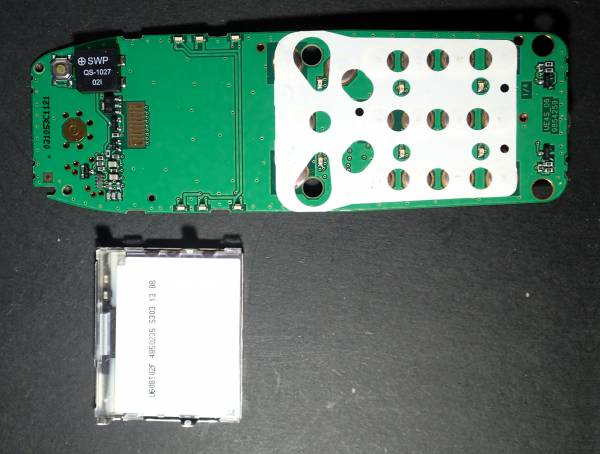

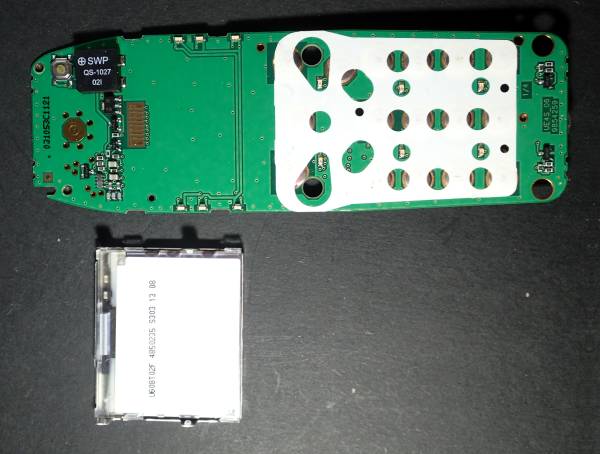

| Recovered from | Nokia NSC-1NX 5125 cellphone |

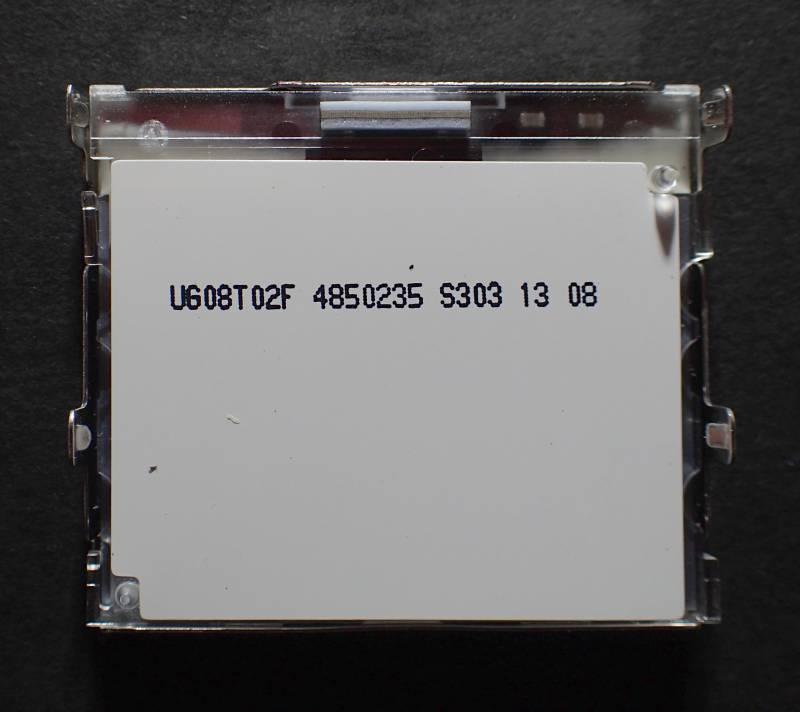

| Board IDs | 4850235, UG08T02F, UE4S_06 9854259 |

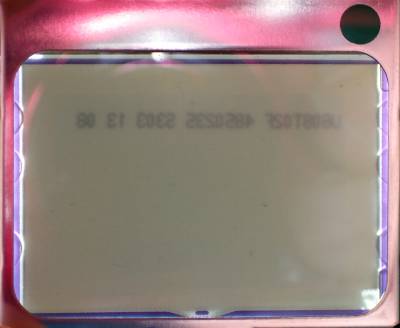

| LCD type | positive |
| Polarizer type | transflective |
| Columns | 84 pixels |
| Rows | 48 pixels |
| Char matrix | - |
| Driver IC | Philips PCD8544 |

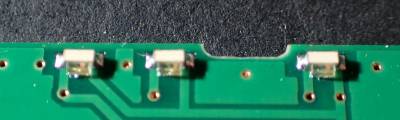

| Backlight | - |
| Arduino driver | |

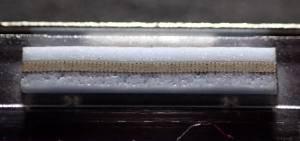

| Connector | elastomeric |
| Num Pins | 9 |
| Pin spacing | 0.044” |
| Module size | mm |

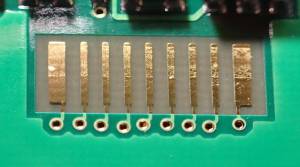

Connector layout, LCD front view

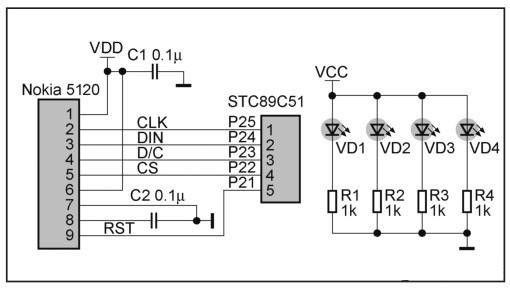

| Connector pin-out | Arduino test rig | |||
|---|---|---|---|---|
| Pin# | Label | Description | Pin | colour |
| 1 | Vdd | 2.7 - 3.3V | ||
| 2 | Clk | Clock | ||
| 3 | DIn | Data In | ||
| 4 | D/C | Data/Command | ||
| 5 | CS | Chip Select | ||
| 6 | Osc | External oscillator 1) | ||
| 7 | Gnd | Ground | ||
| 8 | Vout | 2) | ||
| 9 | Rst | Reset | ||
Additional info
Examples :
