LCD module data
Numeric
Character
Mixed
- ≡ Uniden FP203 ✘
- ≡ Uniden FP204 ✘
- ≡ VIP89Z G-Code ✘
Graphic
key: ≡ parallel, ↔ serial, ~ LVDS, _ unknown, ✘ discarded as not useful
| LCD Description | |
|---|---|
| Model | IXL2893L |
| Manufacturer | |
| Recovered from | Uniden FP204 phone |

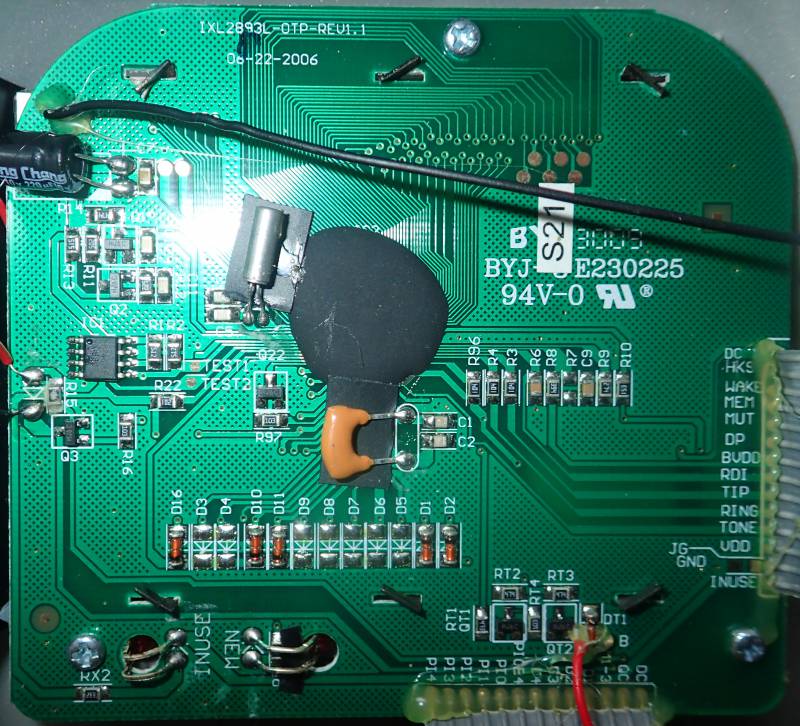

| Board IDs | BYJ-SE230225, 06-22-2006, IXL2893L-OTP-REV1.1 |
| LCD type | reflective |
| Polarizer type | positive |
| Digit Columns | 13 |
| Digit Rows | 1 1) |
| Alpha Columns | 16 |
| Alpha Rows | 1 |
| Char matrix | 5×5 |
| Driver IC | (CoB) |
| Backlight | - |
| Arduino driver | |
| Connector | single core ribbon |
| Num Pins | 14 |
| Pin spacing | “ |
| Connector pin-out | Arduino test rig | ||
|---|---|---|---|
| Pin# | Label | Description | Pin |
| 1 | |||
| 2 | |||
| 3 | |||
| 4 | |||
| 5 | |||
| 6 | |||
| 7 | |||
| 8 | |||
| 9 | |||
| 10 | |||
| 11 | |||
| 12 | |||
| 13 | |||
| 14 | |||
Examples :
1)
plus additional row of mixed symbols and digits
