| LCD Description | |
|---|---|

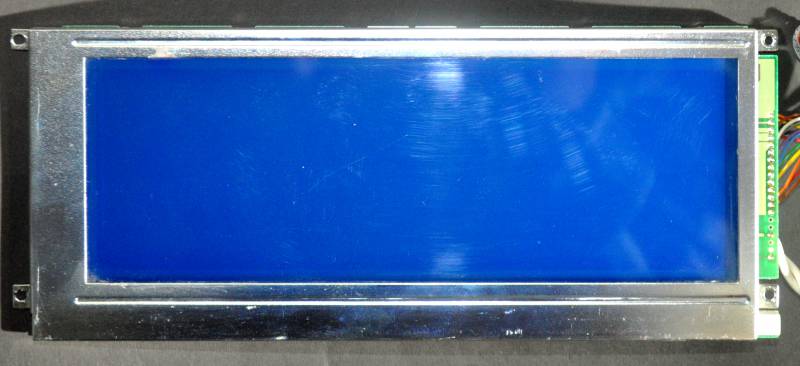

| Model | S-11538 |
| Manufacturer | |
| Recovered from | Fonix FP-40 |

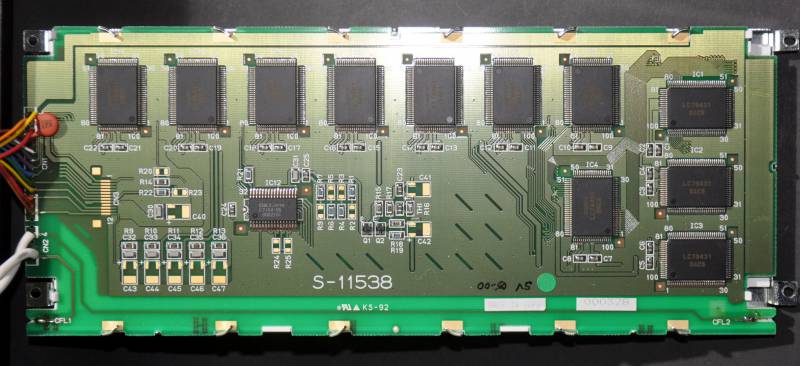

| Board IDs | S-11538 KS-92 |
| LCD type | positive |
| Polarizer type | transflective |
| Columns | 640 pixels |
| Rows | 200 pixels |
| Char matrix | - |
| Driver IC | LC79401 x8, LC79431 x3, C7154-05 |
| Backlight | yes |
| Arduino driver | |
| Connector | |
| Num Pins | 14 |
| Pin spacing | “ |
| Module size | mm |
| Connector pin-out | |||
|---|---|---|---|
| Pin# | IC pin | Label | colour |
| 1 | brown | ||
| 2 | red | ||
| 3 | orange | ||
| 4 | yellow | ||
| 5 | green | ||
| 6 | blue | ||
| 7 | purple | ||
| 8 | grey | ||
| 9 | white | ||
| 10 | black | ||
| 11 | brown | ||
| 12 | red | ||
| 13 | orange | ||
| 14 | yellow | ||
Examples :
