| LCD Description | |
|---|---|
| Model | L303646, b3F208 |
| Manufacturer | |

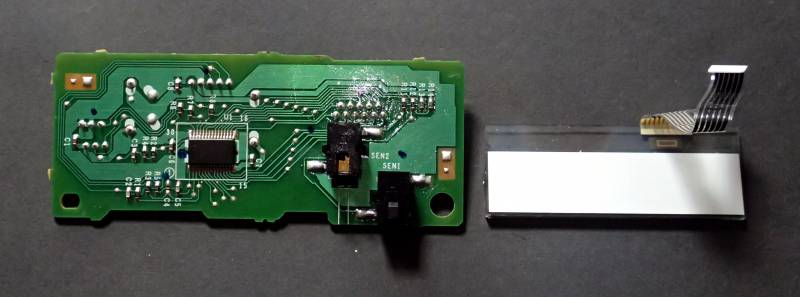

| Recovered from | Brother Fax-727 fax |

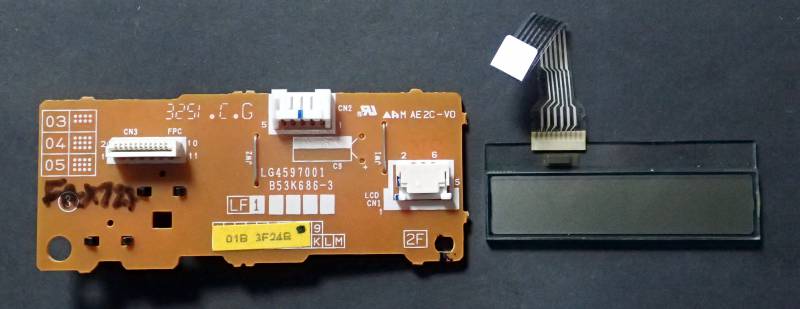

| Board IDs | B53K686-3, LG4597001, L303646 |
| LCD type | positive |
| Polarizer type | reflective |
| Columns | 16 |
| Rows | 1 |
| Char matrix | 5×7 |
| Driver IC | |
| Backlight | - |
| Arduino driver | |
| Connector | PCB flex cable |
| Num Pins | 6 |
| Pin spacing | 1mm |
| Module size | mm |
| Connector pin-out | Arduino test rig | ||
|---|---|---|---|
| Pin# | Label | Pin | colour |
| 1 | |||
| 2 | |||
| 3 | |||
| 4 | |||
| 5 | |||
| 6 | |||
Examples :
