Premium DECT3135

LCD Description
ModelPremium DECT3135+2
ManufacturerUniden
Recovered fromUniden Premium DECT3135+2 phone
Board IDsPE-2474CA
LCD typepositive
Polarizer typetransflective
Columns16
Rows4 1)
Char matrix5×8
Driver IC3.3V, SPI?
Backlightorange
Arduino driver
ConnectorPCB flex cable
Num Pins10
Pin spacing1mm
Connector pin-out Arduino test rig
Pin#IC pinLabelPincolour
1
2
3
4
5cap
6cap
7cap
8cap
9GND
10




Examples :

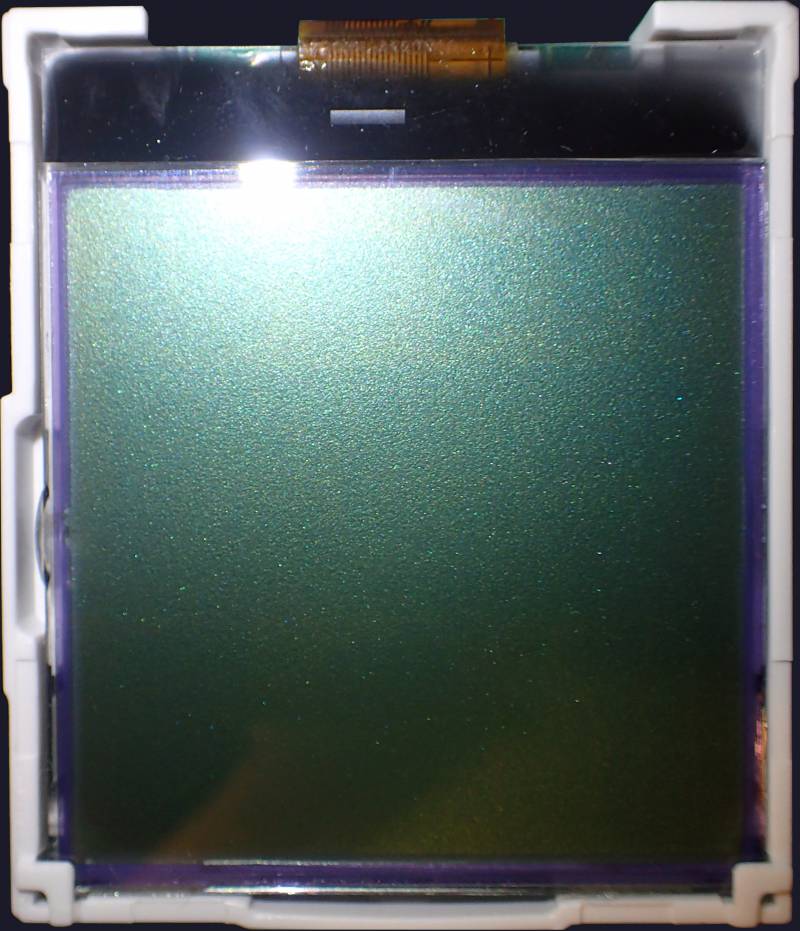

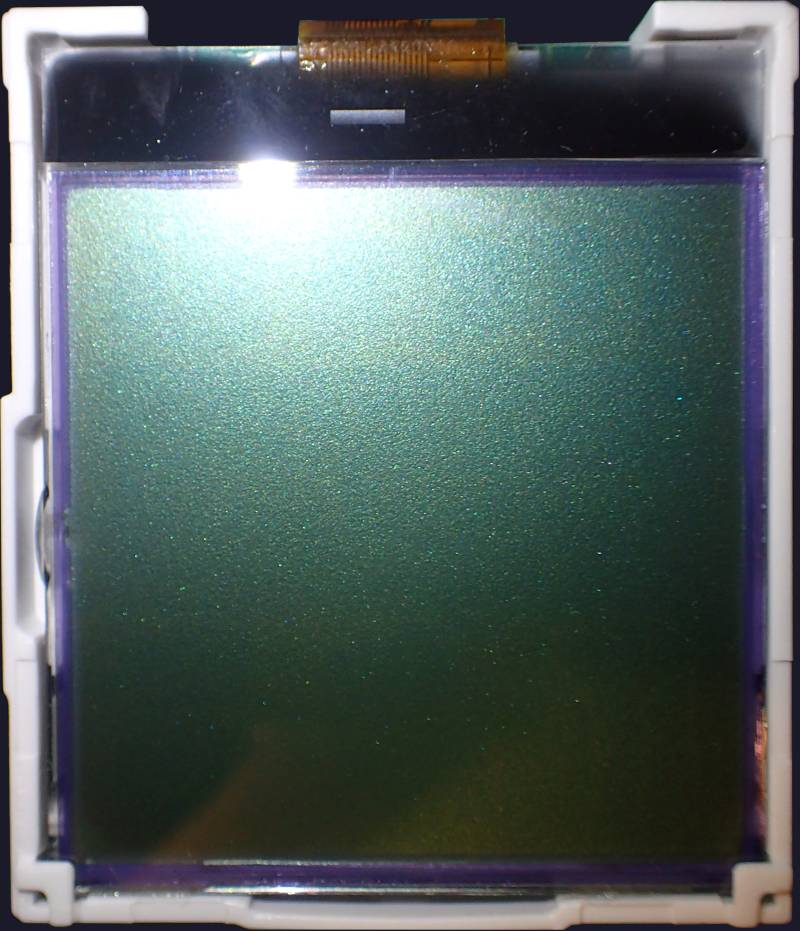

Premium DECT3135 front

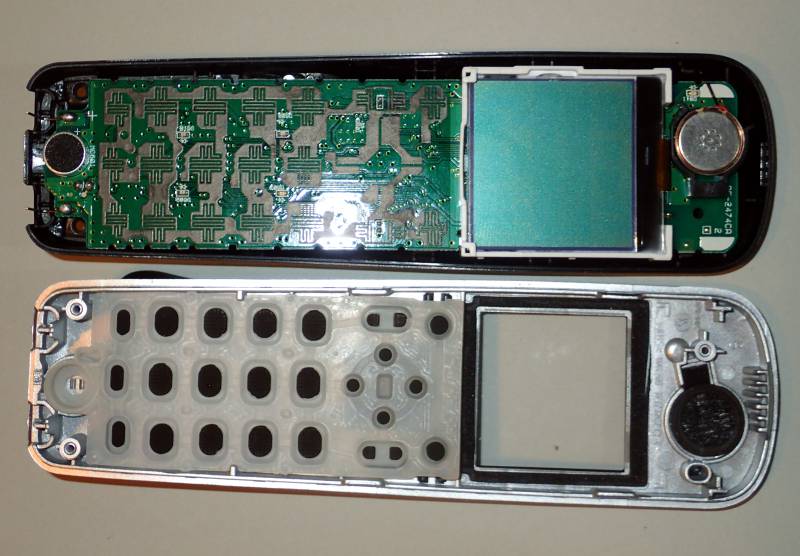

Uniden Premuim DECT3135 overview with board

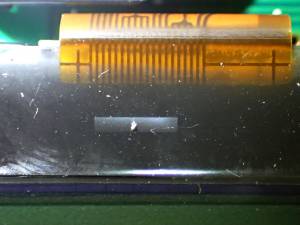

Premium DECT3135 connector

Premium DECT3135 chip

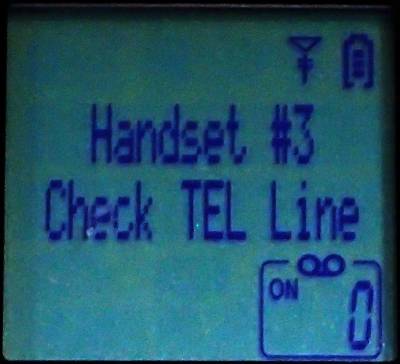

Premium DECT3135 examples

1) 2 rows of digits and icons, 2 rows of alpha-numeric characters
