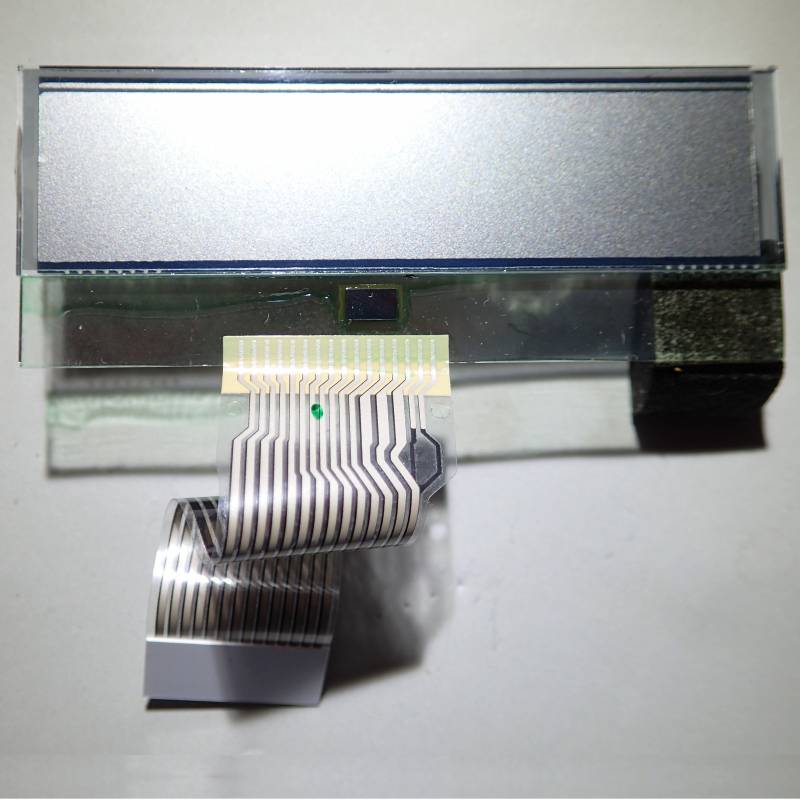

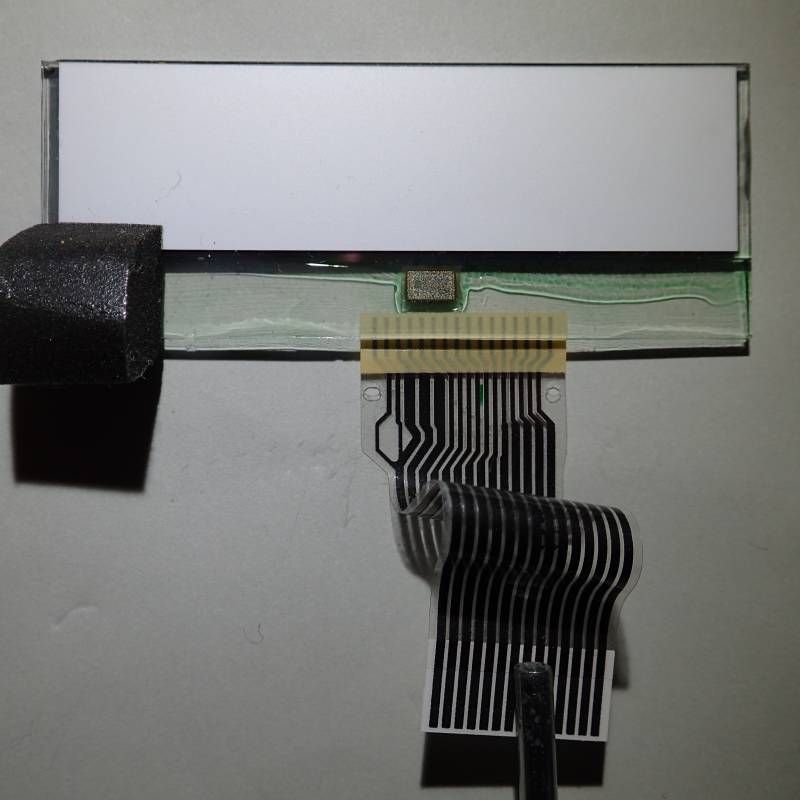

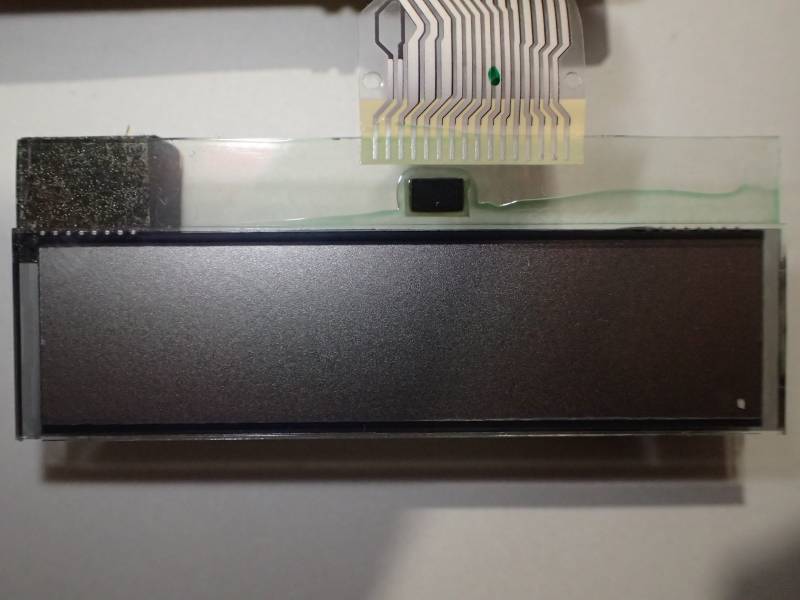

| LCD Description | |
|---|---|
| Model | 8A348 |
| Manufacturer | Brother |
| Recovered from | Brother FAX-520MC 1) |

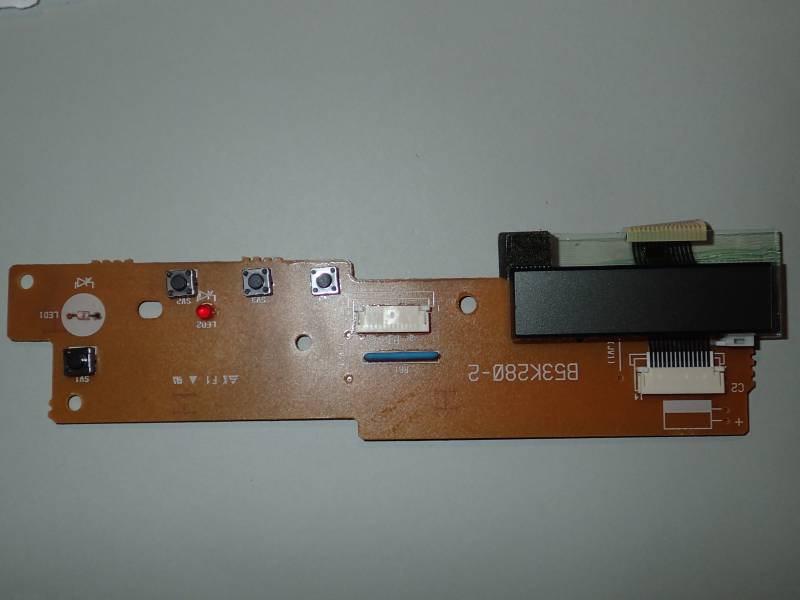

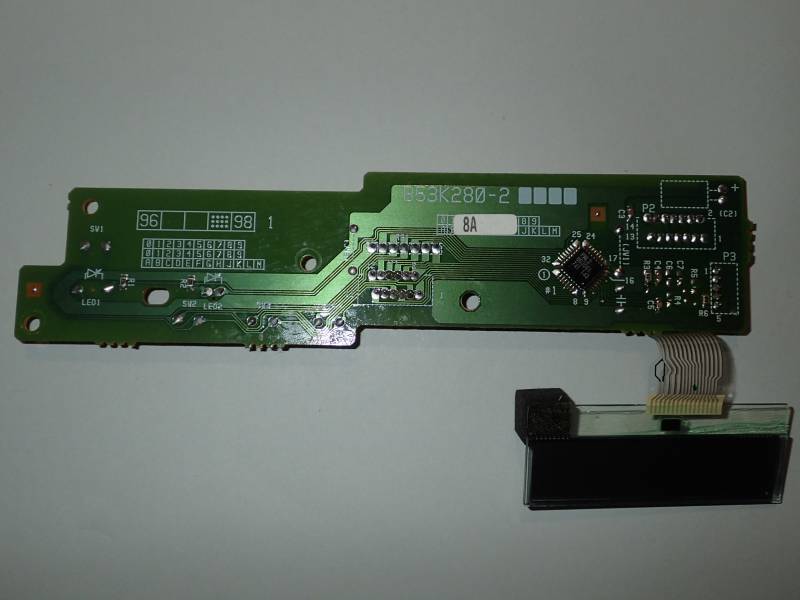

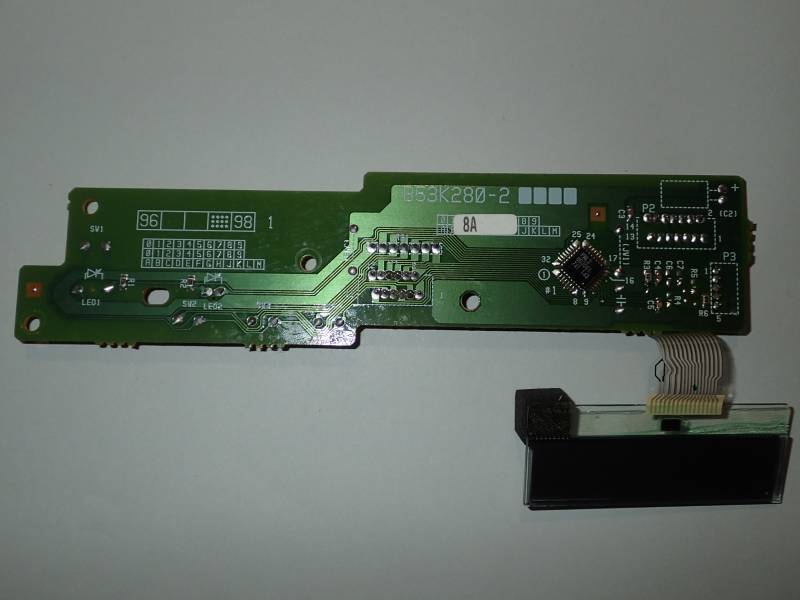

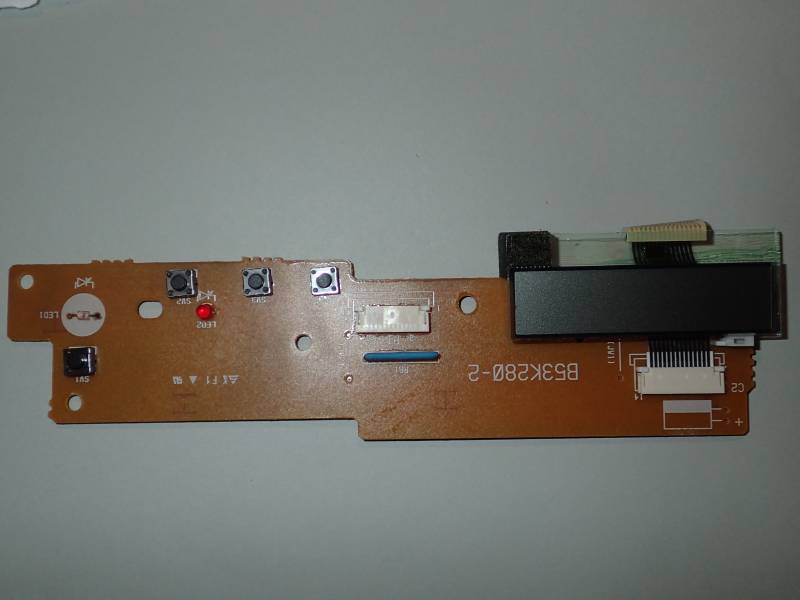

| Board IDs | B53K280-2 |
| LCD type | positive |
| Polarizer type | reflective |
| Columns | 16 2) |
| Rows | 1 |
| Char matrix | 5×8 |

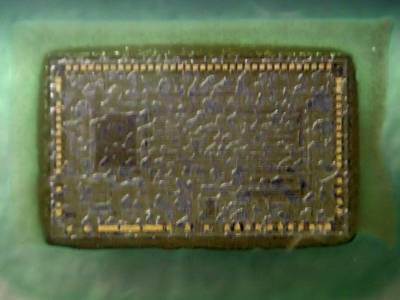

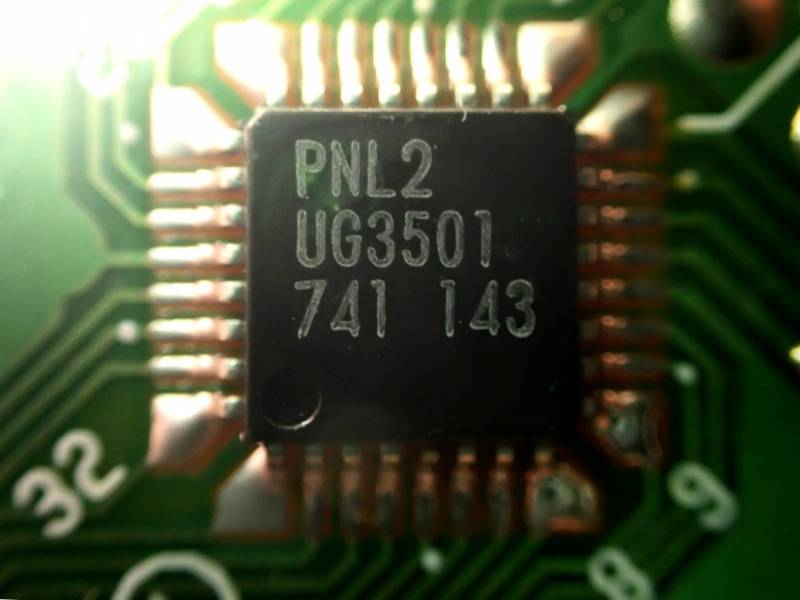

| Driver IC | Hitachi HD44780 compatible (CoG) |
| Backlight | - |
| Arduino driver | LiquidCrystal.h |
| Connector | PCB flex cable |
| Num Pins | 14 |
| Pin spacing | 0.04” |
| Connector pin-out | Arduino test rig | ||
|---|---|---|---|
| Pin# | Label | Description | Pin |
| 1 | D7 | d7 | |
| 2 | D6 | d6 | |
| 3 | D5 | d5 | |
| 4 | D4 | d4 | |
| 5 | D3 | ||
| 6 | D2 | ||
| 7 | D1 | ||
| 8 | D0 | ||
| 9 | E | d9 | |
| 10 | R/W | Gnd | |
| 11 | RS | d8 | |
| 12 | VO | Contrast adjustment 3) | |
| 13 | +5V | +5V | |
| 14 | GND | Gnd | |

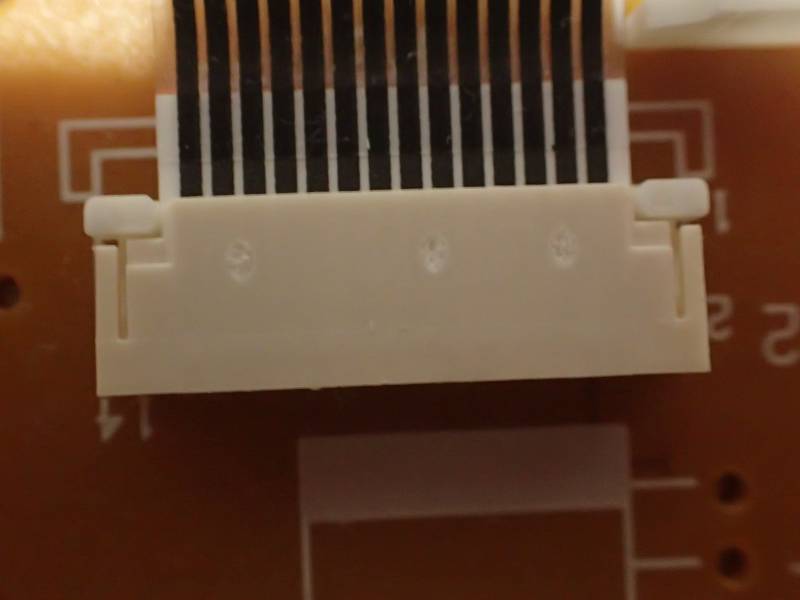

| Connector to flex PCB cable to LCD module | |||||
|---|---|---|---|---|---|
| Arduino test rig 4) | |||||
| Label | Pin# | Pin# | Label | Pin | |
| 1 | D7 | d7 | |||
| D6 | 2 | d6 | |||
| 3 | D5 | d5 | |||
| D4 | 4 | d4 | |||
| 5 | D3 | ||||
| D2 | 6 | ||||
| 7 | D1 | ||||
| D0 | 8 | ||||
| 9 | E | d9 | |||
| R/W | 10 | Gnd | |||
| 11 | RS | d8 | |||
| VO | 12 | Contrast adjustment 5) | |||
| 13 | +5V | +5V | |||
| GND | 14 | Gnd | |||
Same character set as b53k2631
- 8A348 LCD schematic:
Examples :
