DG12864

LCD Description
ModelDG12864-19 S2FBLY
ManufacturerData Vision
Recovered fromXerox MX PRO-UIB Print server display
Board IDsPhico D-0 94V-0, P77-3, Data International Co. Ltd
LCD typepositive
Polarizer typetransflective
Columns128
Rows64
Char matrix-
Driver IC2x Samsung S6B0108A01-00 1),
1x Samsung S6B0107B01-00 2)
BacklightYellow-green LED
Arduino driveropenGLCD.h
Connectorpin header
Num Pins20
Pin spacing0.1”
Connector pin-out Arduino test rig
Pin#LabelDescriptionlMeasuredPin
1VssGround (0V)0VGND
2VddPower supply for Logic circuit (+)+5.12V+5V
3V0Power supply for LCD-8.25V3)
4RSH: Instruction L: Data0VA3
5R/WRead/Write0VA2
6EEnable Signal0VA4
7DB0Data Bus Line0V8
8DB1Data Bus Line0V9
9DB2Data Bus Line0V10
10DB3Data Bus Line0V11
11DB4Data Bus Line0V4
12DB5Data Bus Line0V5
13DB6Data Bus Line0V6
14DB7Data Bus Line0V7
15CS1Chip Selection For IC10VA0
16CS2Chip Selection For IC20VA1
17/RESReset Active “L”+4.69V+5V
18VeeDC/DC generator output-11.47Vexternal -12V 4)
19LED 1Power supply for LED+9.2Vexternal +20V
20LED 2Power supply for LED-11.48VGND

LED backlight power supply 20V at 55mA.

DG12864-19 S2FBLY 5)
DGGraphic LCM
128Columns
64Rows
19Series number
S2Silver Gray, STN
FTransflective
BBottom view (6 o'clock)
LLED
YYellow-green (EL, LED)



Datasheets

Examples :

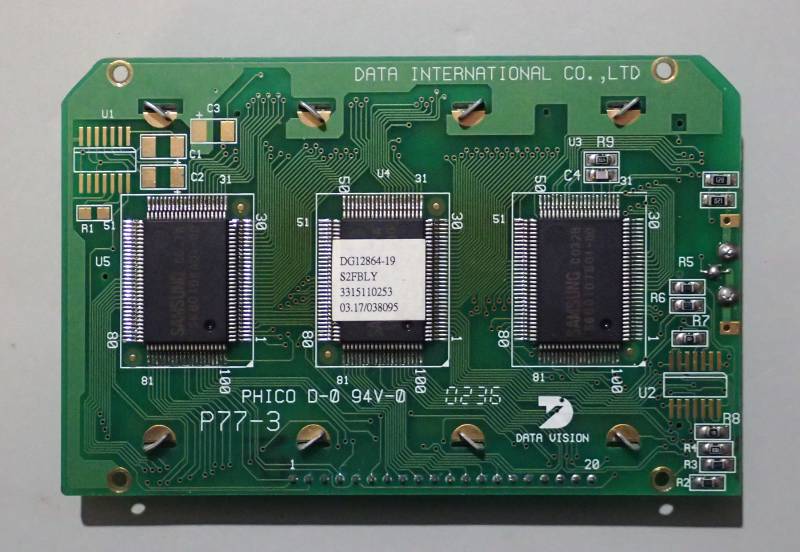

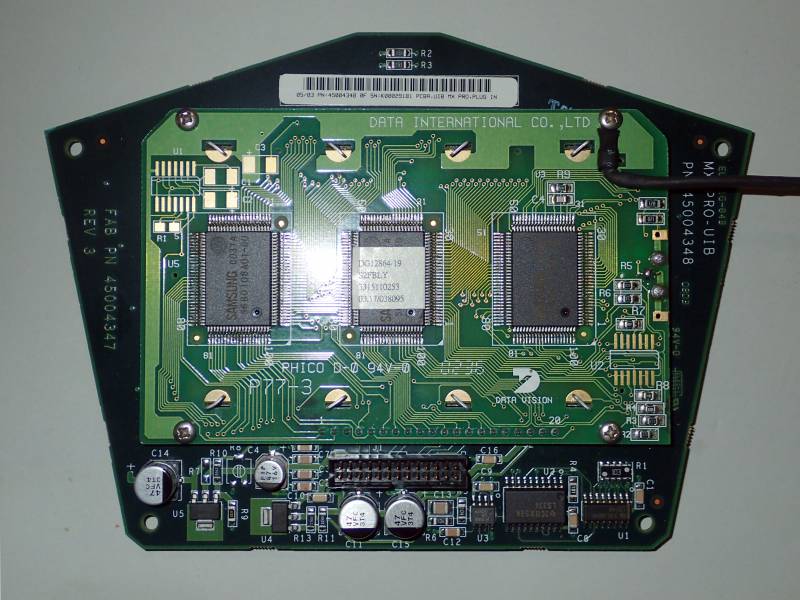

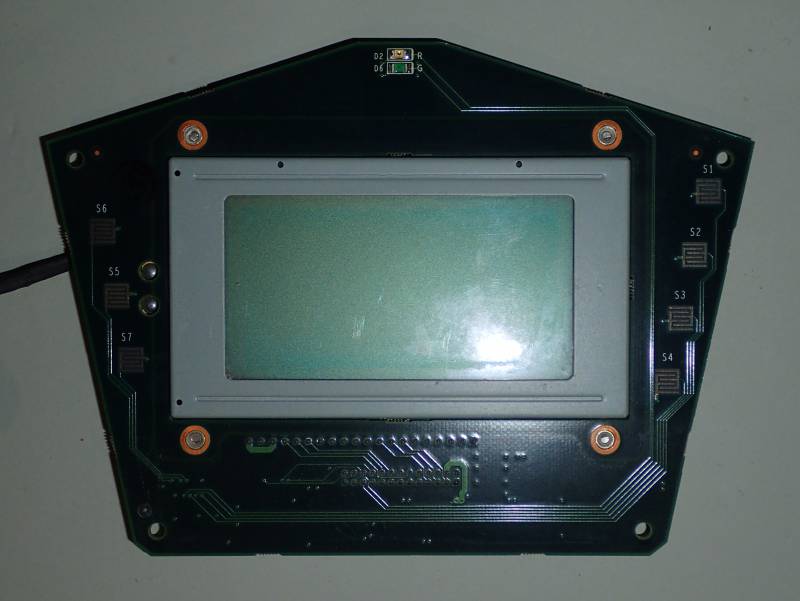

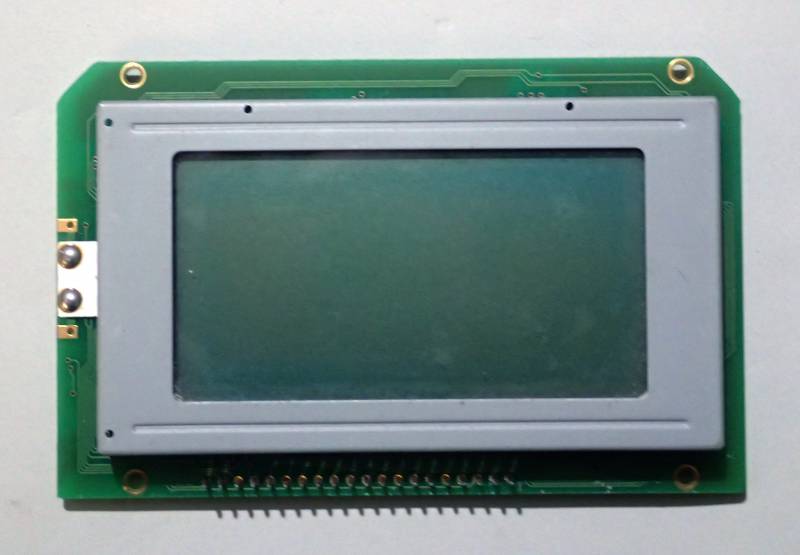

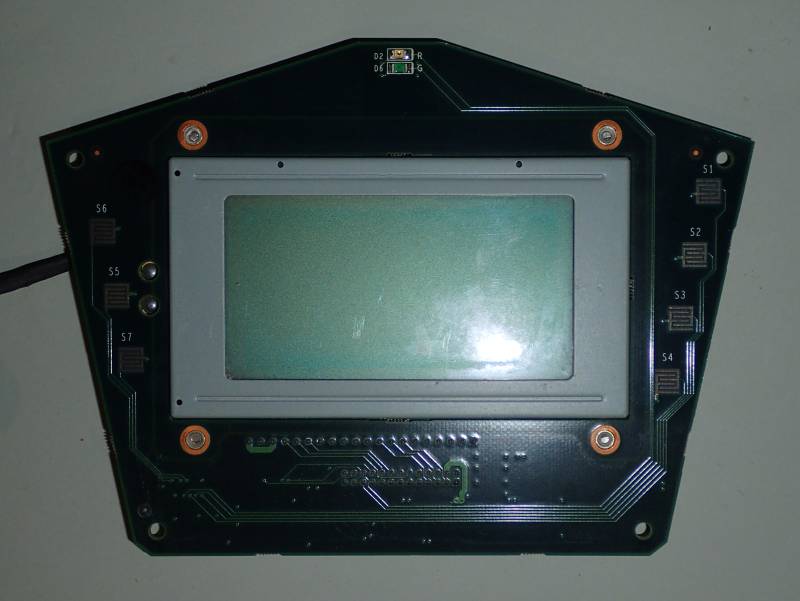

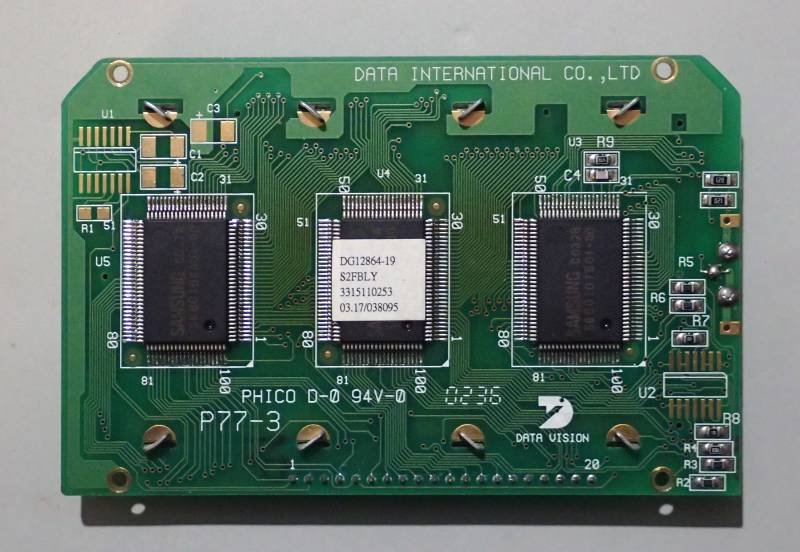

DG12864 front DG12864 back DG12864 overview with board DG12864 overview with board

DG12864 connector

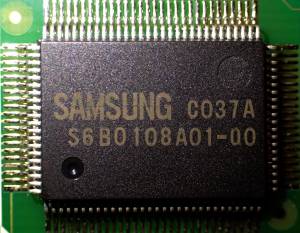

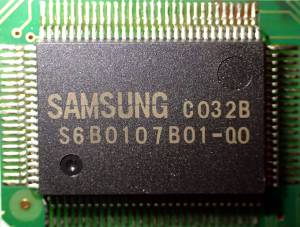

DG12864 chip DG12864 chip

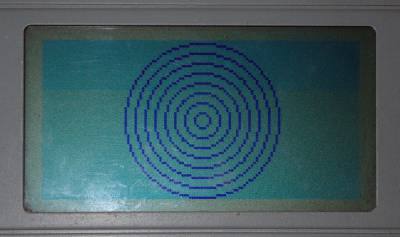

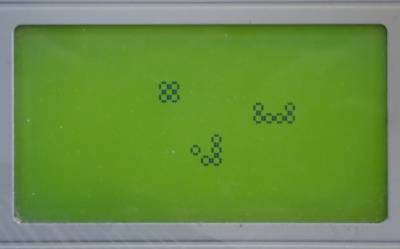

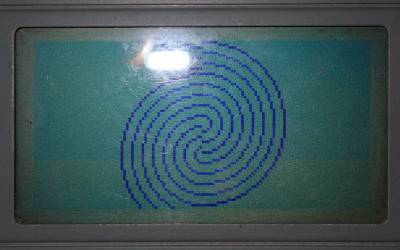

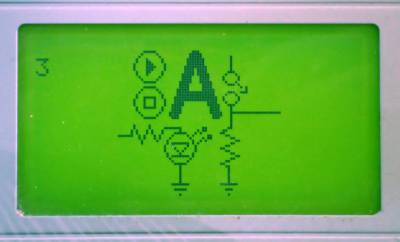

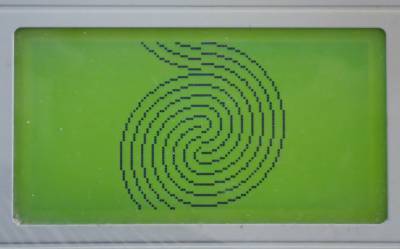

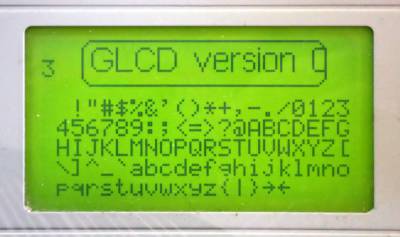

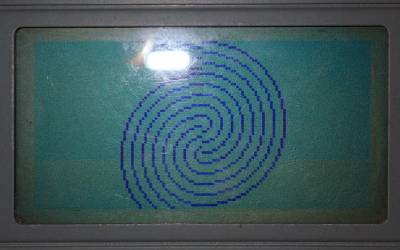

DG12864 examples
DG12864 examples DG12864 examples
DG12864 examples
DG12864 examples
DG12864 examples

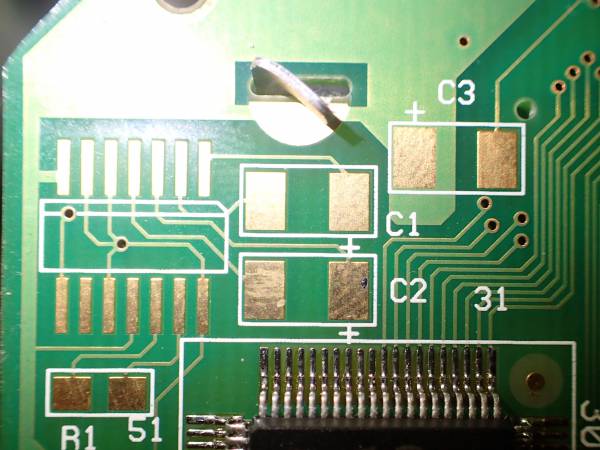

DG12864 pcb
DC-DC converter not installed

References

3) connect to potentiometer between Vee and GND
4) no built in DC-DC converter in this example, so no negative supply output available
