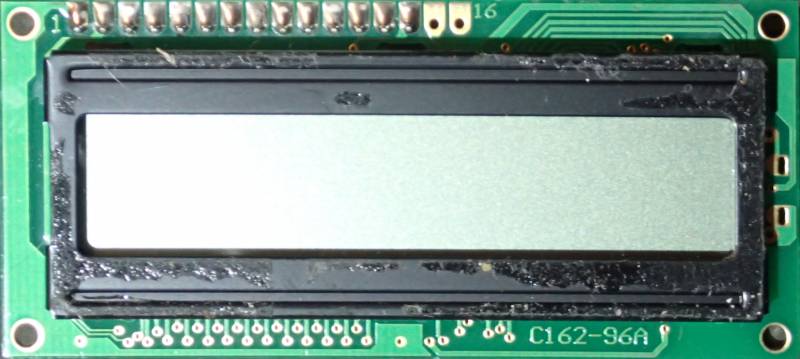

LCD Description
Model	VB16202P-F-35
Manufacturer	Hyundai LCD
Recovered from	Paradyne 3920-A1-412

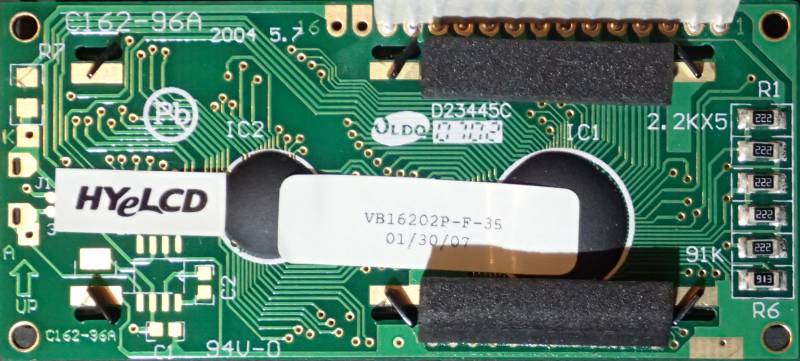

Board IDs	C162-96A, HYeLCD, OLDQ, VB16202P-F-35, D23445C
LCD type	positive
Polarizer type	reflective
Columns	16
Rows	2

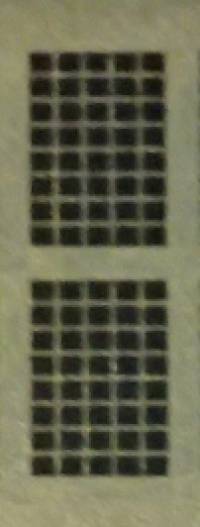

Char matrix	5×8
Driver IC	Hitachi HD44780 compatible (covered in epoxy)¹⁾
Backlight	-
Arduino driver	LiquidCrystal.h
Connector	pin header
Num Pins	16
Pin spacing	0.1”
Module size	mm

Connector pin-out			Arduino test rig
Pin#	Label	Description	Pin
1	Vss	Ground	GND
2	Vdd	Power supply for logic	+5V
3	Vo	Contrast adjustment	negative LCD drive²⁾
4	RS	Data/Instruction select signal	8
5	R/W	Read/Write select signal	GND
6	E	Enable signal	9
7	DB0	Data bus line
8	DB1	Data bus line
9	DB2	Data bus line
10	DB3	Data bus line
11	DB4	Data bus line	4
12	DB5	Data bus line	5
13	DB6	Data bus line	6
14	DB7	Data bus line	7
15	A
16	K
