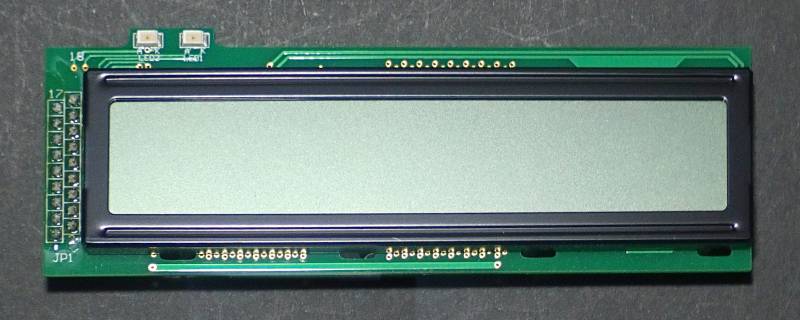

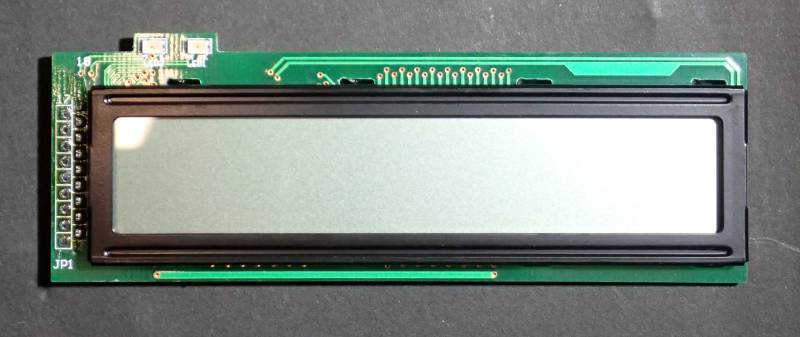

| LCD Description | |
|---|---|

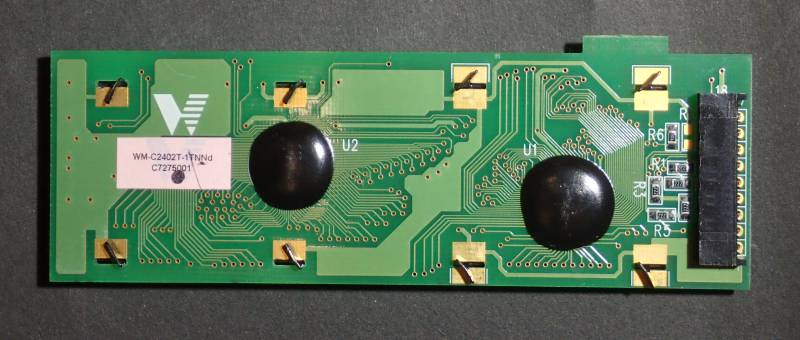

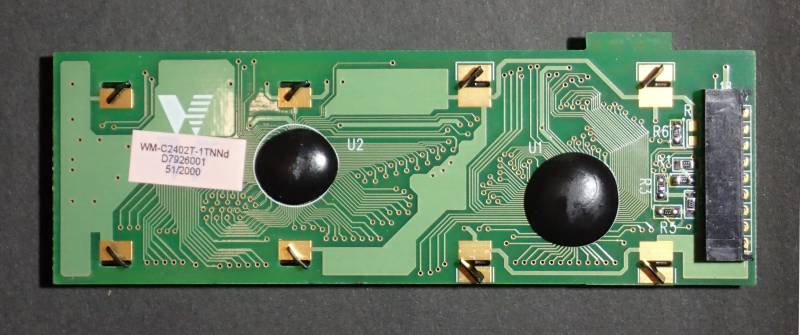

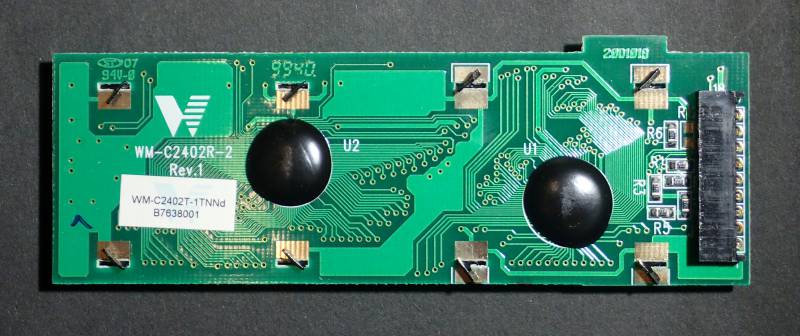

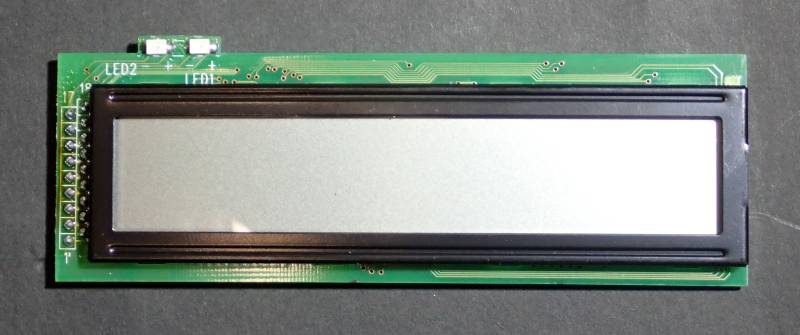

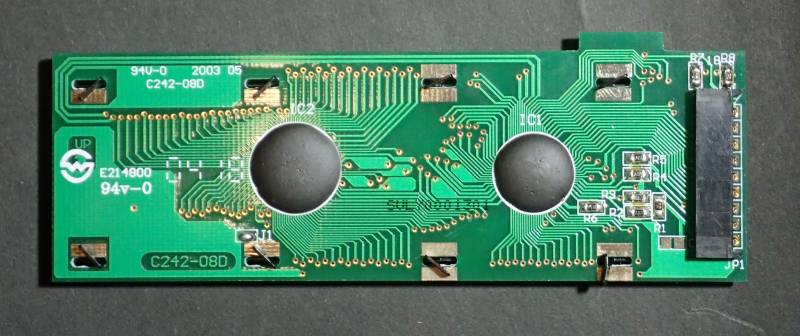

| Model | WM-C2402T-1TNNd, WM-C2402R-2, C242-08D1) |
| Manufacturer | Wintek |

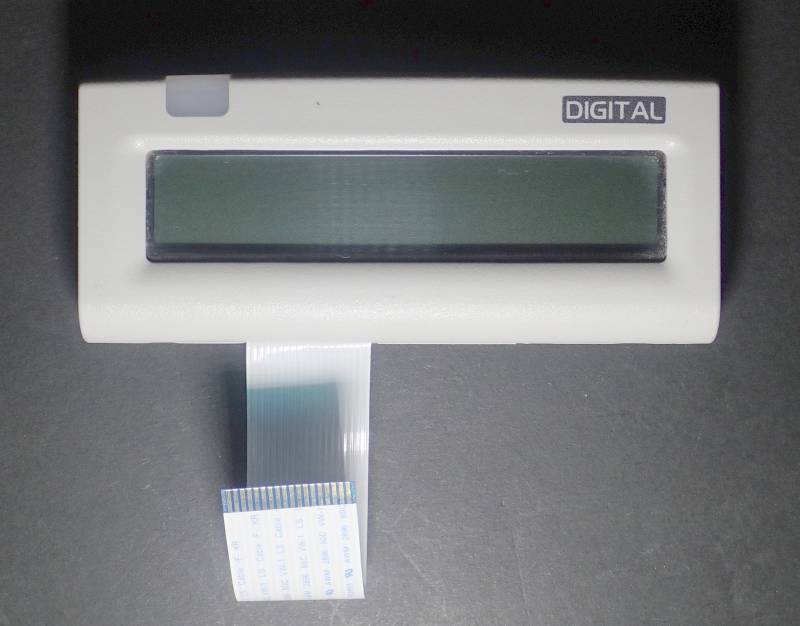

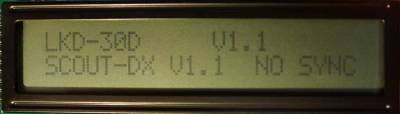

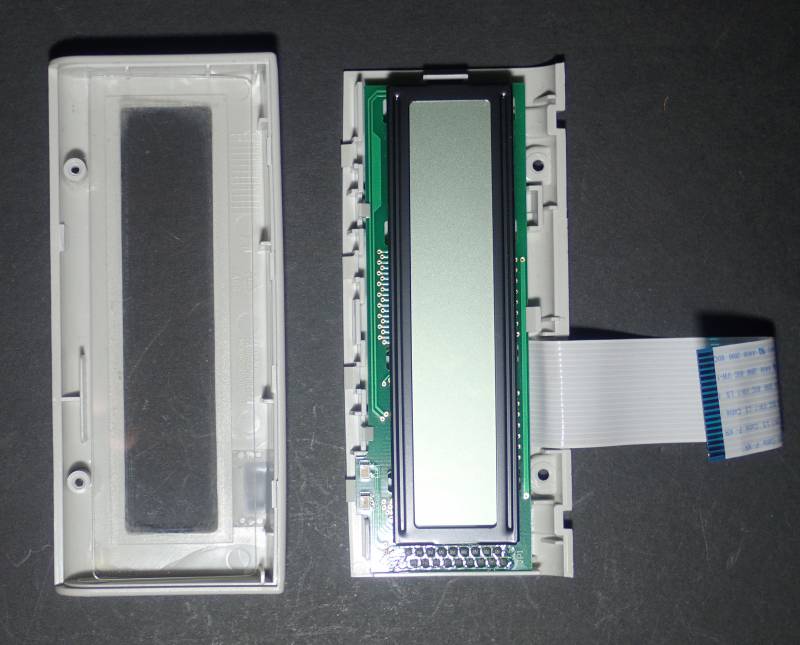

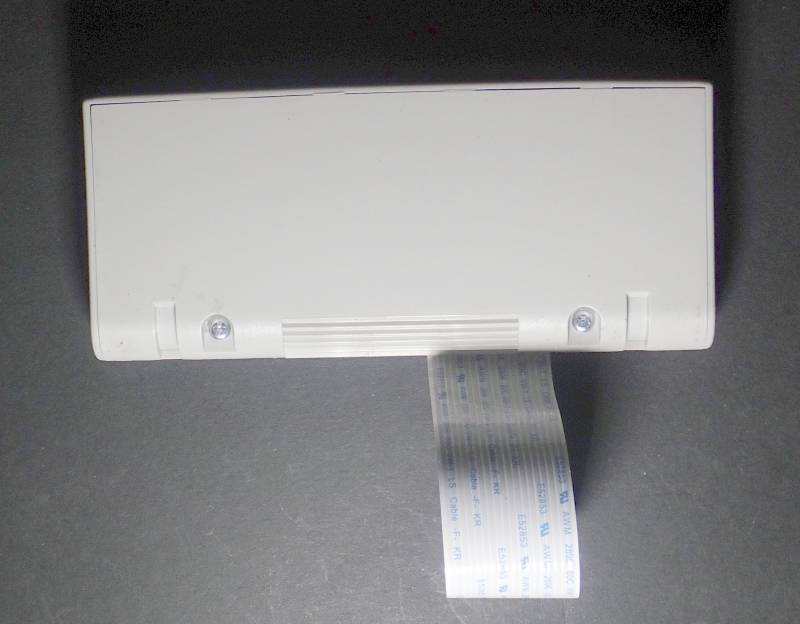

| Recovered from | LG aria LKD 8DS phone, LG-Nortel LKD 30D phone |
| Board IDs | |
| LCD type | positive |
| Polarizer type | reflective |
| Columns | 24 |
| Rows | 2 |
| Char matrix | 5×8 |
| Driver IC | ST7066U-0A |
| Backlight | - |
| Arduino driver | |

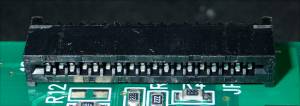

| Connector | PCB flex socket |
| Num Pins | 18 |
| Pin spacing | 1.25mm |
| Module size | mm |

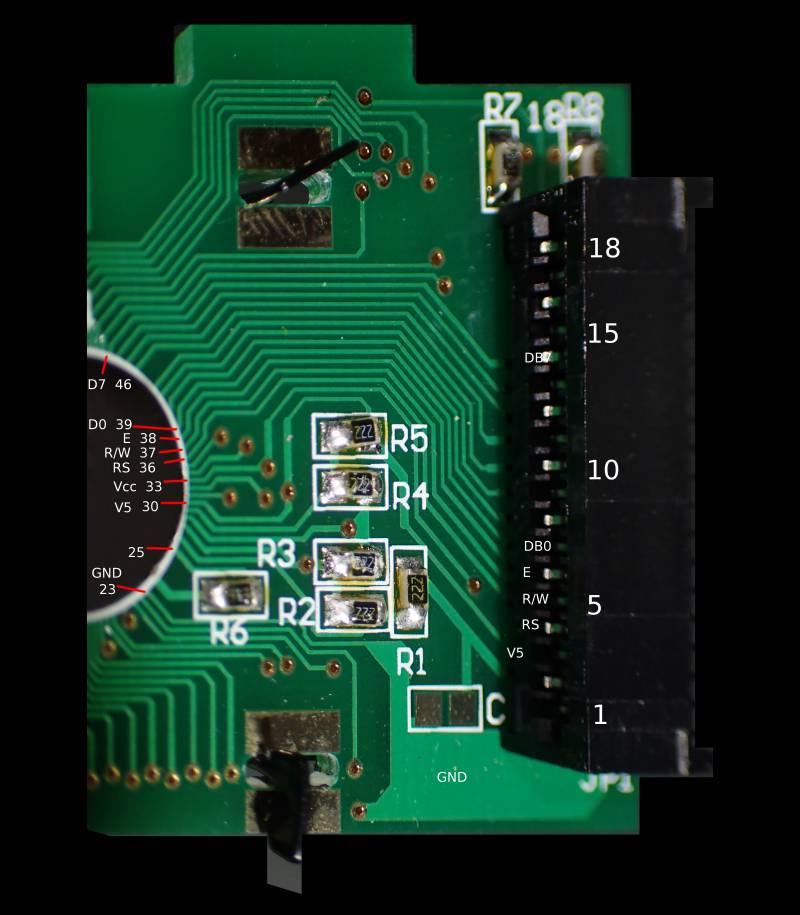

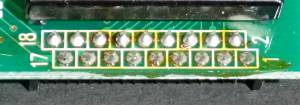

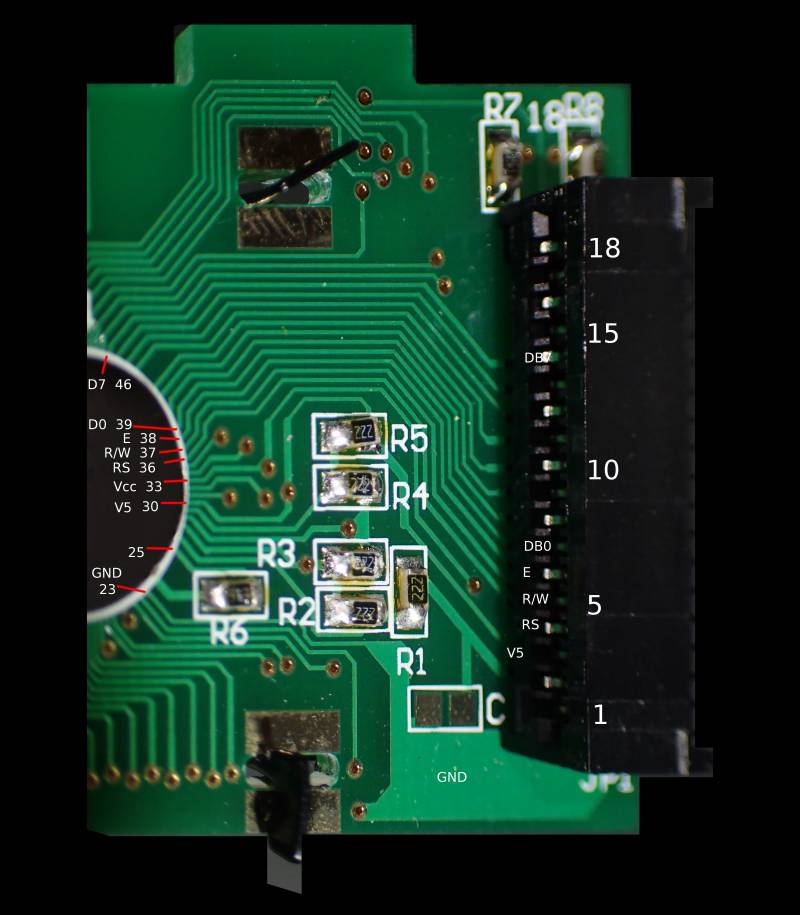

| Connector pin-out | ||||
|---|---|---|---|---|
| Pin# | Ω to GND | Label | ||
| 1 | 0.0k | GND | ||
| 2 | 4.8k | Vdd | +5V | |
| 3 | 17.6k | Vo | ||
| 4 | 7.4k | RS | ||
| 5 | 7.4k | R/W | ||
| 6 | 7.4k | E | ||
| 7 | 6.3k | DB0 | ||
| 8 | 6.3k | DB1 | ||
| 9 | 6.3k | DB2 | ||
| 10 | 6.3k | DB3 | ||
| 11 | 6.3k | DB4 | ||
| 12 | 6.3k | DB5 | ||
| 13 | 6.3k | DB6 | ||
| 14 | 6.3k | DB7 | ||

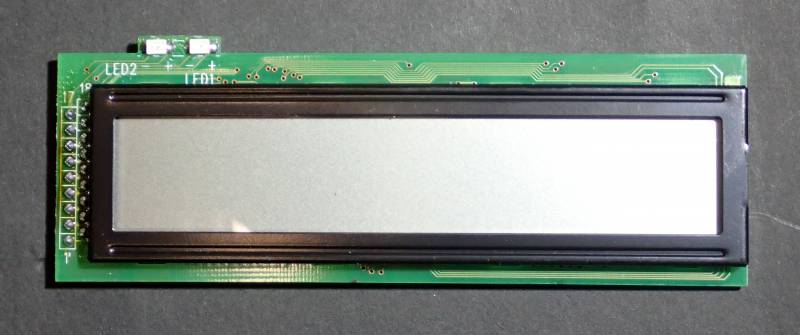

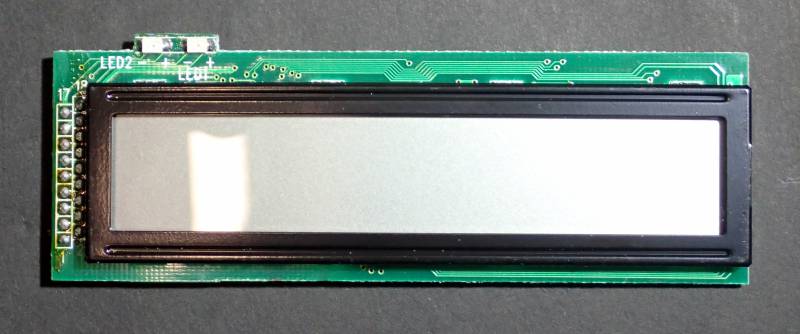

| 15 | LED1 A | |||
| 16 | LED1 K | |||
| 17 | LED2 A | |||
| 18 | LED2 K | |||
Same pinout as NG LDP-7024D

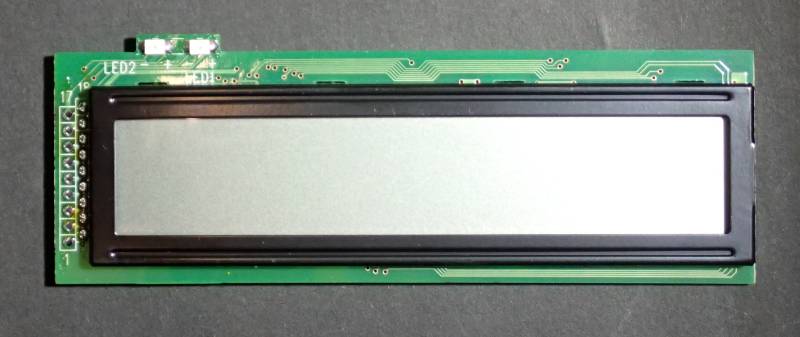

Examples :
1)

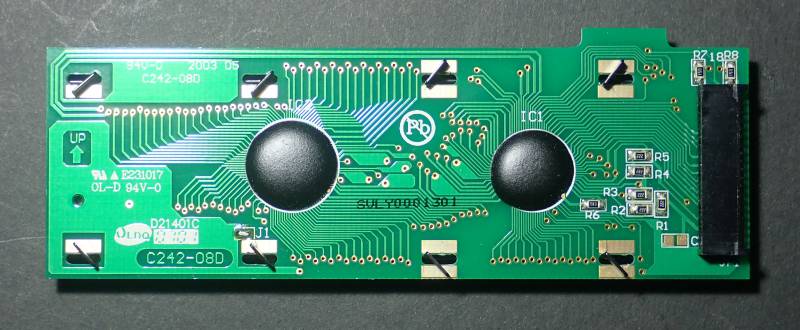

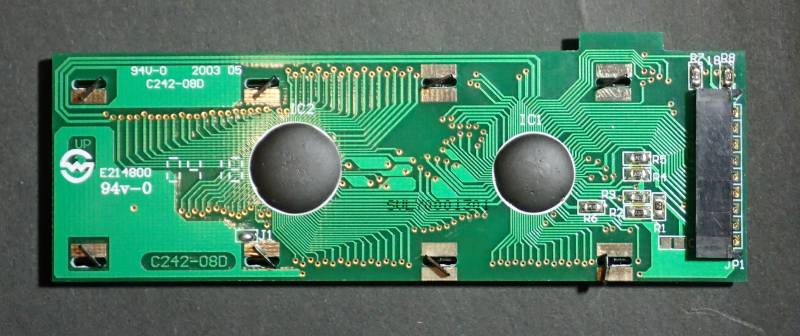

different manufacturer, same pinout
