| LCD Description | |
|---|---|

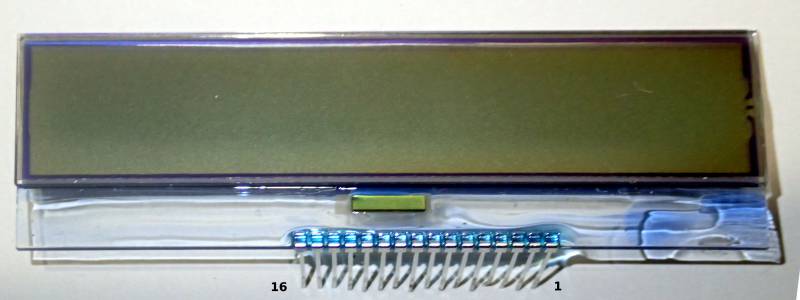

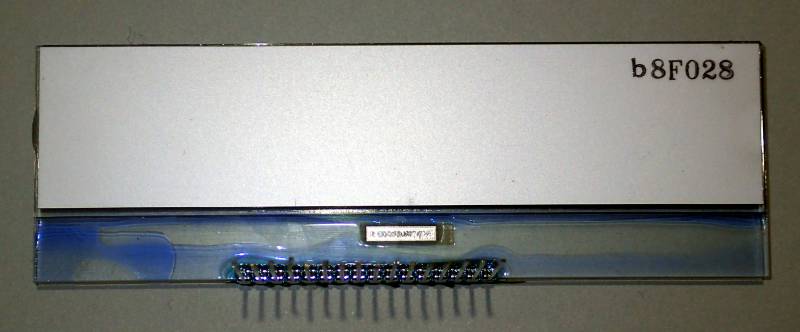

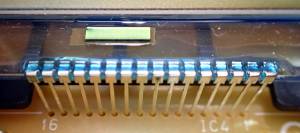

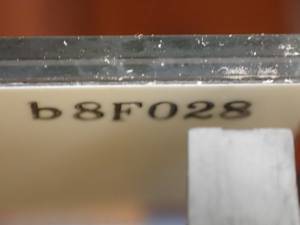

| Model | LMP202C10-FR, b8F028 |
| Manufacturer | |

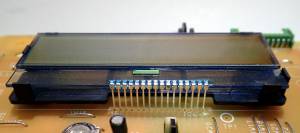

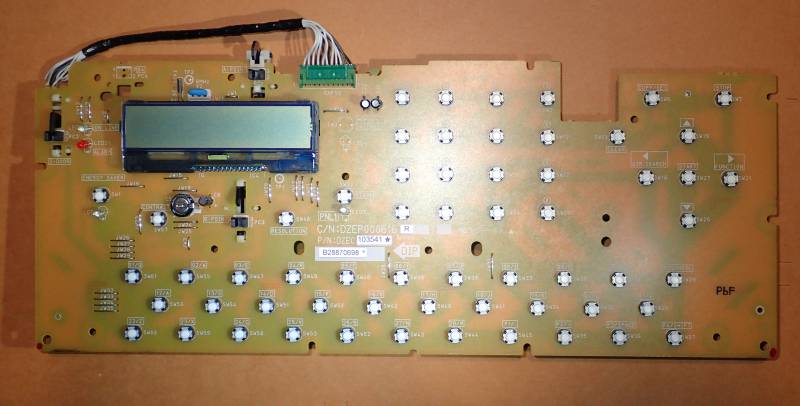

| Recovered from | Panasonic UF6100 Fax 1) |
| Board IDs | DZEP000616, DZEC103541, B28870698 |
| LCD type | positive |
| Polarizer type | reflective |
| Columns | 20 |
| Rows | 2 |
| Char matrix | 5×7 |
| Driver IC | Hitachi HD44780 compatible (CoG) |
| Backlight | - |
| Arduino driver | LiquidCrystal.h |

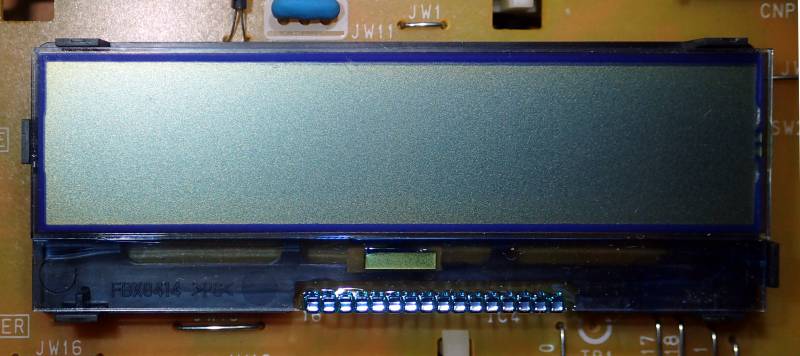

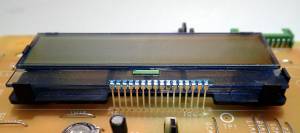

| Connector | pins |
| Num Pins | 16 |
| Pin spacing | 0.07” |
| Connector pin-out | Arduino test rig 2) | |||
|---|---|---|---|---|
| Pin# | IC pin | Label | Pin | colour |
| 1 | RS | 8 | Grey | |
| 2 | R/W | GND | Brown | |
| 3 | E | 9 | Purple | |
| 4 | DB0 | |||
| 5 | DB1 | |||
| 6 | DB2 | |||
| 7 | DB3 | |||
| 8 | DB4 | 4 | Blue | |
| 9 | DB5 | 5 | Green | |
| 10 | DB6 | 6 | Yellow | |
| 11 | DB7 | 7 | Orange | |
| 12 | VSS (GND) | GND | Black | |
| 13 | VDD (+5V) | +5V | White | |
| 14 | VIN (+5V) | +5V | Red | |
| 15 | V5 | 3) | Black | |
| 16 | GND | GND | ||

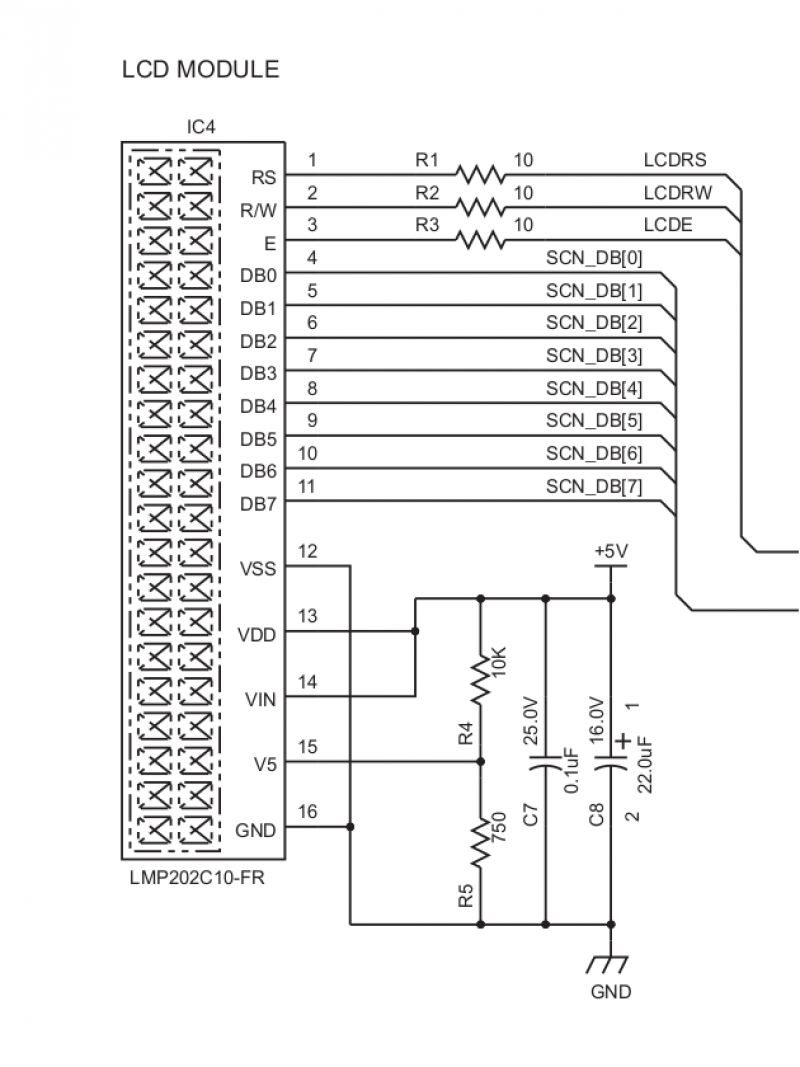

- LMP202C10-FR LCD schematic:
Examples :
