| LCD Description | |
|---|---|
| Model | Nokia 3310 |
| Manufacturer | Philips |

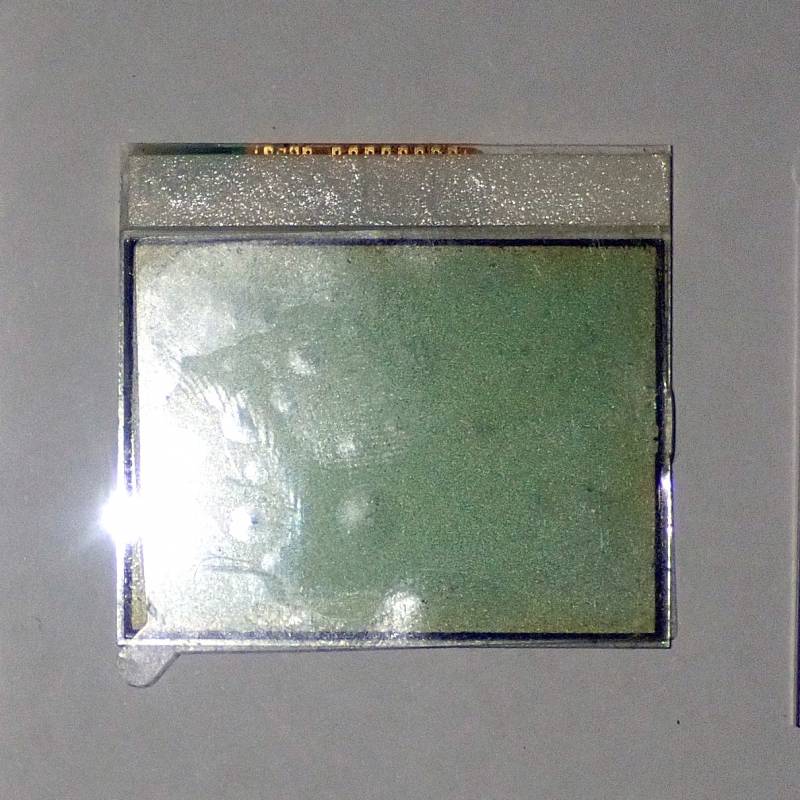

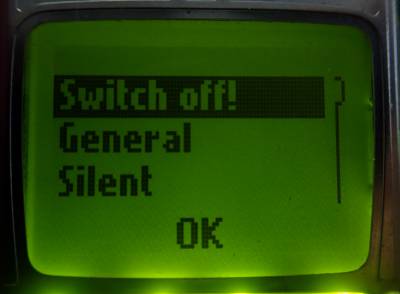

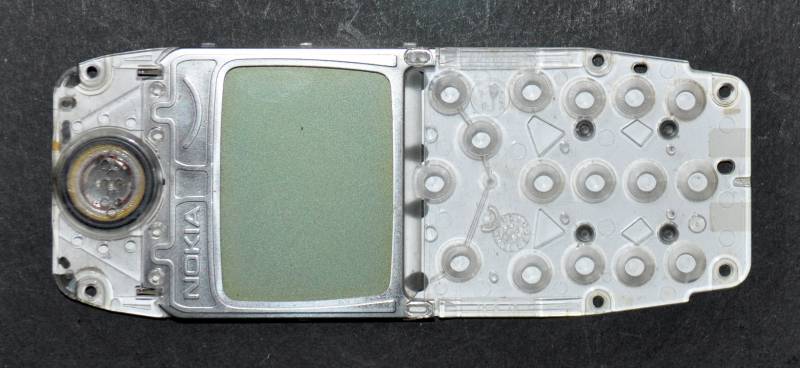

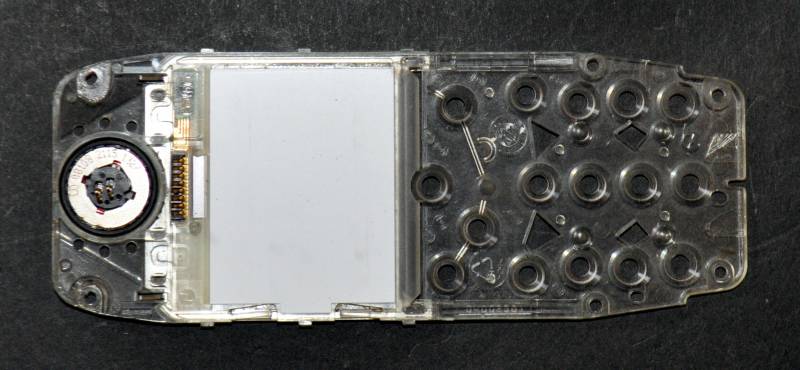

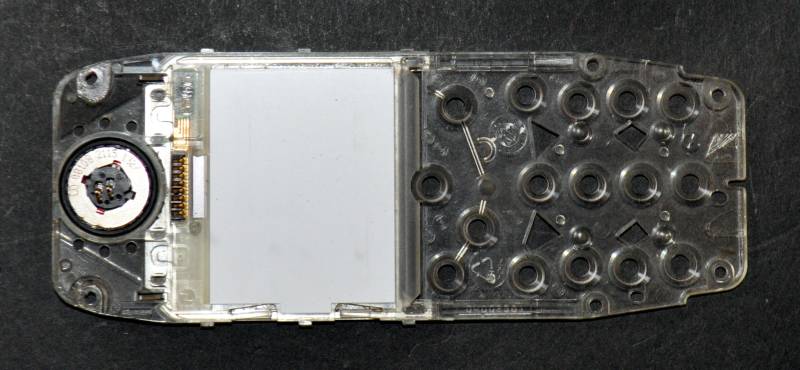

| Recovered from | Nokia 3310 cellphone |
| Board IDs | |
| LCD type | positive |
| Polarizer type | transflective |
| Columns | 84 pixels |
| Rows | 48 pixels |
| Char matrix | - |
| Driver IC | Philips PCD8544 |
| Backlight | - |
| Arduino driver | U8g2lib.h |
| Connector | pins |
| Num Pins | 8 |
| Pin spacing | 0.044” |
| Module size | mm |
Connector layout, LCD front view
| LCD pinout | ||
|---|---|---|
| Pin | Label | Description |
| 1 | VDD | 2.7V - 3.3V |
| 2 | CLK | Clock |
| 3 | SDIN | Data in |
| 4 | D/C | Data or command |
| 5 | SCE | Chip select |
| 6 | VSS | Ground |
| 7 | VLCD | DC/DC voltage converter |
| 8 | RES | Reset |
| 9 | Cap1 | |
| 10 | Cap1 | |
| 11 | Cap2 | |
| 12 | Cap2 | |

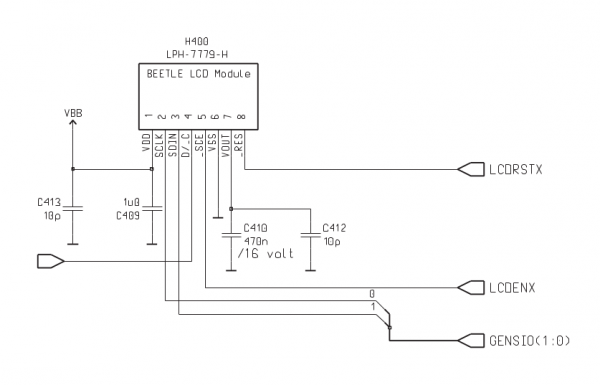

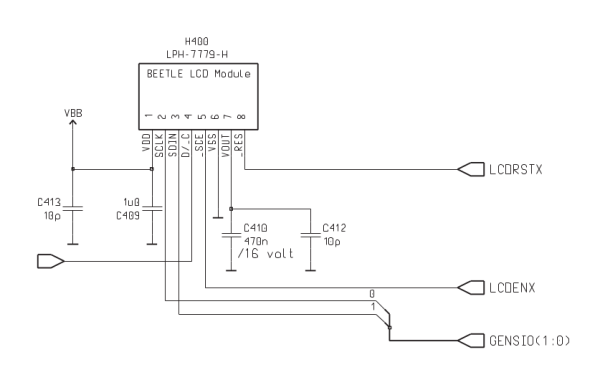

- Nokia 3310 LCD schematic:

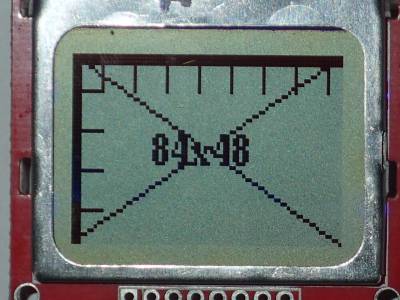

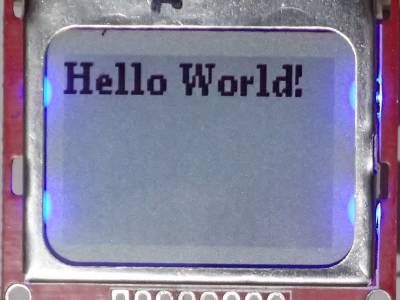

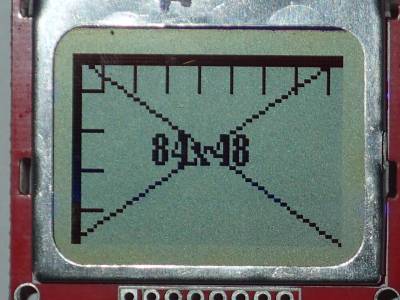

Examples :

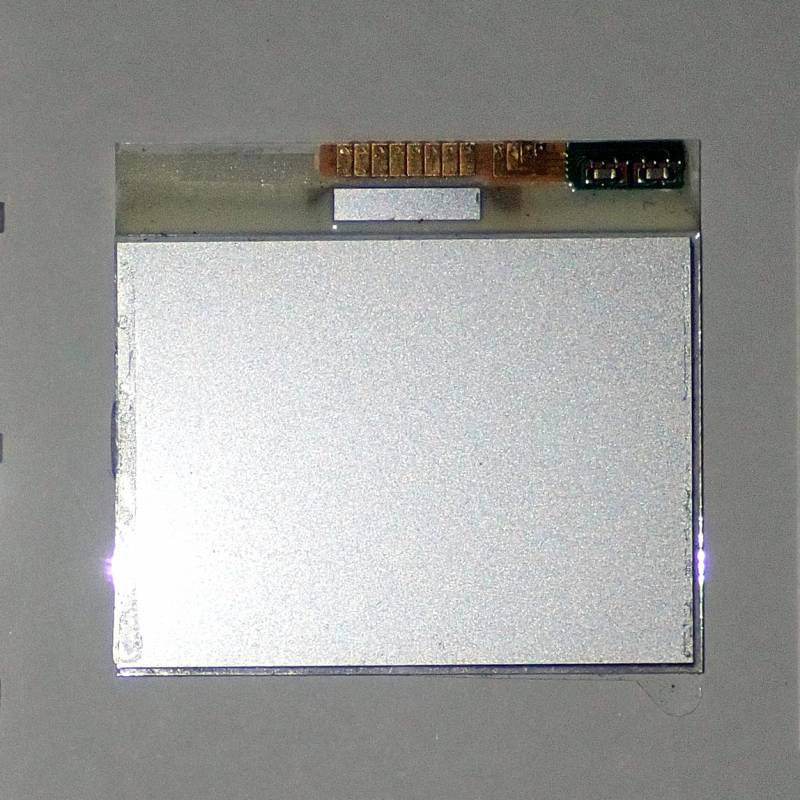

The edge of the LCD has two capacitors mounted on it, but they don't appear to be connected as there are no pins that contact their four copper edge pads.
- Library: Adafruit_GFX.h
- Library: Adafruit_PCD8544.h
- Worm.ino
Mounting on PCB
To reuse these in Arduino projects it is useful to have them mounted on a PCB.

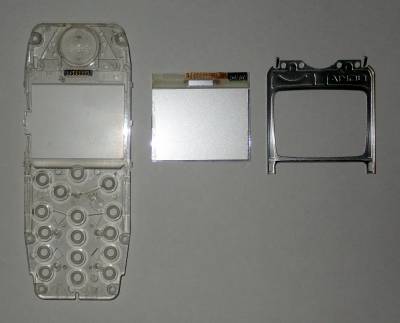

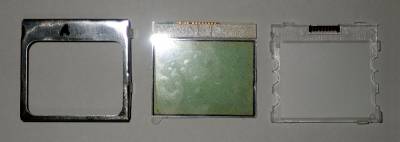

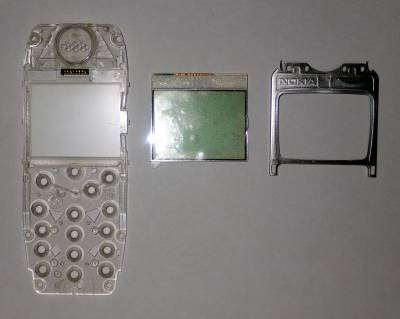

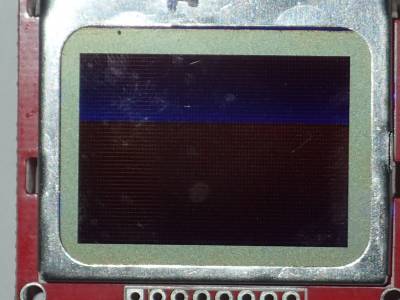

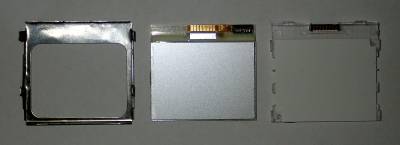

After disassembly (plastic welds holding bezel must be sliced off) the LCD can be extracted and fitted as a perfect replacement in a Diymore Nokia 3310 LCD adapter board:
