| LCD Description | |
|---|---|

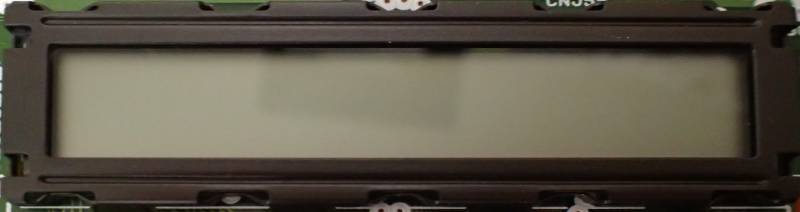

| Model | DZZSP15015 |
| Manufacturer | |
| Recovered from | Panasonic UF-V40 fax 1) |

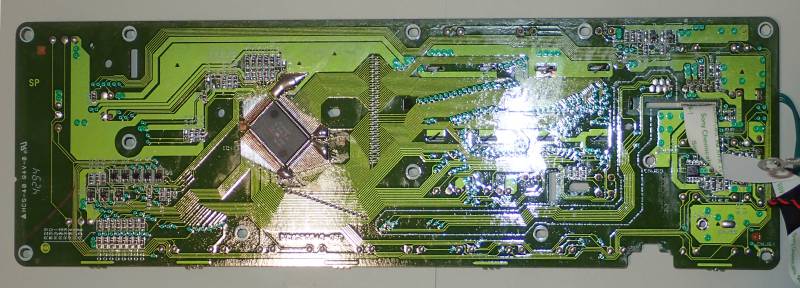

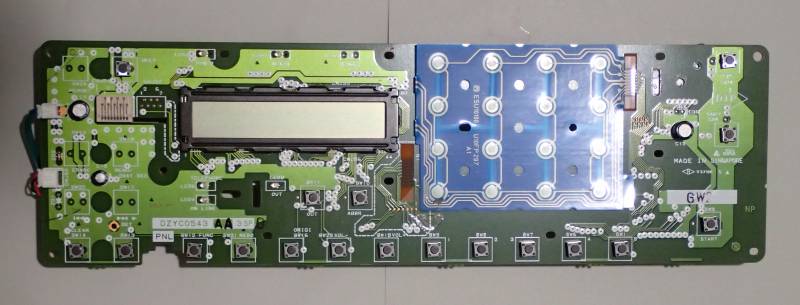

| Board IDs | DZYC0543 |
| LCD type | positive |
| Polarizer type | reflective |
| Columns | 20 2) |
| Rows | 1 |
| Char matrix | 5×7 |

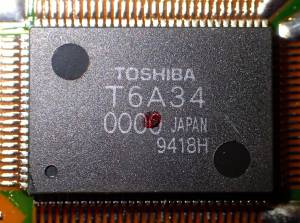

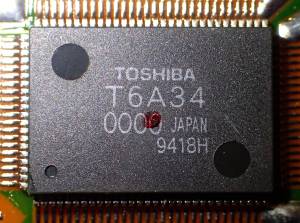

| Driver IC | T6A34 3) |
| Backlight | - |
| Arduino driver | LiquidCrystal_t6a34.h |
| Connector | PCB flex cable |
| Num Pins | 9 |
| Pin spacing | 1.25mm |
| CN51 pin-out | ||||
|---|---|---|---|---|
| Pin# | Label | IC pin | Label | Pin |
| 1 | PNRST | 88 | ~RST | RESET |
| 2 | SCK | 89 | SCK | 9 |
| 3 | SI | 91 | SID | 8 |
| 4 | SO | 92 | SOD | - |
| 5 | +5VA | - | - | |
| 6 | +5V | 90 | Vdd | +5V |
| 7 | GND | 80 | Vss | GND |
| 8 | AGND | - | - | |
| 9 | TL(MIC) | - | - | |
Examples :
