| LCD Description | |
|---|---|
| Model | Nokia 3210 |
| Manufacturer | Nokia |

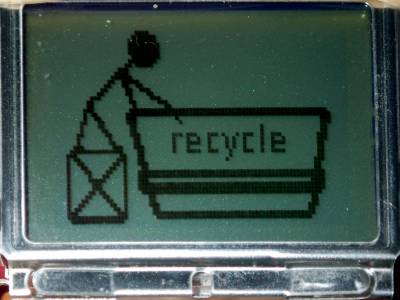

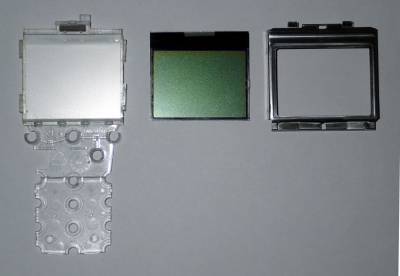

| Recovered from | Nokia NSE-8 3210 cellphone |
| Board IDs | 4850107, LPH7677-1 |
| LCD type | positive |
| Polarizer type | transflective |
| Columns | 84 pixels |
| Rows | 48 pixels |
| Char matrix | - |
| Driver IC | Philips PCD8544 |
| Backlight | - |
| Arduino driver | U8g2lib.h |
| Connector | elastomeric |
| Num Pins | 8 |
| Pin spacing | 0.044” |
| Module size | mm |
Optimal contrast value : 55

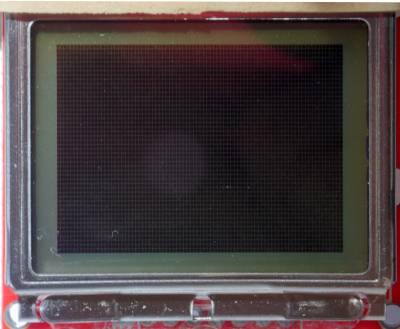

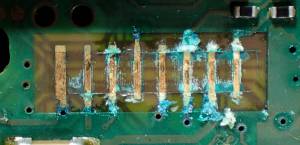

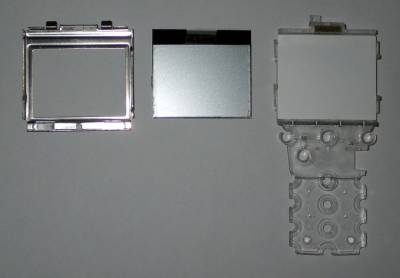

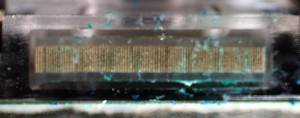

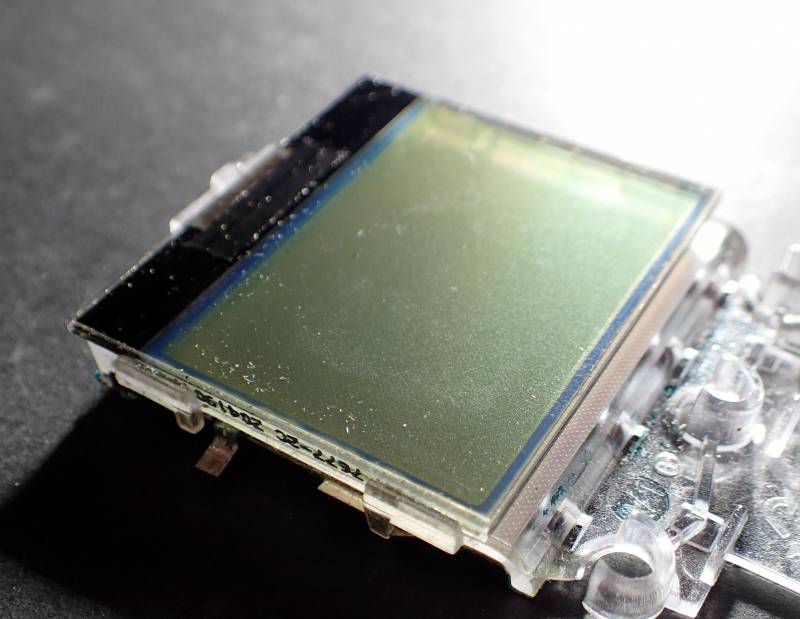

Connector layout, LCD front view
| Elastomeric pinout | ||
|---|---|---|
| Pin | Label | Description |
| 1 | VDD | 2.7V - 3.3V |
| 2 | CLK | Clock |
| 3 | SDIN | Data in |
| 4 | D/C | Data or command |
| 5 | SCE | Chip select |
| 6 | VSS | Ground |
| 7 | VLCD | DC/DC voltage converter |
| 8 | RES | Reset |

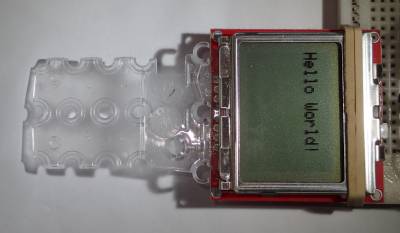

| Mounted on PCB, pin-out | Arduino test rig | |||
|---|---|---|---|---|
| Pin# | Label | Description | Pin | colour |
| 1 | RST | Reset | 8 | Grey |
| 2 | CS | Chip Selection | 10 | White |
| 3 | D/C | Data/Command | 9 | Purple |
| 4 | DIn | Serial Data Line | 11 | Blue |
| 5 | Clk | Serial Clock | 13 | Green |
| 6 | Vcc | 2.7V to 3.3V | ||
| 7 | LED | Backlight Control | ||
| 8 | GND | Power Ground | ||

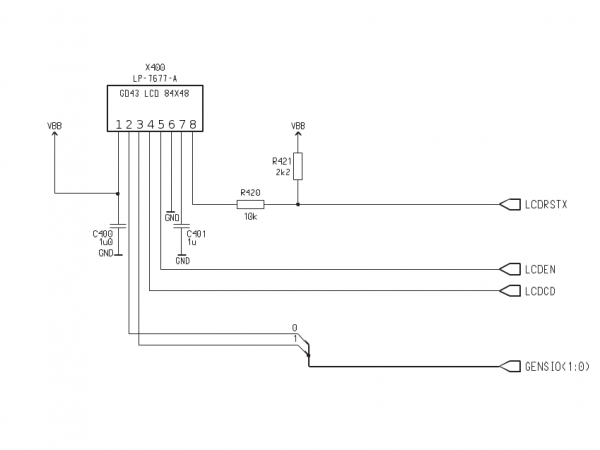

- Nokia 3210 LCD schematic:
Additional info

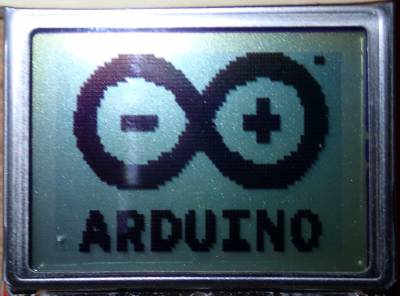

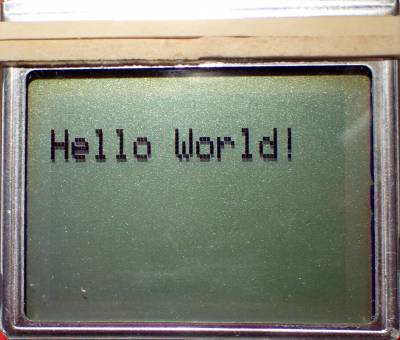

Examples :
