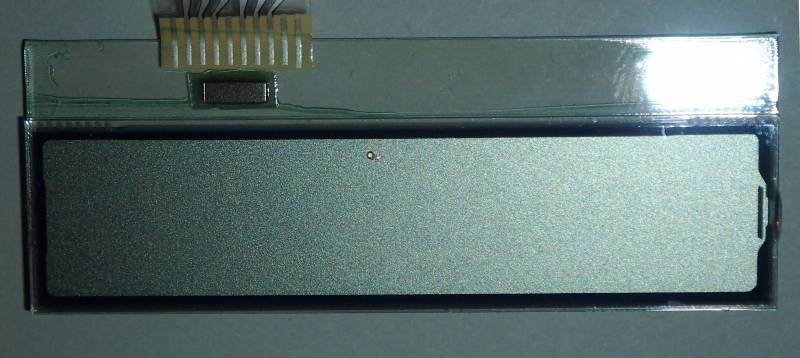

| LCD Description | |
|---|---|
| Model | L303646, g7A145 |
| Manufacturer | |
| Recovered from | Brother FAX-2820 |
| Board IDs | |
| LCD type | positive |
| Polarizer type | reflective |
| Columns | 16 |
| Rows | 1 |
| Char matrix | 5×8 |

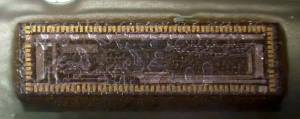

| Driver IC | Hitachi HD44780 compatible (CoG) |
| Backlight | - |
| Arduino driver | LiquidCrystal_SPI |

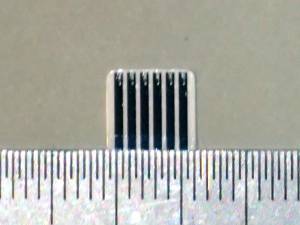

| Connector | PCB flex cable |
| Num Pins | 6 |
| Pin spacing | 1mm |
| Module size | 55 x 20mm |
| Connector pin-out | Arduino test rig | |
|---|---|---|
| Pin# | Label | Pin |
| 1 | Data | D9 |
| 2 | SCK | D5 |
| 3 | STB | D4 |
| 4 | V0 | Contrast adjustment 1) |
| 5 | Vdd | +5V |
| 6 | Vss | GND |
LCDs with the same cable and controller - g7a145 (orientation rotated 180degrees), b53K4631, a0L028, b53K4671, c7g045 (larger)
(NB the display is upside down (ie rotated 180 degrees) compared to other LCDs with the same cable number ID, L303646.)

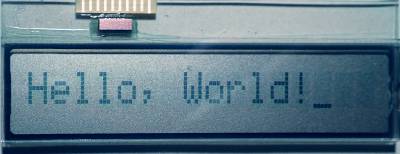

Examples :
1)
connect to potentiometer between +5V and GND
