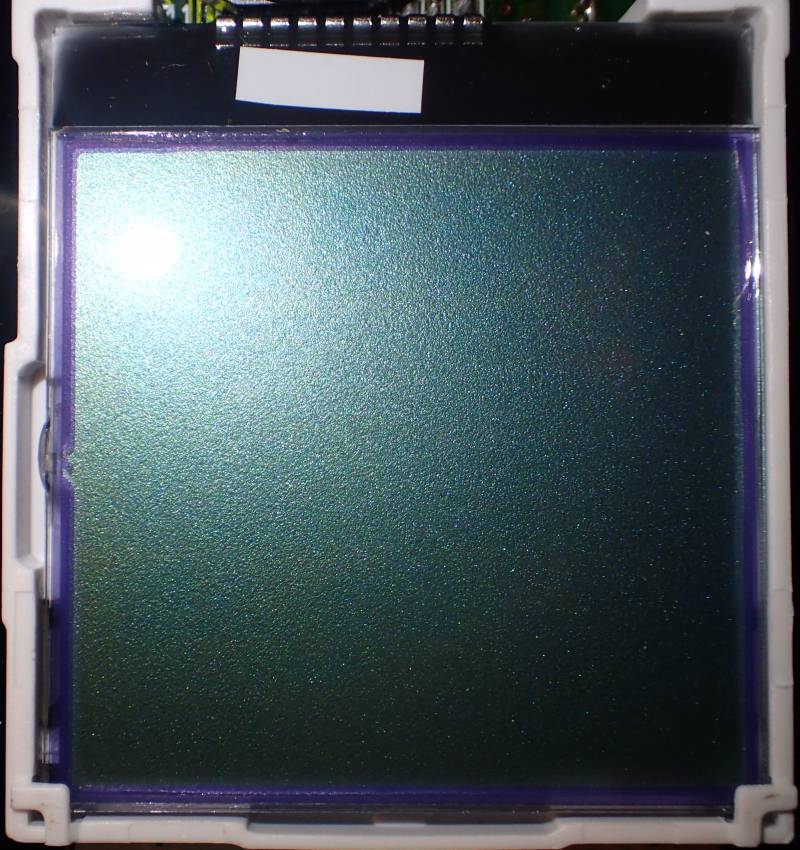

| LCD Description | |
|---|---|
| Model | DECT3216 |
| Manufacturer | Uniden |

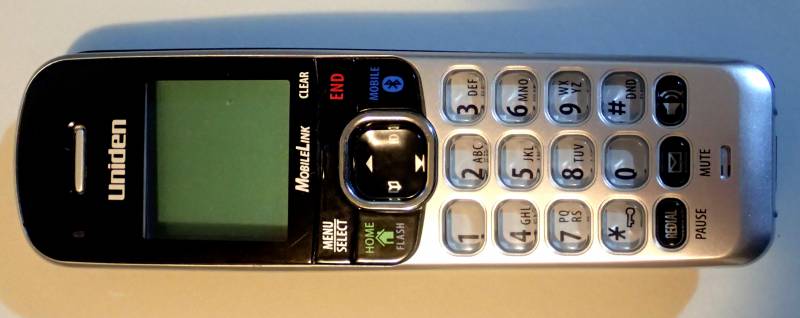

| Recovered from | Uniden MobileLink DECT3216 phone |
| Board IDs | PE-2525AA |
| LCD type | positive |
| Polarizer type | transflective |
| Columns | 16 |
| Rows | 4 1) |
| Char matrix | 5×8 |
| Driver IC | 3.3V, SPI. hd44780 compatible |
| Backlight | orange |
| Arduino driver | |

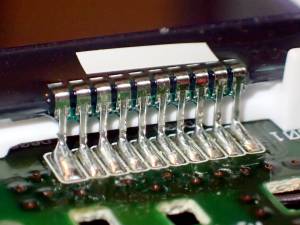

| Connector | pins |
| Num Pins | 10 |
| Pin spacing | 1.5mm |
| Connector pin-out | Arduino test rig | |||
|---|---|---|---|---|
| Pin# | Measured | Label | Pin | colour |
| 1 | 3.21V | RS | ||
| 2 | 3.21V | CS | ||
| 3 | 3.21V | Data | ||
| 4 | 3.21V | Clock | ||
| 5 | 3.24V DC | cap | ||
| 6 | 2V DC | cap | ||
| 7 | 25mS square wave, 2V to 5V | cap | ||
| 8 | 25mS square wave, 0V to -3V | cap | ||
| 9 | 0V | Gnd | ||
| 10 | 3.25V | Vdd | ||
Datasheets

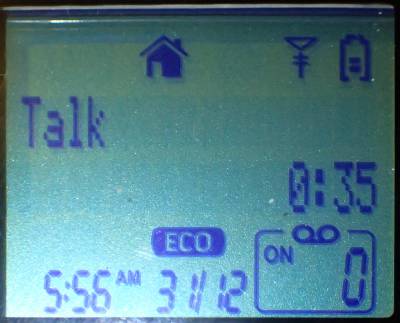

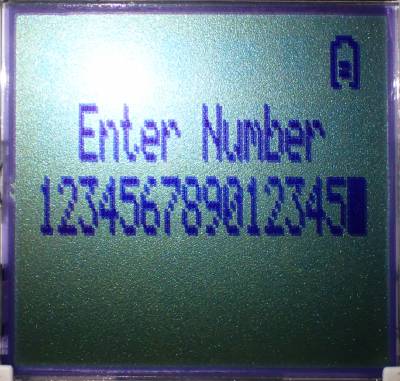

Examples :
1)
2 rows of digits and icons, 2 rows of alpha-numeric characters
