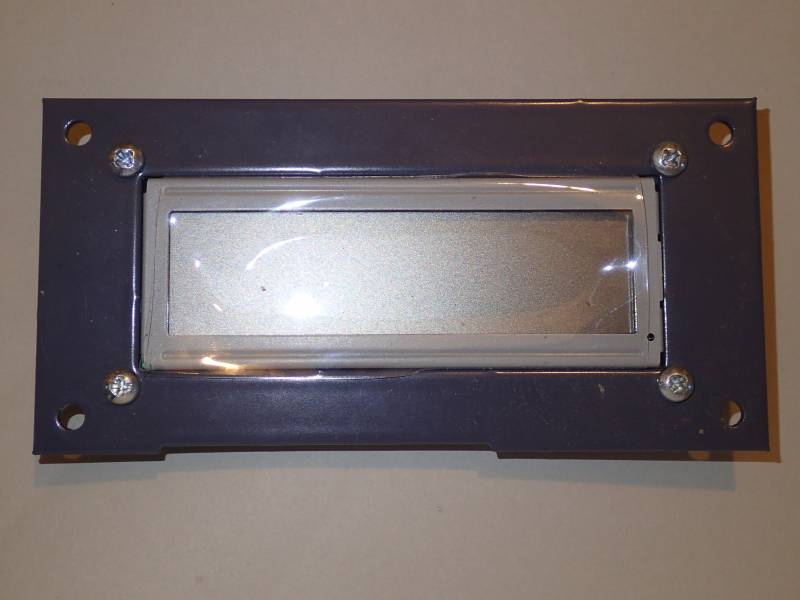

| LCD Description | |
|---|---|
| Model | AC-162B Rev.E |
| Manufacturer | Ampire |
| Recovered from | |
| LCD type | TN positive |
| Polarizer type | reflective |
| Columns | 16 |
| Rows | 2 |

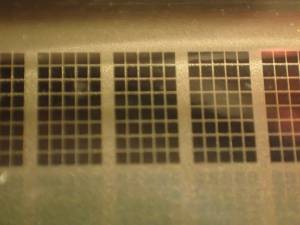

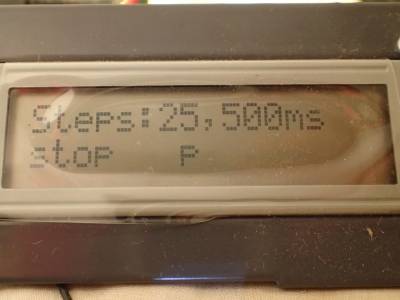

| Char matrix | 5×8 |

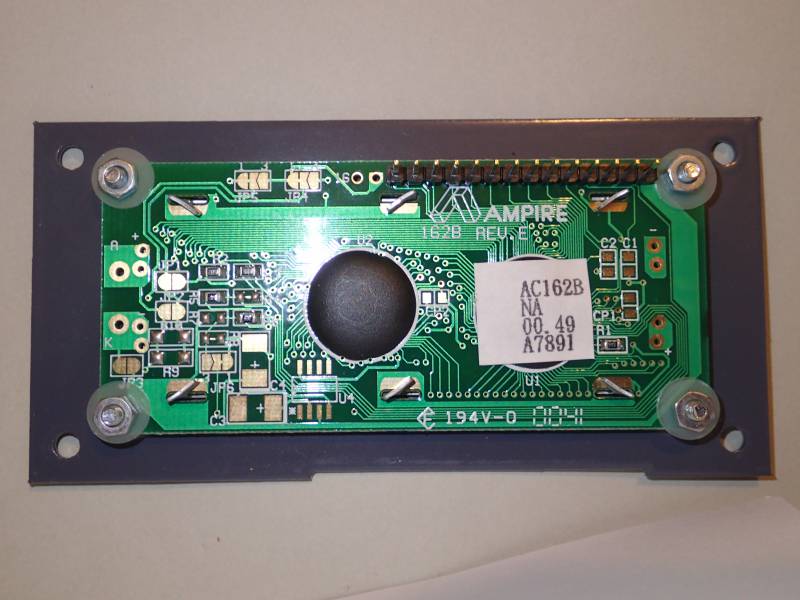

| Driver IC | Hitachi HD44780 compatible (covered in epoxy) |
| Backlight | - |
| Arduino driver | LiquidCrystal.h |

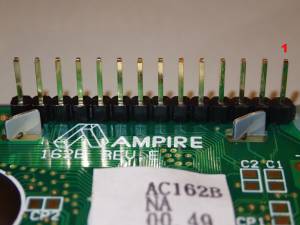

| Connector | pin header |
| Num Pins | 14 |
| Pin spacing | 0.1” |
| Connector pin-out | Arduino test rig | ||
|---|---|---|---|
| Pin# | Label | Description | Pin |
| 1 | gnd | ||
| 2 | vcc | ||
| 3 | v0 contrast | ||
| 4 | rs | ||
| 5 | r/w' | ||
| 6 | e | ||
| 7 | d0 | ||
| 8 | d1 | ||
| 9 | d2 | ||
| 10 | d3 | ||
| 11 | d4 | ||
| 12 | d5 | ||
| 13 | d6 | ||
| 14 | d7 | ||
