LCD module data
Numeric
Character
Mixed
- ≡ Uniden FP203 ✘
- ≡ Uniden FP204 ✘
- ≡ VIP89Z G-Code ✘
Graphic
key: ≡ parallel, ↔ serial, ~ LVDS, _ unknown, ✘ discarded as not useful
| LCD Description | |
|---|---|

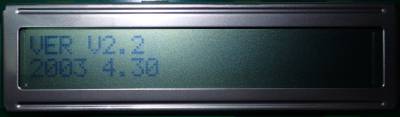

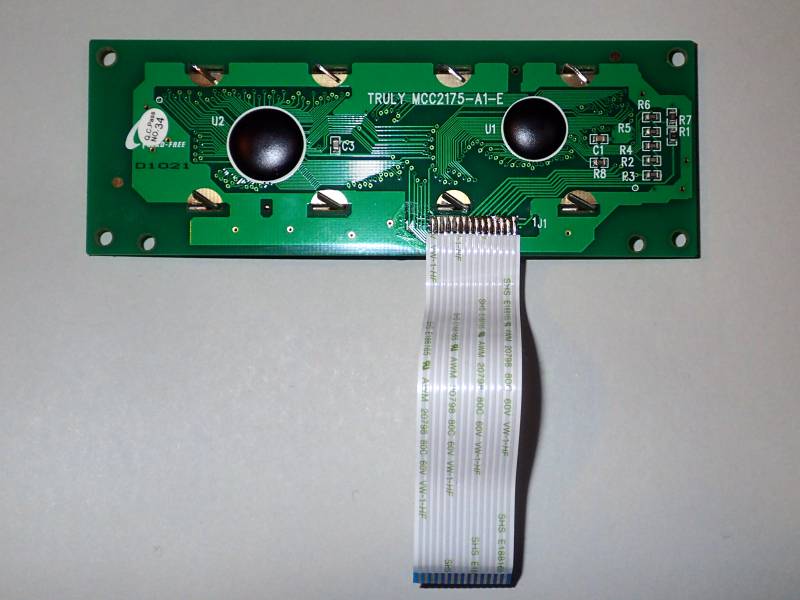

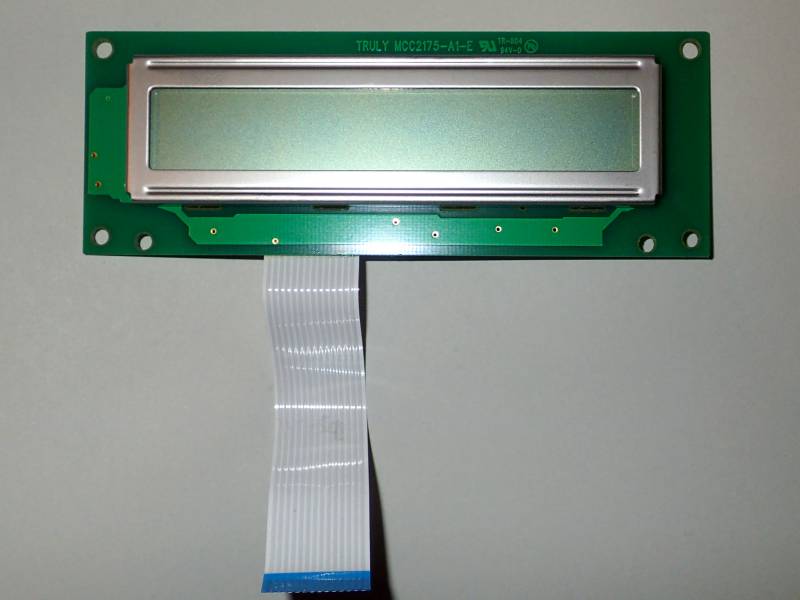

| Model | MCC2175-A1-E |
| Manufacturer | Truly |
| Recovered from | Samsung DS-5007S phone |
| Board IDs | |
| LCD type | Positive |
| Polarizer type | Reflective |
| Columns | 24 |
| Rows | 2 |

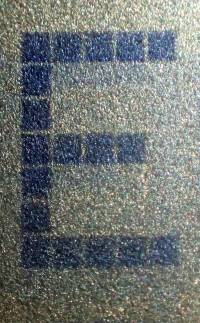

| Char matrix | 5×8 |
| Driver IC | (CoG) |
| Backlight | - |
| Arduino driver | |

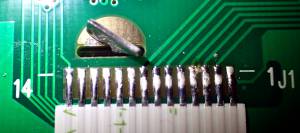

| Connector | PCB flex cable |
| Num Pins | 14 |

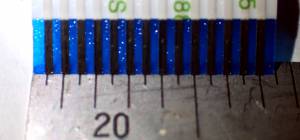

| Pin spacing | 0.05” |
| Connector pin-out | Arduino test rig | ||
|---|---|---|---|
| Pin# | Label | Description | Pin |
| 1 | GND | ||
| 2 | +5V | ||
| 3 | vlcd? | 18.96k | |
| 4 | rs? | 19.35k | |
| 5 | r/w? | 19.17k | |
| 6 | e? | 19.7k | |
| 7 | d0? | 16.8k | |
| 8 | d1? | 16.8k | |
| 9 | d2? | 16.8k | |
| 10 | d3? | 16.8k | |
| 11 | d4? | 16.8k | |
| 12 | d5? | 16.8k | |
| 13 | d6? | 16.8k | |
| 14 | d7? | 16.8k | |
