| LCD Description | |
|---|---|

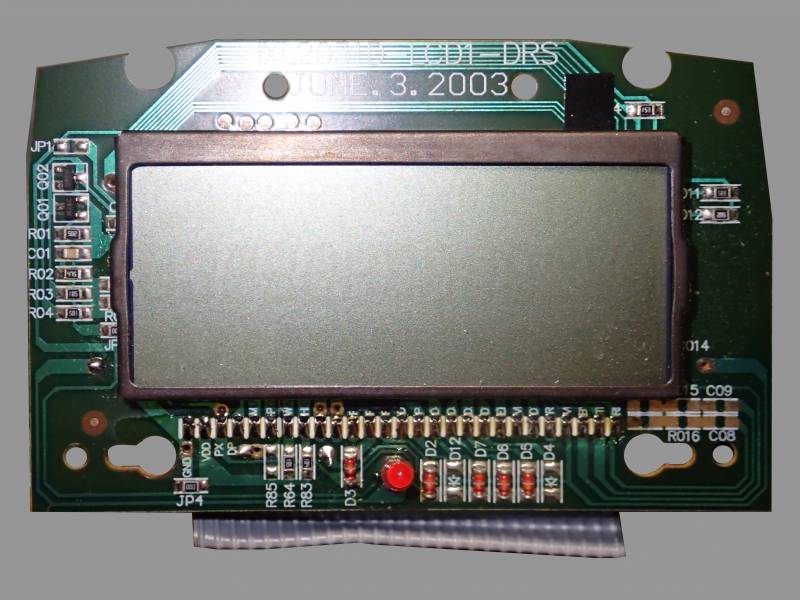

| Model | IXL2031D-LCD1-DRS |
| Manufacturer | |
| Recovered from | Uniden FP203 phone |

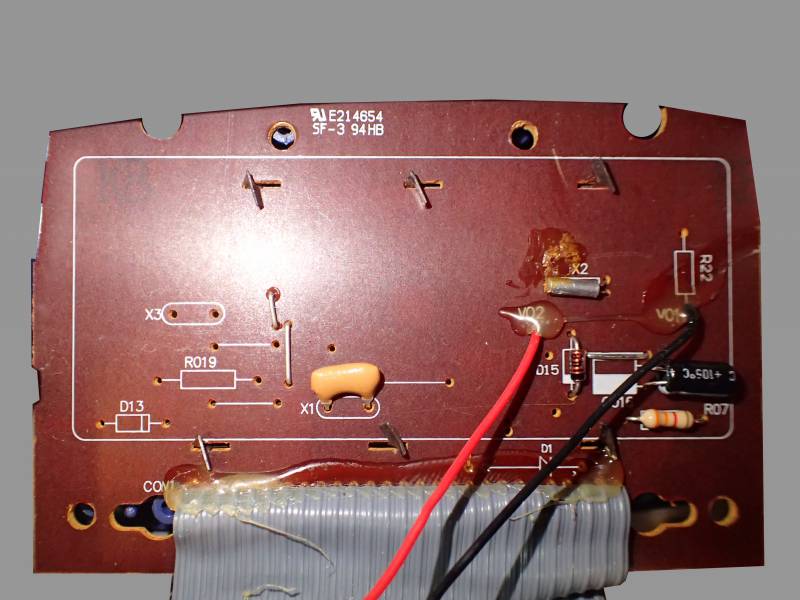

| Board IDs | JUNE.3.2003, E21 4654, SF-3 94HB, GDS-FR-276 0508266 |
| LCD type | reflective |
| Polarizer type | positive |
| Digit Columns | 13 |
| Digit Rows | 1 1) |
| Alpha Columns | 16 |
| Alpha Rows | 1 |
| Char matrix | 5×5 |

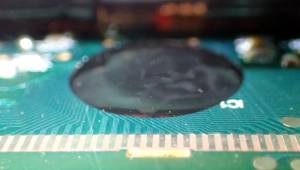

| Driver IC | (CoB) |
| Backlight | - |
| Arduino driver | |
| Connector | single core ribbon |
| Num Pins | 27 |

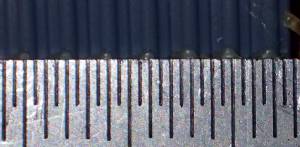

| Pin spacing | 2mm |
| Connector pin-out | Arduino test rig | ||
|---|---|---|---|
| Pin# | Label | Description | Pin |
| 1 | RING | ||
| 2 | TIP | ||
| 3 | BVDD | ||
| 4 | VCC | ||
| 5 | RD | ||
| 6 | DT | ||
| 7 | VIP | ||
| 8 | EH | ||
| 9 | D1 | ||
| 10 | D2 | ||
| 11 | D3 | ||
| 12 | D4 | ||
| 13 | P4 | ||
| 14 | DV | ||
| 15 | P10 | ||
| 16 | P11 | ||
| 17 | P12 | ||
| 18 | P13 | ||
| 19 | P14 | ||
| 20 | HKS | ||
| 21 | WAK | ||
| 22 | POW | ||
| 23 | MUTE | ||
| 24 | DP | ||
| 25 | PX | ||
| 26 | VDD | ||
| 27 | GND | ||

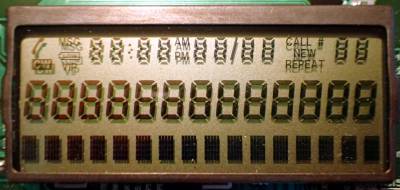

Examples :
1)
plus additional row of mixed symbols and digits
