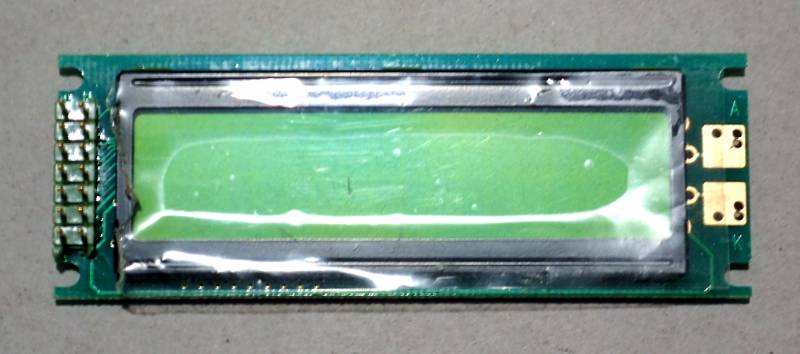

| LCD Description | |
|---|---|
| Model | SSC2A16DRY 1) |
| Manufacturer | SDEC 2) |
| Recovered from | - |

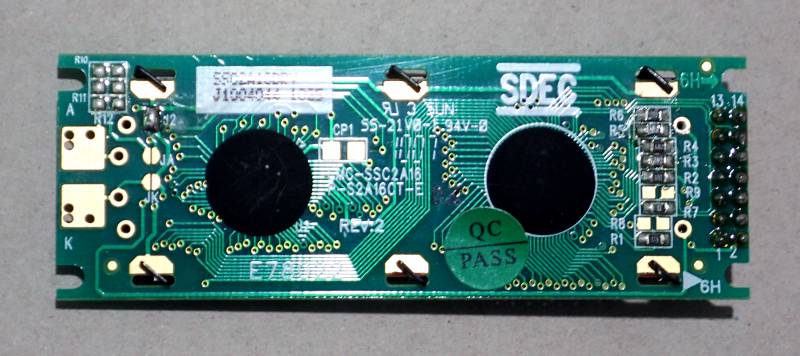

| Board IDs | LMC-SSC2A16, P-S2A16CT-E REV:2, J1004044 1025 |
| LCD type | positive |
| Polarizer type | reflective |
| Columns | 16 |
| Rows | 2 |

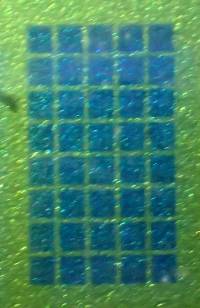

| Char matrix | 5×8 |
| Driver IC | NT38813) or equivalent (CoG) |
| Backlight | - |
| Arduino driver | LiquidCrystal.h |

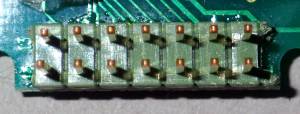

| Connector | pin header |
| Num Pins | 14 |
| Pin spacing | 0.1” |
| Module size | 85×30 mm |
| Connector pin-out | ||
|---|---|---|
| Pin# | Label | Descripion |
| 1 | VDD | +5V |
| 2 | VSS | GND |
| 3 | V0 | Contrast |
| 4 | RS | Register select |
| 5 | R/W | Read/Write |
| 6 | E | Enable |
| 7 | DB0 | Data Bit 0 |
| 8 | DB1 | Data Bit 1 |
| 9 | DB2 | Data Bit 2 |
| 10 | DB3 | Data Bit 3 |
| 11 | DB4 | Data Bit 4 |
| 12 | DB5 | Data Bit 5 |
| 13 | DB6 | Data Bit 6 |
| 14 | DB7 | Data Bit 7 |

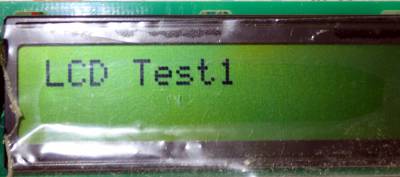

Examples :
