| LCD Description | |
|---|---|
| Model | IP 110 |
| Manufacturer | Shoretel |
| Recovered from | Shoretel IP 110 phone |

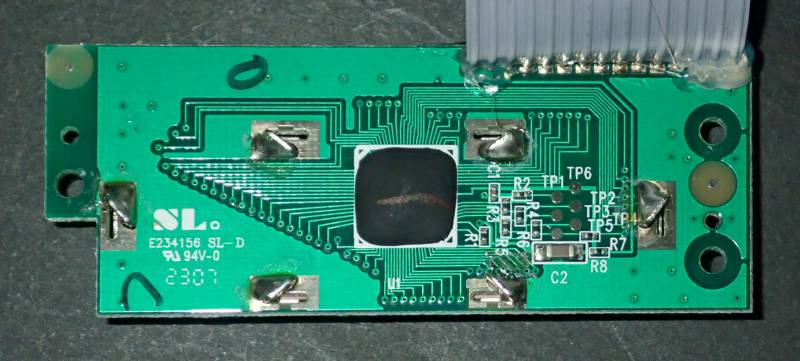

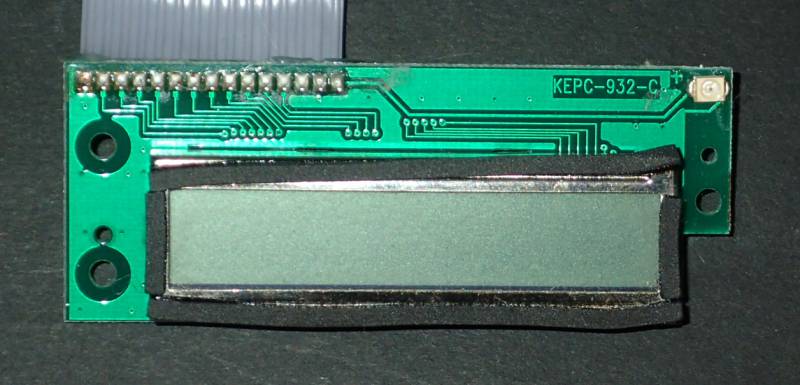

| Board IDs | SL E234156 SL-D, KEPC-932-C |
| LCD type | Positive |
| Polarizer type | Reflective |
| Columns | 16 |
| Rows | 1 |
| Char matrix | |
| Driver IC | |
| Backlight | - |
| Arduino driver | |
| Connector | ribbon cable |
| Num Pins | 15 |
| Pin spacing | 0.1” |
| Module size | mm |
