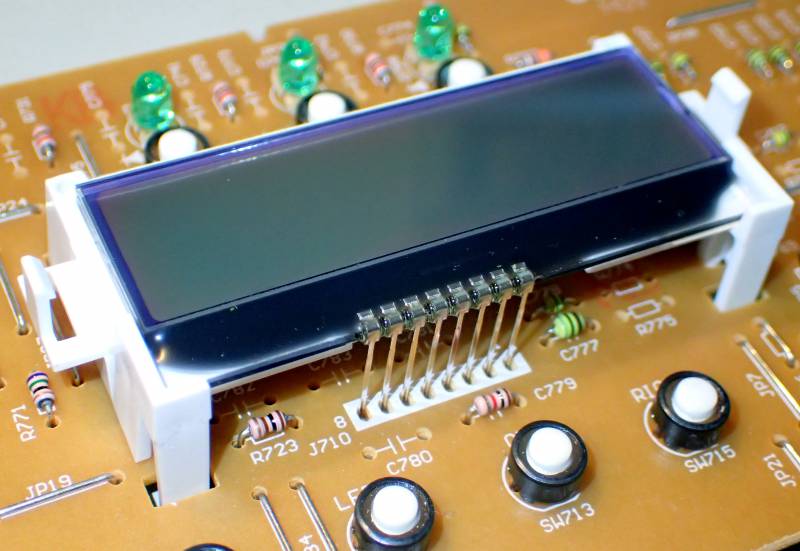

| LCD Description | |
|---|---|
| Model | DELL V313W |
| Manufacturer | |
| Recovered from | DELL V313W printer |

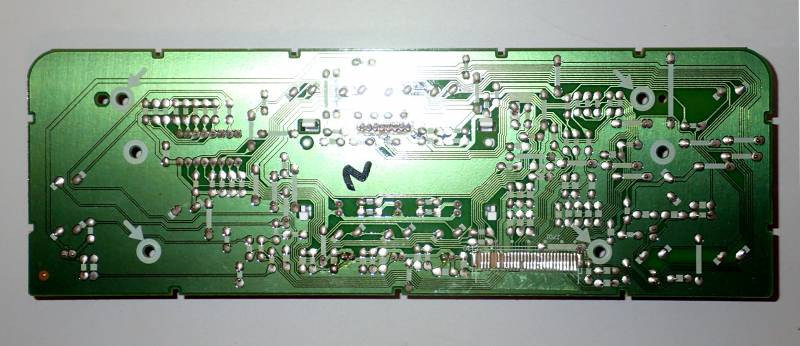

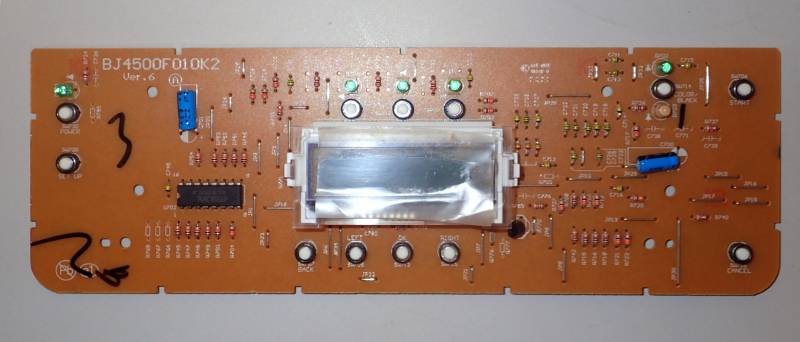

| Board IDs | BJ4500F010K2 Ver. 6 |
| LCD type | positive |
| Polarizer type | transflective |
| Columns | 120 pixels (approx) |
| Rows | 32 pixels (approx) |
| Char matrix | - |
| Driver IC | (CoG) |
| Backlight | green |
| Arduino driver | |

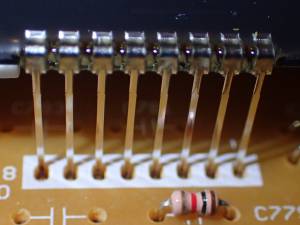

| Connector | pins |
| Num Pins | 8 |
| Pin spacing | 2mm |

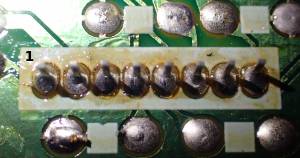

| Connector pin-out | Arduino test rig | ||
|---|---|---|---|
| Pin# | Label | Description | Pin |
| 1 | 1µF to ground | ||
| 2 | Vcc | ||
| 3 | GND | ||
| 4 | 1k to ground, 100Ω to j701 pin 11 | ||
| 5 | 100Ω to j701 pin 10 | ||
| 6 | 100Ω to j701 pin 8 | ||
| 7 | 100Ω to j701 pin 2 | ||
| 8 | 100Ω to j701 pin 19 | ||
Examples :
