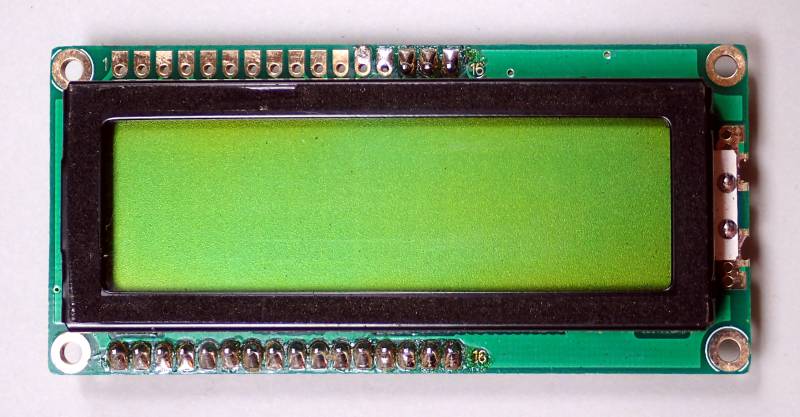

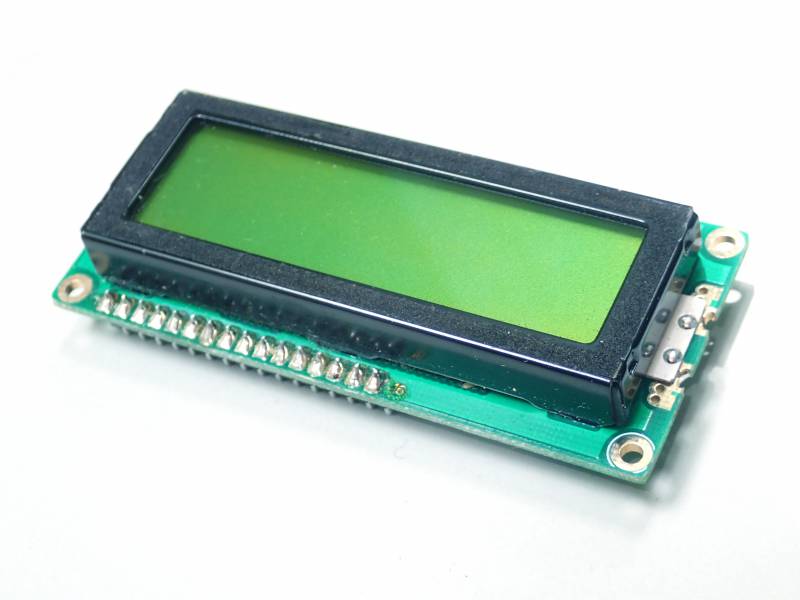

| Model | CBC016002C00 (relabeled CBC016002D00-YEY-R) 1) |
| Manufacturer | Shenzhen AV-Display Co. 2) 3) |
| Recovered from | PD2 DAB/FM Radio, Acoustic Solutions |

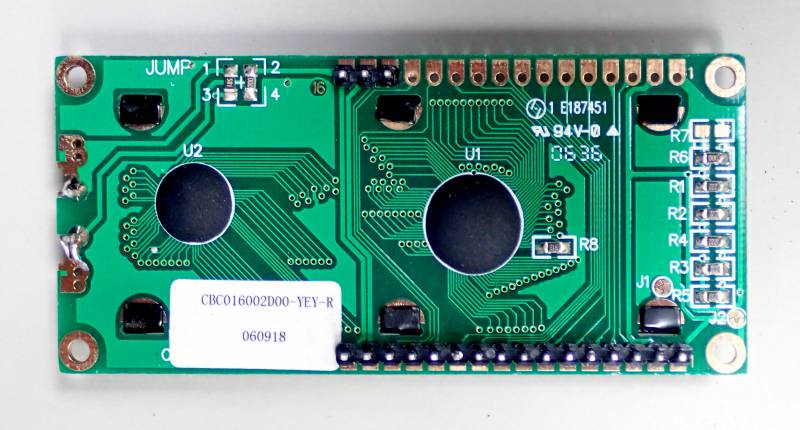

| Board IDs | CBC016002C00, E187451 |
| LCD type | positive |
| Polarizer type | transflective |
| Columns | 16 |
| Rows | 2 |

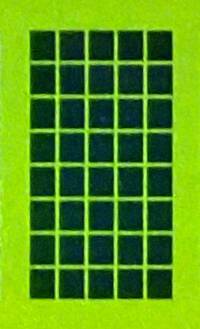

| Char matrix | 5×8 |
| Driver IC | SPLC780D1 ? 4) |
| Backlight | green LED |
| Arduino driver | LiquidCrystal.h |
| Connector | pin header |
| Num Pins | 16 |
| Pin spacing | 0.1” |
| Connector pin-out | Arduino test rig | ||
|---|---|---|---|
| Pin# | Label | Description | Pin |
| 1 | Vss | Ground | GND |
| 2 | Vdd | Power supply for logic | +5V |
| 3 | Vo | Contrast adjustment | 5) |
| 4 | RS | Data/Instruction select signal | 8 |
| 5 | R/W | Read/Write select signal | GND |
| 6 | /E | Enable signal | 9 |
| 7 | DB0 | Data bus line | |
| 8 | DB1 | Data bus line | |
| 9 | DB2 | Data bus line | |
| 10 | DB3 | Data bus line | |
| 11 | DB4 | Data bus line | 4 |
| 12 | DB5 | Data bus line | 5 |
| 13 | DB6 | Data bus line | 6 |
| 14 | DB7 | Data bus line | 7 |
| 15 | A | Power supply for B/L + | +5V |
| 16 | K | Power supply for B/L - | GND |
| CBC016002D00-YEY-R 6) | |
|---|---|
| C | AV-Display Custom-designed module |
| B | COB Type |
| C | Character type display |
| 016 | 16 Colums |
| 002 | 2 Rows |
| D | outline |
| 00 | version |
| Y | STN, Positive, Y/G |
| E | Transflective, normal (0~50C), 12:00 |
| Y | LED Y/G |
| R | ROHS compliant |
—-

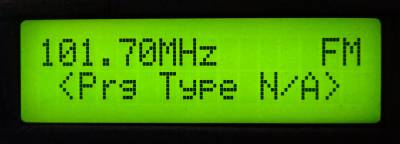

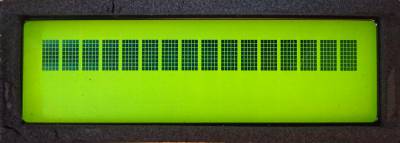

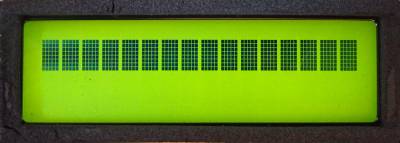

Examples :
