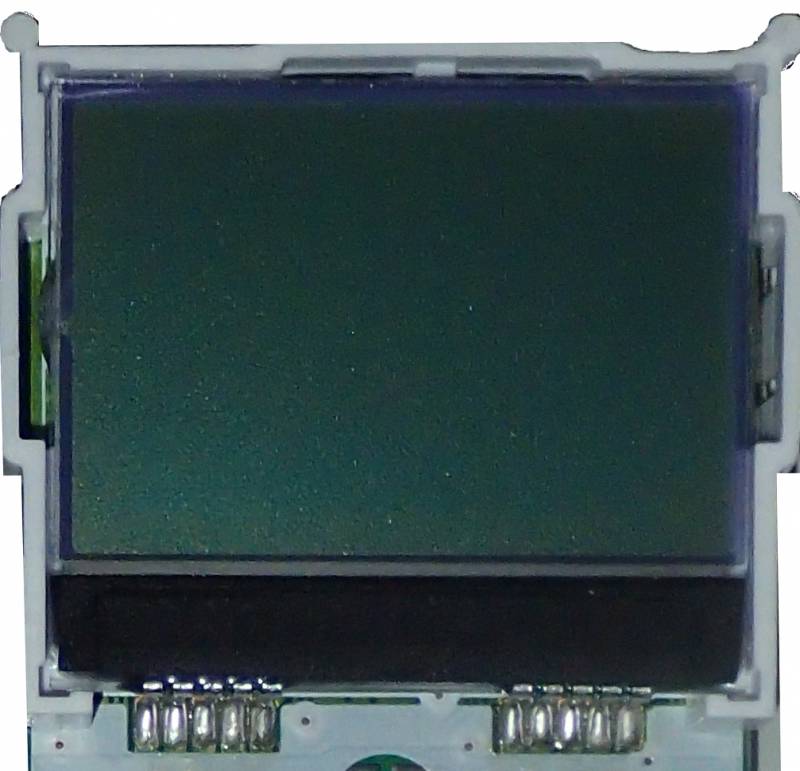

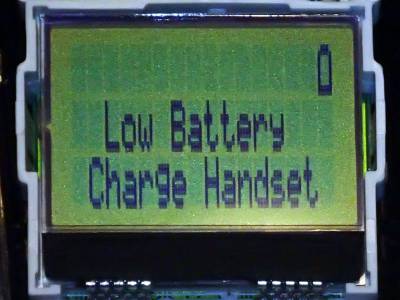

| LCD Description | |
|---|---|
| Model | DECT1535 |
| Manufacturer | Uniden |

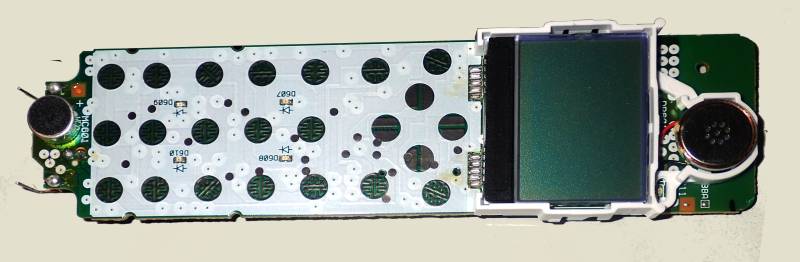

| Recovered from | Uniden DECT1535 phone |
| Board IDs | PE-2358BA |
| LCD type | positive |
| Polarizer type | transflective |
| Columns | 16 |
| Rows | 3 |
| Char matrix | 5×7 |
| Driver IC | |
| Backlight | |
| Arduino driver | |

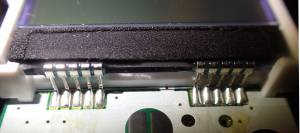

| Connector | pins |
| Num Pins | 10 |
| Pin spacing | “ |
| Connector pin-out | Arduino test rig | ||
|---|---|---|---|
| Pin# | Label | Description | Pin |
| 1 | Vdd? | 3.2V | |
| 2 | Gnd | 0V (battery -ve) | |
| 3 | 25mS square wave 0V to -3.3V | ||
| 4 | 25mS square wave 2V to 5.5V | ||
| 5 | |||
| 6 | Reset? | 0V jumps to 3.2V after short delay on power-up | |
| 7 | CLK | Clock (200khz) present when clocking data | |
| 8 | Data | Data, on rising edge of Clock, 8bits, MSB first | |
| 9 | CS | Chip select, active low, for duration of data | |
| 10 | RS | Register select, Low = command, High = data | |
