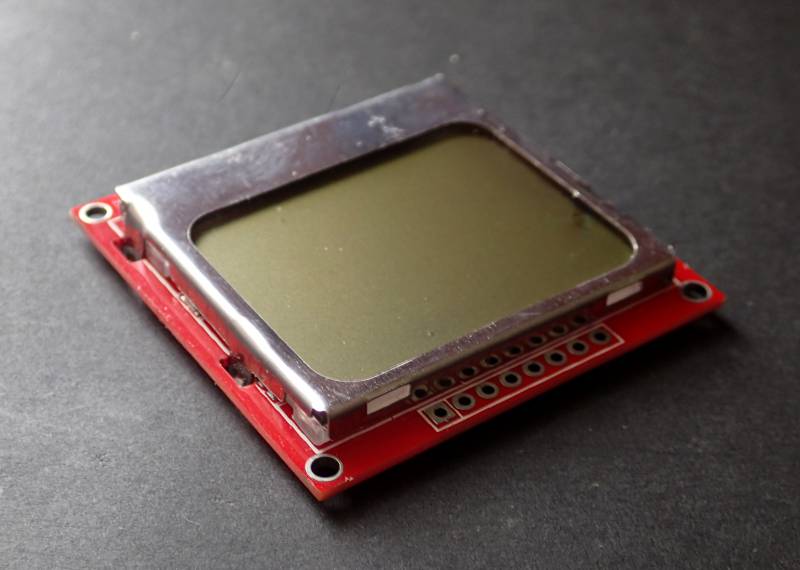

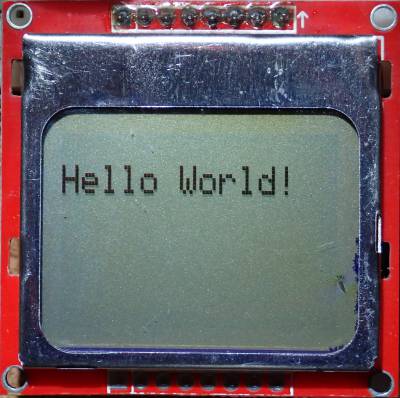

LCD Description
Model	Diymore 3310
Manufacturer	Diymore
Recovered from
Board IDs	LPH7779, SKU:030028BA, A22-19-A-03
LCD type	positive
Polarizer type	transflective
Columns	84 pixels
Rows	48 pixels
Char matrix	-
Driver IC	Philips PCD8544

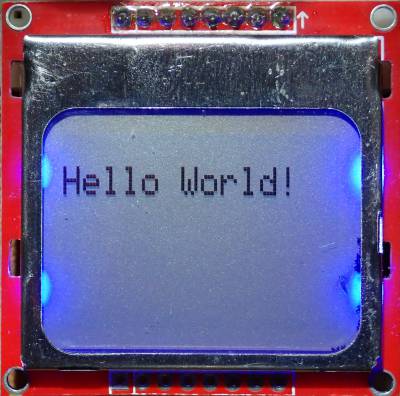

Backlight	blue LED, or white LED
Arduino driver	U8g2lib.h
Connector	pins
Num Pins	8
Pin spacing	0.044”
Module size	45L x 45W x 6.5H mm

Optimal contrast value : 63 - 70 (0x3f - 0x46)

Connector layout, LCD front view

LCD pinout ¹⁾
Pin	Label	Description
1	VDD	2.7V - 3.3V
2	CLK	Clock
3	SDIN	Data in
4	D/C	Data or command
5	SCE	Chip select
6	VSS	Ground
7	VLCD	DC/DC voltage converter²⁾
8	RES	Reset

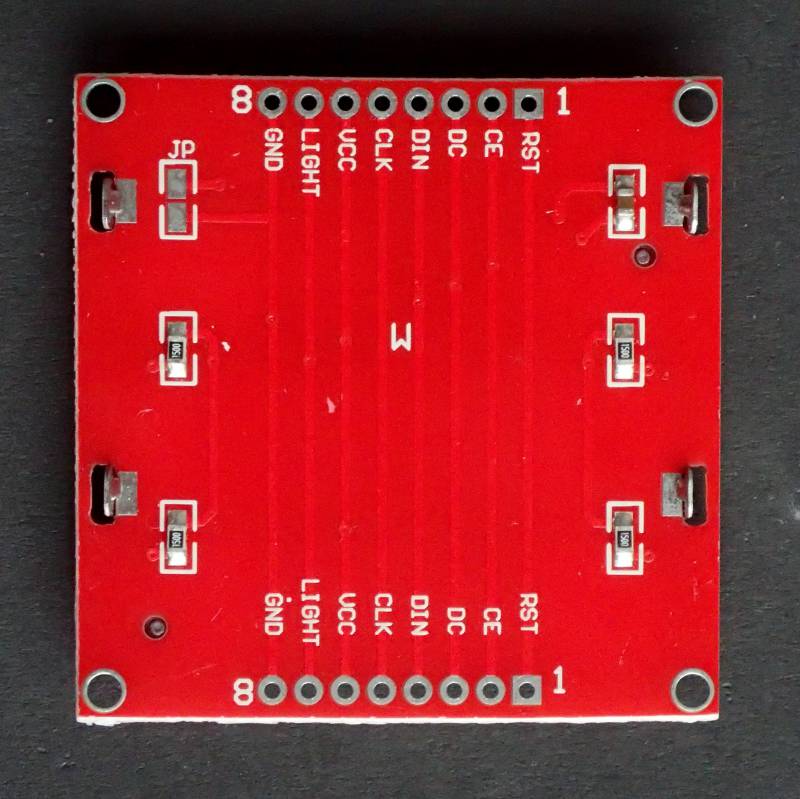

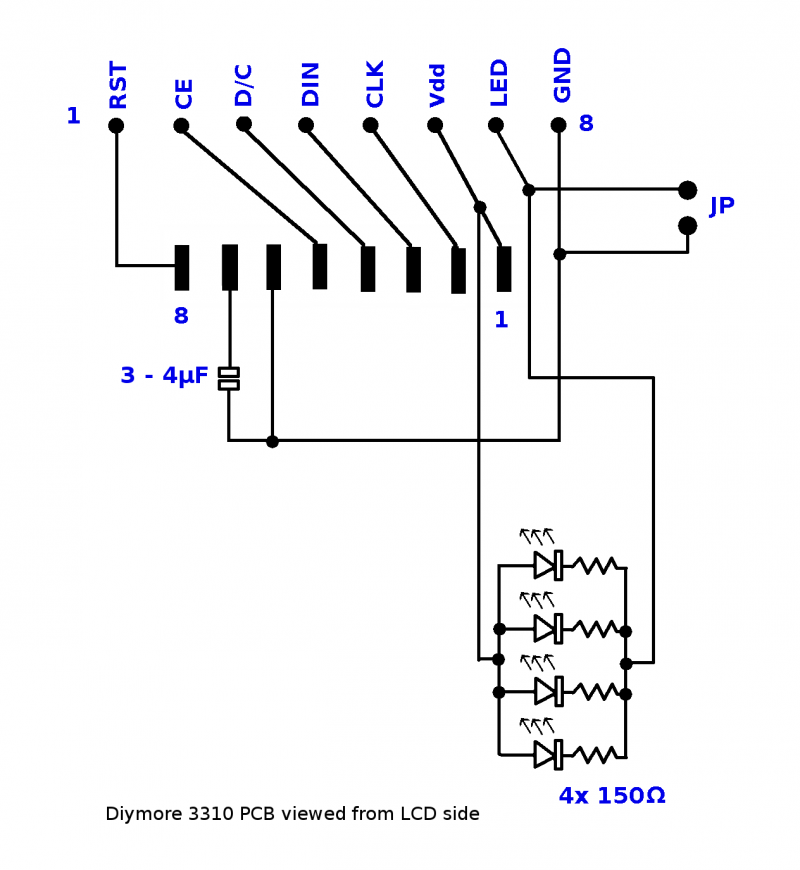

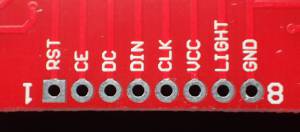

PCB Connector pin-out			Arduino test rig
Pin#	Label	Description	Pin	colour
1	RST	Reset	8	Grey
2	CS	Chip Select	10	Yellow
3	D/C	Data/Command	9	Purple
4	DIn	Serial Data Line	11	Blue
5	Clk	Serial Clock	13	Green
6	Vdd	2.7V to 3.3V
7	LED	Backlight Control
8	GND	Power Ground

Additional info

Driver libraries

Library: Adafruit GFX Graphics Library
Library: Adafruit PCD8544 Nokia 5110 LCD library
- pcdtest.ino
- ( Logo, graphics, scale & rotated text, falling stars)

InterlinkKnight Display_LCD_Nokia_5110_SPI_PCD8544_U8GLIB.ino
- (hello world with shapes and left/right justified numbers)

Library: LCD5110_Graph
- LCD5110_Graph_Demo.pde
- (Text and graphics demo with pacman)

Library: Nokia 5110 LCD library

Library: Universal 8bit Graphics Library
- GraphicsTest.ino
- (Graphics and pages of fonts)

Applications

Using the Nokia 5110 LCD with an Arduino Data Logger³⁾

Notes

There are two common Nokia phone LCD modules regularly for sale. Most commonly described as Nokia 5110 boards, some are infact designed for the Nokia 3310 LCD. The two modules are functionally the same, but have slightly different wiring as one module uses a 9 pin LCD (LPH7366, Nokia 5110) and the other an 8 pin LCD (LPH7779, Nokia 3310).

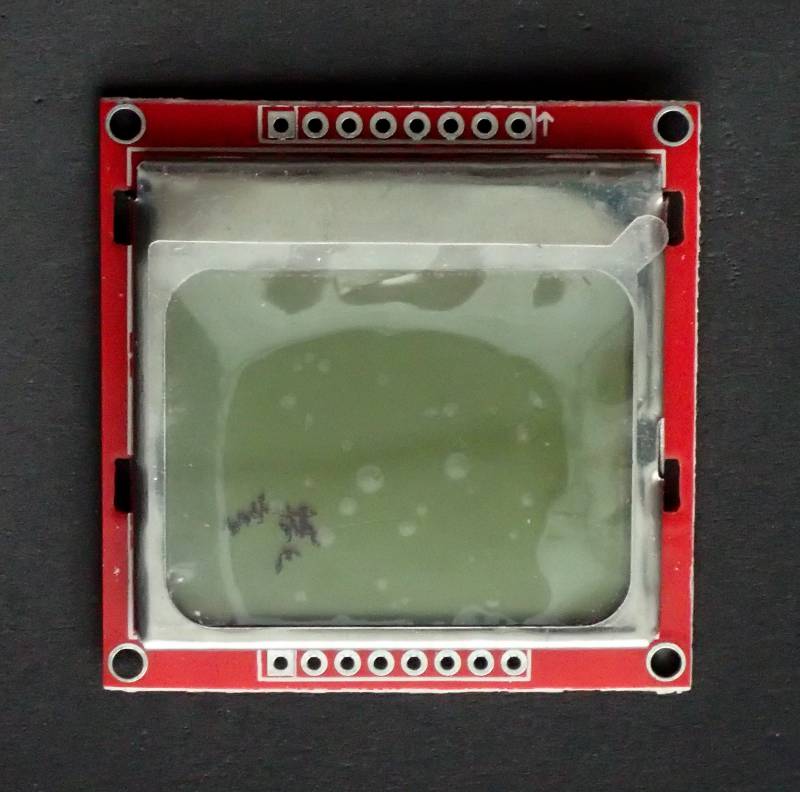

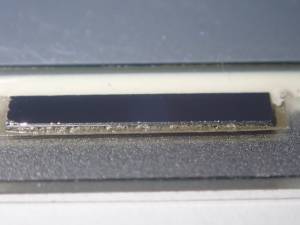

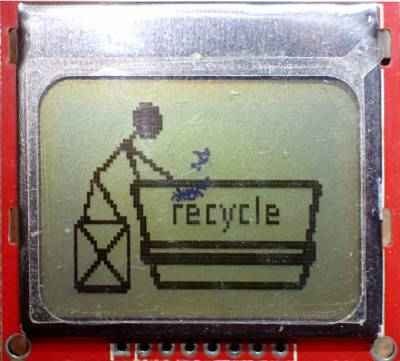

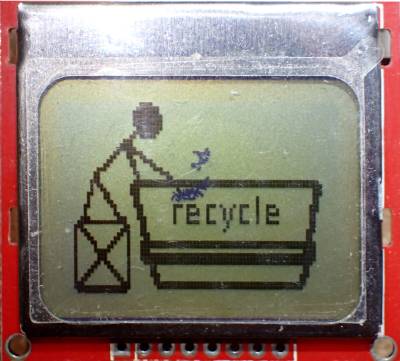

The Diymore modules appear to use recycled LCDs (I have seen minute tell-tail signs of blue corrosion material as the result of expired batteries, around the electrical contacts).

The Philips PCD8544 controller uses an SPI like protocol, but can't share the bus with other devices.

Each byte written is a column of 8 bits, columns are written out from left to right, then top to bottom. The first byte represents the top, left column of 8 bits. The second represents the one to the right of it, and so on. The least significant bit is the top of the column, and then following pixels proceed downward to the most significant bit. But note that the driver libraries probably use an entirely different byte layout for bit-mapped images.

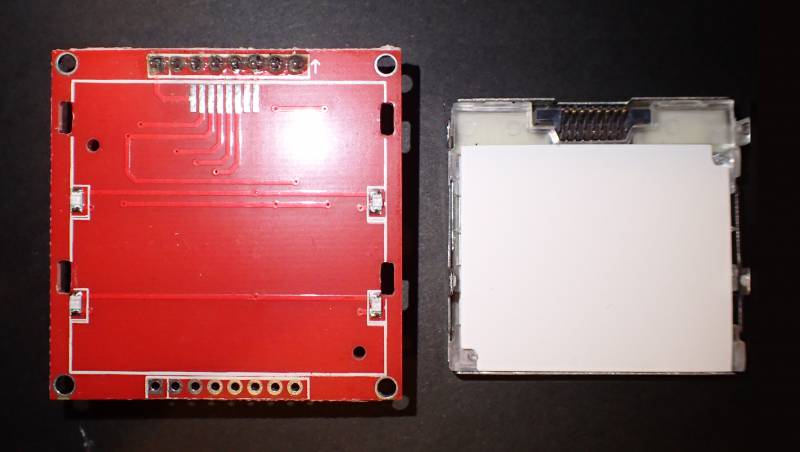

The cheaper PCB mounts for these displays have only 4 backlight LEDs compared to 6 on some phones, and the LEDs are mounted facing up, rather than sideways, horizontally across the board, so don't spread light very evenly.
