| LCD Description | |
|---|---|
| Model | PC1602ARH-EWM-A-Y9Q |
| Manufacturer | Powertip |
| Recovered from | Canon MP110 |

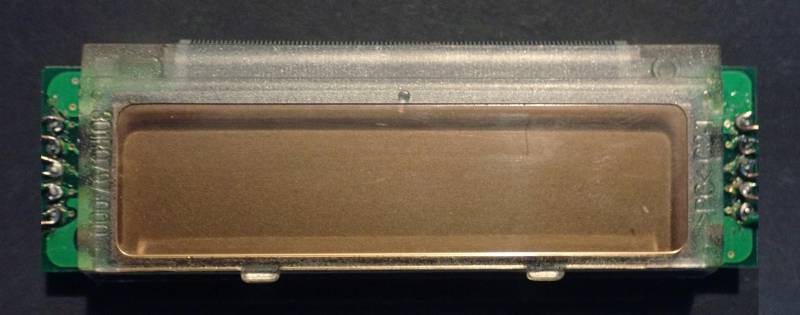

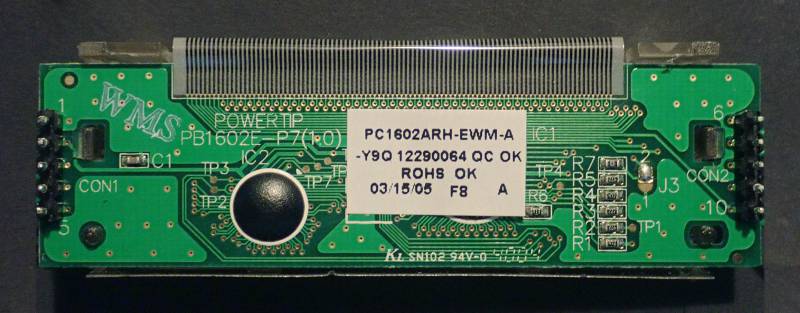

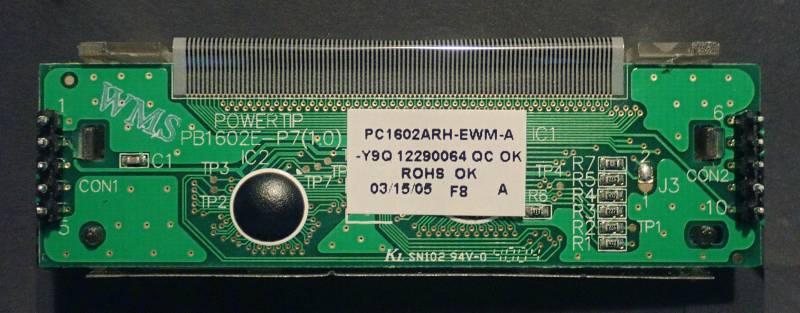

| Board IDs | WMS, Powertip PB1602E-P7, PC1602ARH-EWM-A-Y9Q |
| LCD type | positive |
| Polarizer type | reflective |
| Columns | 16 |
| Rows | 2 |
| Char matrix | 5×8 |
| Driver IC | Hitachi HD44780 compatible (CoG) |
| Backlight | - |
| Arduino driver | LiquidCrystal.h |
| Connector | pin header |
| Num Pins | 10 |
| Pin spacing | 0.1” |
| Module size | 81mm x 26mm |
| Connector pin-out | ||
|---|---|---|
| Pin# | Label | Description |
| 1 | GND | |
| 2 | Vcc | +5V |
| 3 | V5 | Contrast |
| 4 | RS | |
| 5 | R/W | |
| 6 | E | |
| 7 | D4 | |
| 8 | D5 | |
| 9 | D6 | |
| 10 | D7 | |

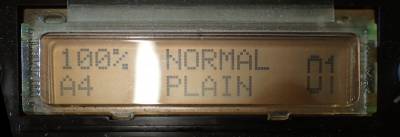

Examples :
