| LCD Description | |
|---|---|

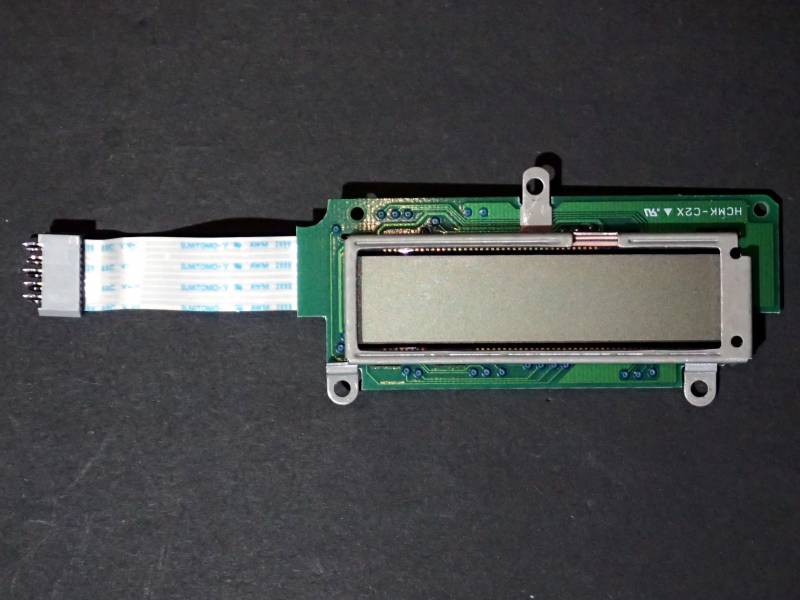

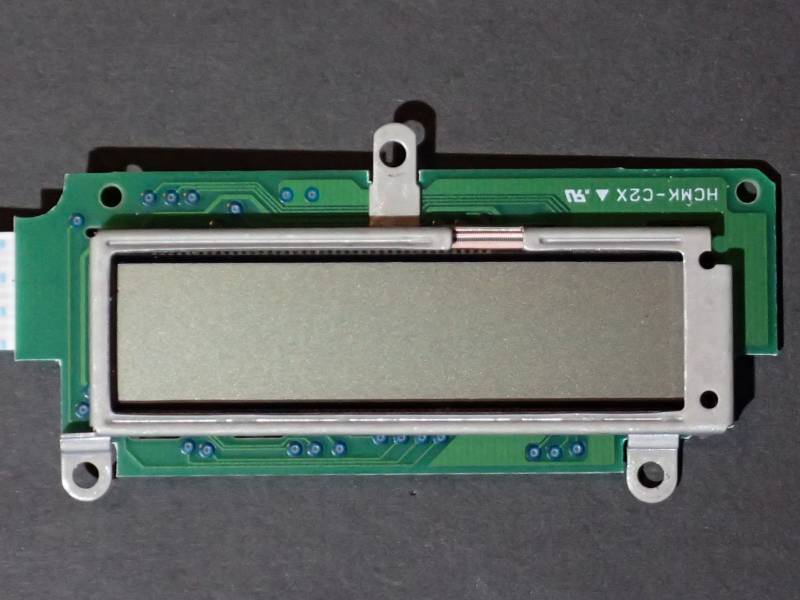

| Model | PSUP1034ZA |
| Manufacturer | Panasonic |
| Recovered from | Panasonic KX-T7330 phone |

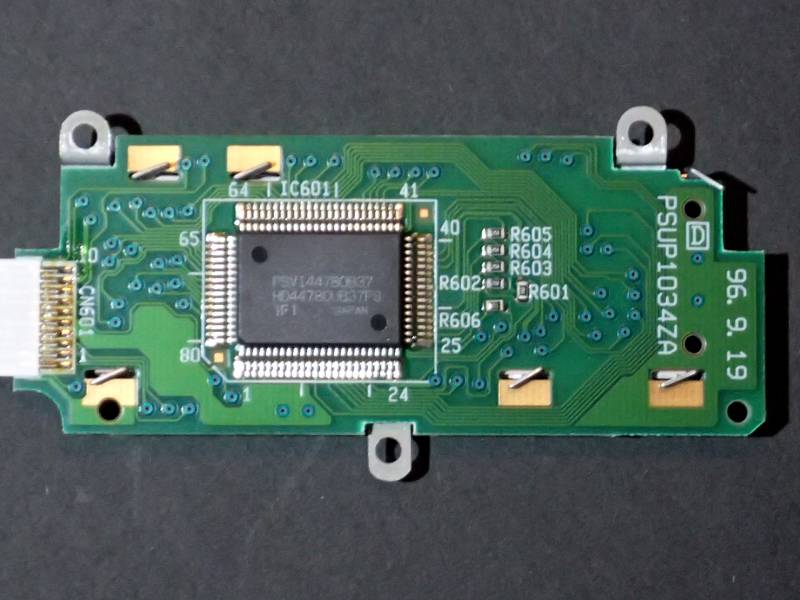

| Board IDs | PSUP1034ZA, HCMK-C2X |
| LCD type | posiitive |
| Polarizer type | reflective |
| Columns | 16 |
| Rows | 1 |

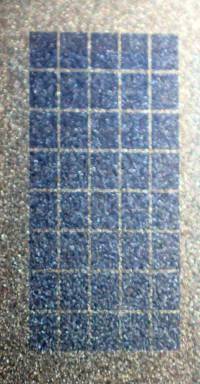

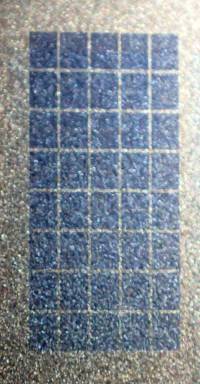

| Char matrix | 5×8 |

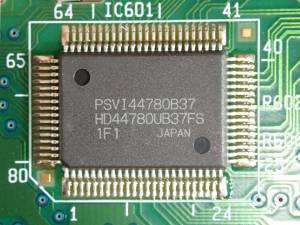

| Driver IC | Hitachi HD44780UB37FS |
| Backlight | - |
| Arduino driver | LiquidCrystal.h |
| Connector | PCB flex cable |
| Num Pins | 10 |
| Pin spacing | 1mm |
| Module size | mm |
| Connector pin-out | Arduino test rig | |||
|---|---|---|---|---|
| Pin# | IC pin | Label | Pin | colour |
| 1 | RS | |||
| 2 | R/W | |||
| 3 | E | |||
| 4 | DB4 | |||
| 5 | GND | |||
| 6 | DB5 | |||
| 7 | V5 | |||
| 8 | DB6 | |||
| 9 | VCC | |||
| 10 | DB7 | |||
References: https://www.youtube.com/watch?v=eneExrcs9u0
Examples :
