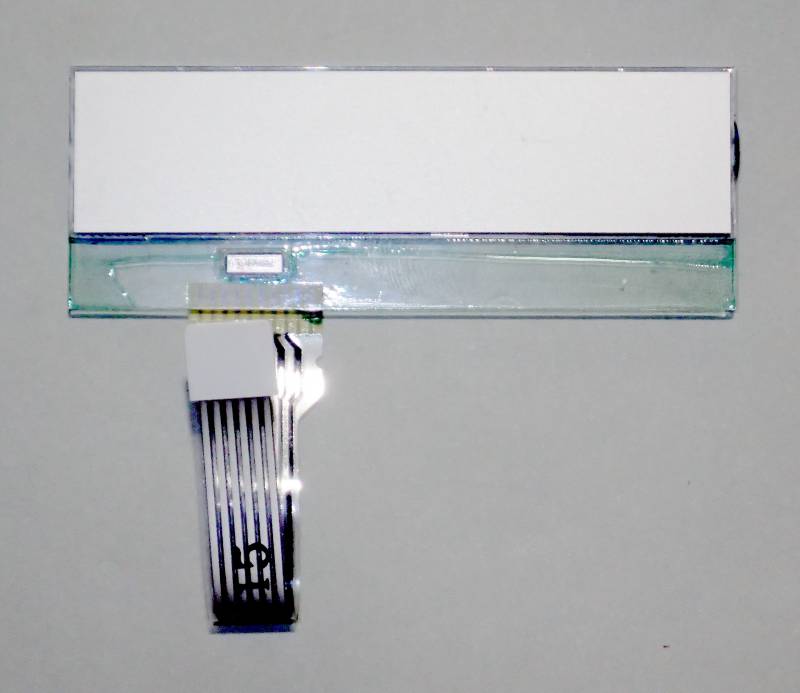

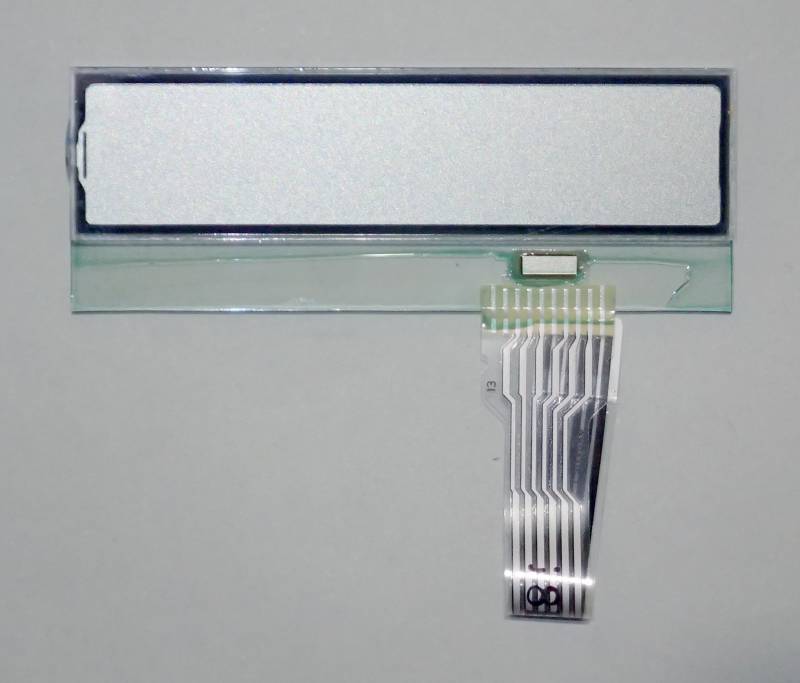

| LCD Description | |
|---|---|
| Model | L303646, j8B015 |
| Manufacturer | Brother |
| Recovered from | Brother DCP-150C |
| Board IDs | L303646, j8B015 |
| LCD type | positive |
| Polarizer type | reflective |
| Columns | 16 |
| Rows | 1 |
| Char matrix | |

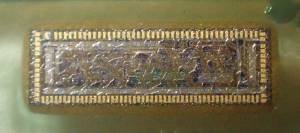

| Driver IC | |
| Backlight | - |
| Arduino driver | |

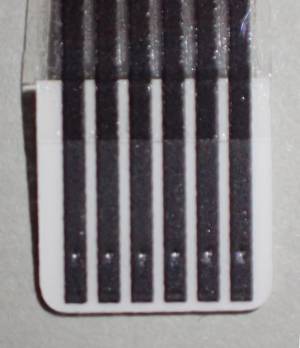

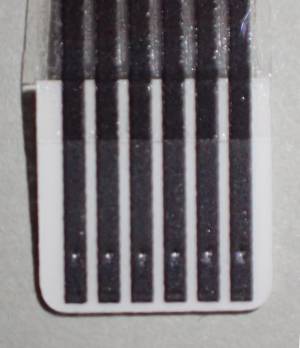

| Connector | PCB flex cable |
| Num Pins | 6 |
| Pin spacing | 1mm |
| Module size | mm |
| Connector pin-out | ||
|---|---|---|
| Pin# | Label | Description |
| 1 | ||
| 2 | ||
| 3 | ||
| 4 | ||
| 5 | ||
| 6 | ||
Examples :
