| LCD Description | |
|---|---|
| Model | 4035 |
| Manufacturer | Alcatel |
| Recovered from | Alcatel 4035 phone |
| LCD type | positive |
| Polarizer type | reflective |
| Columns | 40 |
| Rows | 2 |
| Char matrix | |
| Driver IC | NT3881DFG-521), ST7063C-QG |
| Backlight | - |
| Arduino driver | |
| Connector | |
| Num Pins | |
| Pin spacing | |
| Connector pin-out | Arduino test rig | ||
|---|---|---|---|
| Pin# | Label | Description | Pin |
| 1 | |||
| 2 | |||
| 3 | |||
| 4 | |||
| 5 | |||
| 6 | |||
| 7 | |||
| 8 | |||
| 9 | |||
| 10 | |||
| 11 | |||
| 12 | |||
| 13 | |||
| 14 | |||
| 15 | |||
| 16 | |||
| 17 | |||
| 18 | |||
| 19 | |||
| 20 | |||

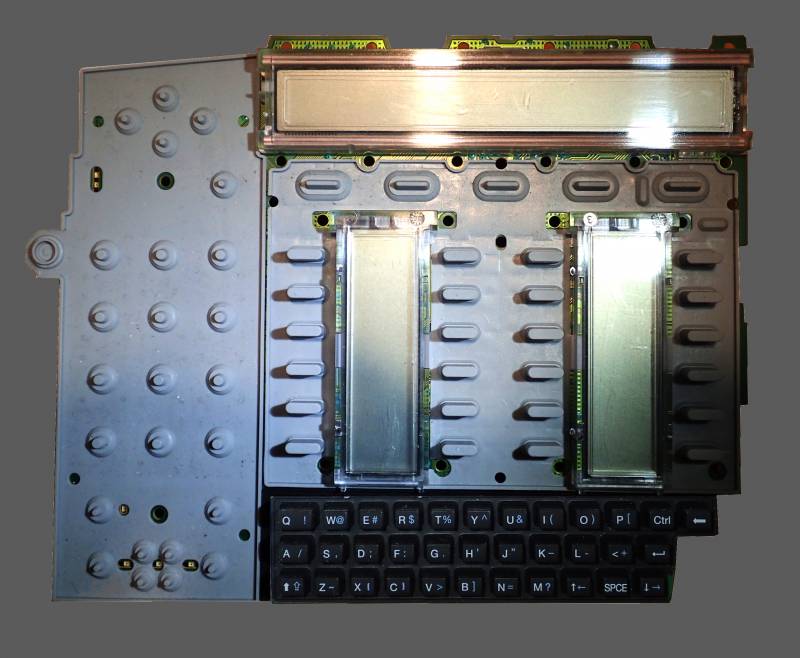

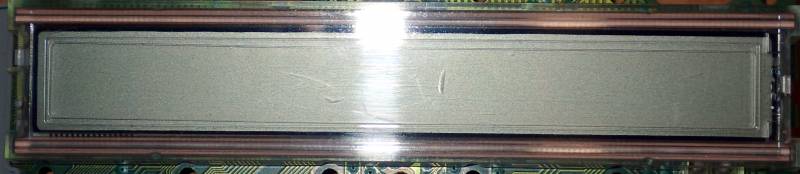

The phone had 3 LCD panels, one was a 40×2 alphanumeric LCD, the other two displayed two columns of bar icons. All LCDs are connected to the main board via conductive rubber strips, so difficult to use elsewhere. The LCD drivers appear to run off 5V, not sure where that is regulated on the board.
