| LCD Description | |
|---|---|
| Model | M220 |
| Manufacturer | Clover Display Ltd |

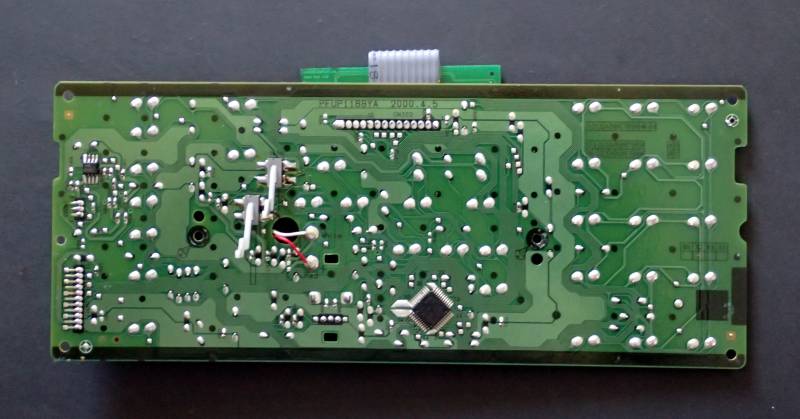

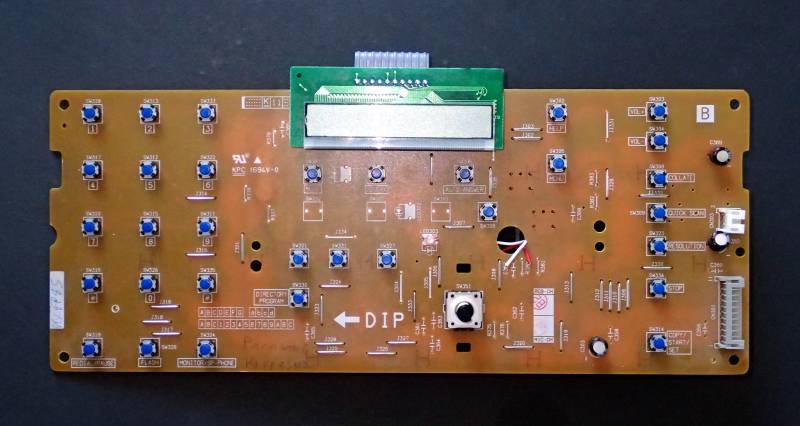

| Recovered from | Panasonic KX-FP85 fax |
| Board IDs | PFUP1188YA, Clover Display Ltd, M220 PCB V1.0, MC1368C, Multi |
| LCD type | positive |
| Polarizer type | reflective |
| Columns | 16 |
| Rows | 1 |
| Char matrix | 5×7 |
| Driver IC | |
| Backlight | - |
| Arduino driver | |
| Connector | pins |
| Num Pins | 10 |
| Pin spacing | 0.1“ |
| Module size | 72mm x 27mm |
| Connector pin-out | Arduino test rig | ||
|---|---|---|---|
| Pin# | Label | Pin | colour |
| 1 | GND | ||
| 2 | +5V | ||
| 3 | V0 | ||
| 4 | RS | ||
| 5 | R/W | ||
| 6 | E | ||
| 7 | D4 | ||
| 8 | D5 | ||
| 9 | D6 | ||
| 10 | D7 | ||
Examples :
