This is an old revision of the document!
| LCD Description | |
|---|---|
| Model | HP LJ 3300mfp |
| Manufacturer | Hewlett Packard |
| Recovered from | HP LJ 3300mfp printer |

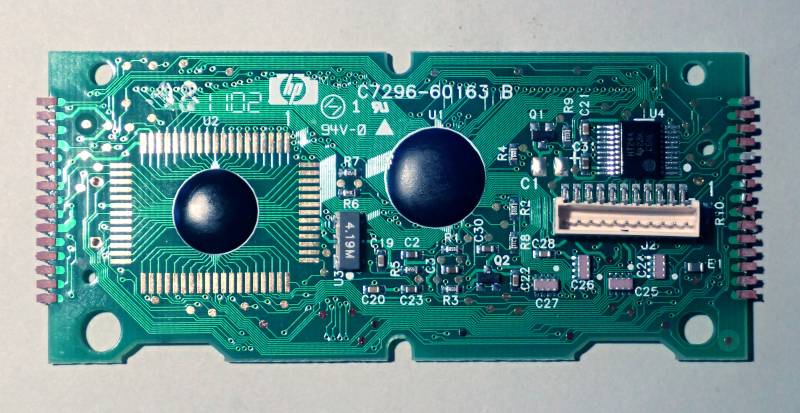

| Board IDs | hp C7296-60163 B, 84801-4, Key tronic |
| LCD type | positive |
| Polarizer type | reflective |
| Columns | 16 |
| Rows | 2 |
| Char matrix | 5×8 |
| Driver IC | (CoB) |
| Backlight | - |
| Arduino driver | |
| Connector | |
| Num Pins | 11 |
| Pin spacing | 1.5mm |
| Connector pin-out | Arduino test rig | ||
|---|---|---|---|
| Pin# | Label | Description | Pin |
| 1 | U2/36 | 5.14k | |
| 2 | U2/61 | 5.16k | |
| 3 | U2/6 | 5.17k | |
| 4 | Vcc | +3.3V | |
| 5 | U2/8 | 5.17k | |
| 6 | GND | ||
| 7 | U2/7 | 5.15k | |
| 8 | GND | ||
| 9 | U2/5 | 5.12k | |
| 10 | nc | ||
| 11 | U2/18,20,25 | 3.79k | |
Examples :
