This is an old revision of the document!
LCD Description |
|
|---|---|
| Model | CANON MX300/MX310 |
| Manufacturer | Canon |
| Recovered from | Canon MX300 printer |
| Board IDs | QM3-2759 |
| LCD type | positive |
| Polarizer type | reflective |
| Columns | 20 |
| Rows | 2 |
| Char matrix | 5×8 or 5×16? 1) |
| Driver IC | Hitachi HD44780 compatible (CoG) |
| Backlight | - |
| Arduino driver | LiquidCrystal.h |
| Connector | PCB flex cable |
| Num Pins | 14 |
| Pin spacing | 0.04“ |
The two rows of 20 characters have no space row between them, so that using the 8 programmable characters you can create characters that span both rows. The MX300 displayed a mix of single and double height digits, but I have no information on whether the controller supports this or whether they just used programmable characters. During testing I tried setting double height fonts but to no useful effect. I implemented a simple double height numeric character set using the programmable characters and one existing character. You could design a full set of double height alpha-numeric characters and reprogram the 8 programmable characters on the fly to display any four of them at once. You could extend the idea to 2 double height, double width characters.
| Arduino test rig | |||
|---|---|---|---|
| Pin# | Label | Measured | Pin |
| 1 | R/W | 0V | |
| 2 | RS | 0V | |
| 3 | E | 0V | |
| 4 | DB0 | 3.26V | |
| 5 | DB1 | 3.26V | |
| 6 | DB2 | 3.26V | |
| 7 | DB3 | 3.26V | |
| 8 | DB4 | 3.26V | |
| 9 | DB5 | 3.26V | |
| 10 | DB6 | 3.26V | |
| 11 | DB7 | 3.26V | |
| 12 | Gnd | 0V | |
| 13 | Vdd | 3.27V | |
| 14 | Vlcd | 4.66V | |
Pin assignments verified 25/12/18.
Examples :
Example of double height numeric characters displayed by the mx300.
Example of two characters with all bits lit showing how they form one continuous block.

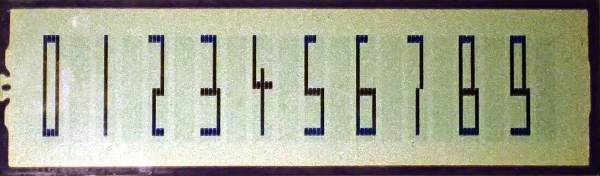

A double height numeric character set implemented using sets of two programmable characters.
The programmable characters used to produce this double height numeric digit set.

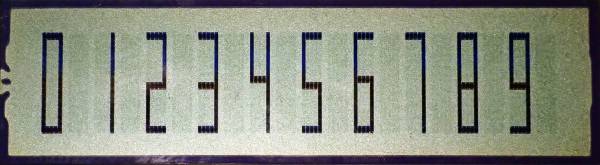

Another double height numeric character set implemented using sets of two programmable characters.
The programmable characters and character 0x15 used to produce this double height numeric digit set.

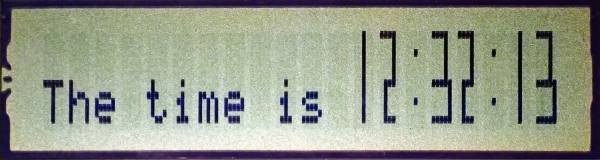

Another double height numeric character set implemented using sets of two programmable characters.
The programmable characters used along with 3 standard characters to produce this double height numeric digit set and colon.
