LCD Description |
|
|---|---|
| Model | CANON MX300/MX310 |
| Manufacturer | Canon |
| Recovered from | Canon MX300 printer |

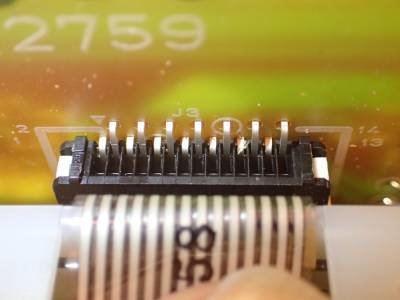

| Board IDs | QM3-2759 |
| LCD type | positive |
| Polarizer type | reflective |
| Columns | 20 |
| Rows | 2 |
| Char matrix | 5×8 or 5×16 1) |

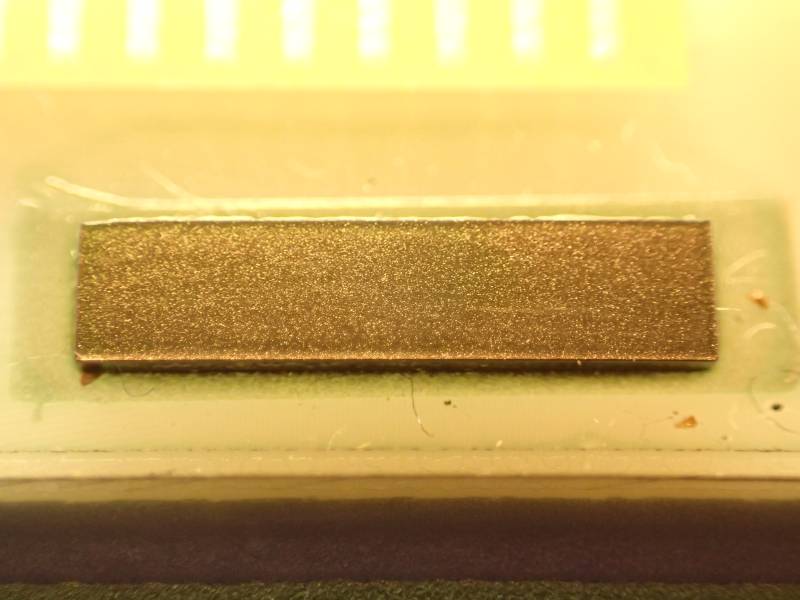

| Driver IC | (CoG) |
| Backlight | - |
| Arduino driver | |

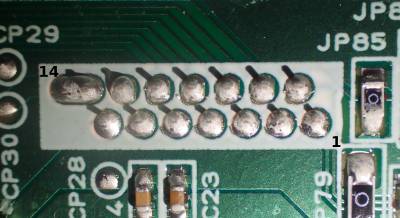

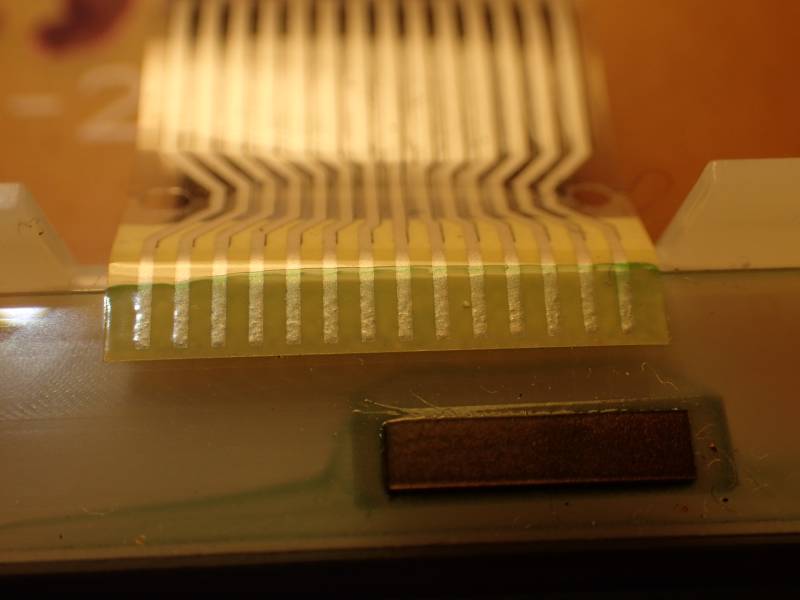

| Connector | PCB flex cable |
| Num Pins | 14 |
| Pin spacing | 0.04“ |
| Arduino test rig | |||
|---|---|---|---|
| Pin# | Label | Measured | Pin |
| 1 | R/W | 0V | |
| 2 | RS | 0V | |
| 3 | E | 0V | |
| 4 | DB0? | 3.26V | |
| 5 | DB1? | 3.26V | |
| 6 | DB2? | 3.26V | |
| 7 | DB3? | 3.26V | |
| 8 | DB4? | 3.26V | |
| 9 | DB5? | 3.26V | |
| 10 | DB6? | 3.26V | |
| 11 | DB7? | 3.26V | |
| 12 | Gnd | 0V | |
| 13 | Vdd? | 3.27V | |
| 14 | 4.66V | ||

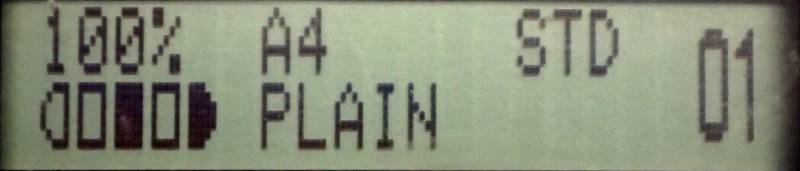

Examples :
1)

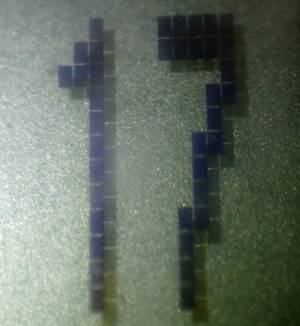

can display mix of single and double height characters (or maybe the MX300 is just using the programmable character set
