LCD Description |
|
|---|---|
| Model | CANON MX300/MX310 |
| Manufacturer | Canon |
| Recovered from | Canon MX300 printer |
| LCD type | positive |
| Polarizer type | reflective |
| Columns | 20 |
| Rows | 2 |
| Char matrix | 5×7 1) |
| Driver IC | mounted on LCD glass (CoG) |
| Backlight | - |
| Arduino driver | |

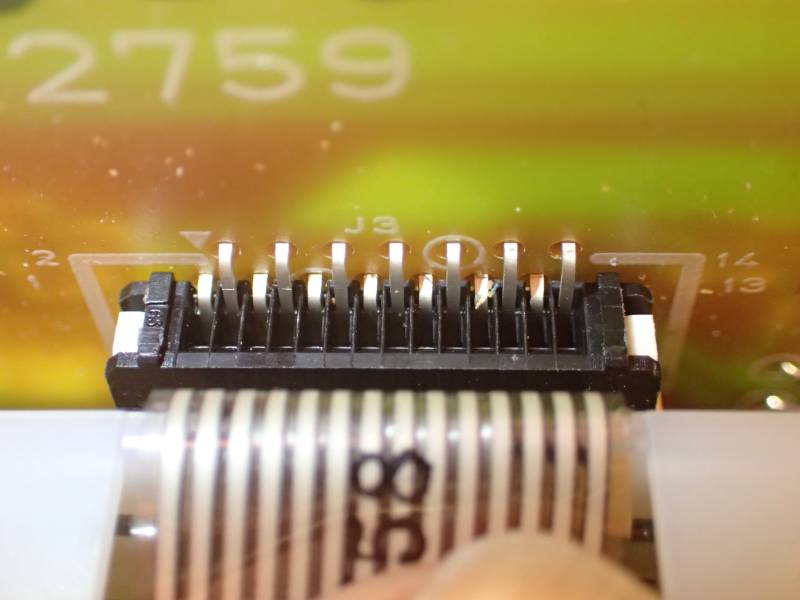

| Connector | PCB flex cable |
| Num Pins | 14 |
| Pin spacing | 0.04“ |
| Arduino test rig 2) | |||||
|---|---|---|---|---|---|
| Pin# | IC pin | Label | Measured | Pin | colour |
| 1 | E, R/W or RS? | 0V | |||
| 2 | E, R/W or RS? | 0V | |||
| 3 | E, R/W or RS? | 0V | |||
| 4 | DB0? | 3.26V | |||
| 5 | DB1? | 3.26V | |||
| 6 | DB2? | 3.26V | |||
| 7 | DB3? | 3.26V | |||
| 8 | DB4? | 3.26V | |||
| 9 | DB5? | 3.26V | |||
| 10 | DB6? | 3.26V | |||
| 11 | DB7? | 3.26V | |||
| 12 | Gnd | 0V | |||
| 13 | Vcc? | 3.27V | |||
| 14 | 4.66V | ||||
Examples :
