Stepper Description
Model D6NB (42S1S22D6NB)
Manufacturer NMB-MAT
Drive method bipolar
Number of phases 2
Winding colours white-white, grey-black
Step angle°/step-
VoltageV24
CurrentA/phase-
Winding resistanceohm/phase14
InductancemH/phase-
Holding torquemN*m-
Detent torquemN*m-
Rotor inertiag*cm*cm-
Weightg-
Insulation Class -
Insulation resistance -
Dielectric strength -
Operating temperature range°C-
Allowable temperature rise°-



Examples

Recovered from Panasonic UF6100 :

1)

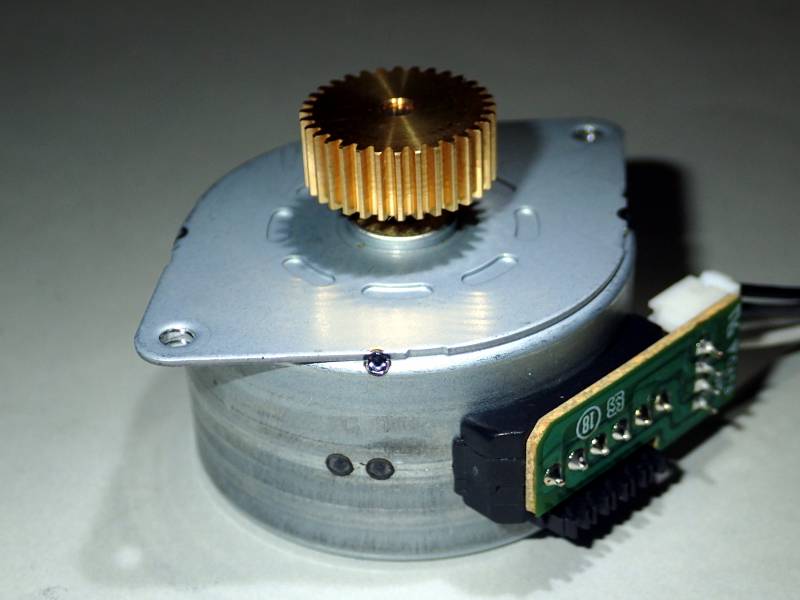

D6NB

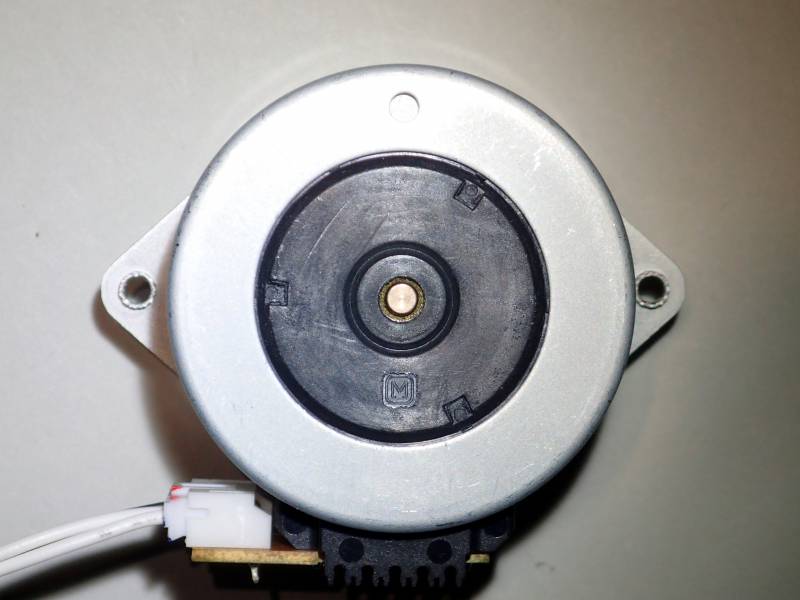

D6NB

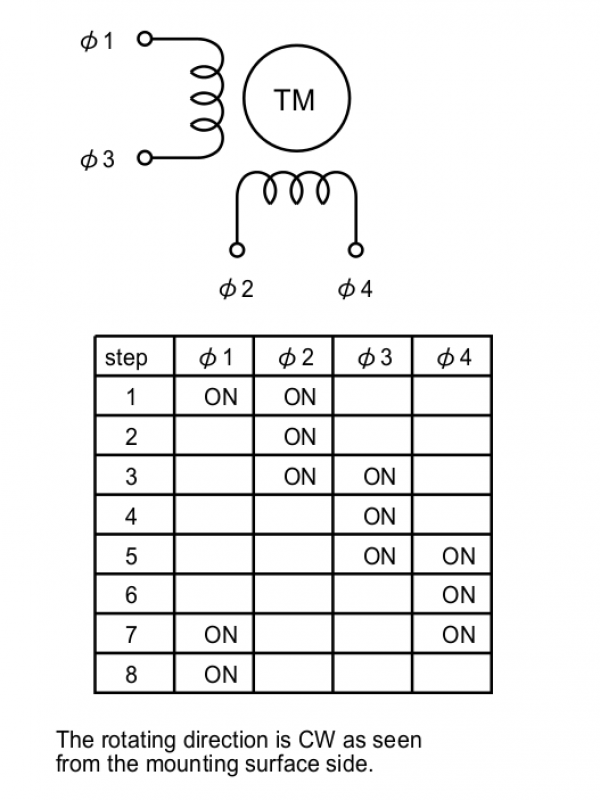

D6NB

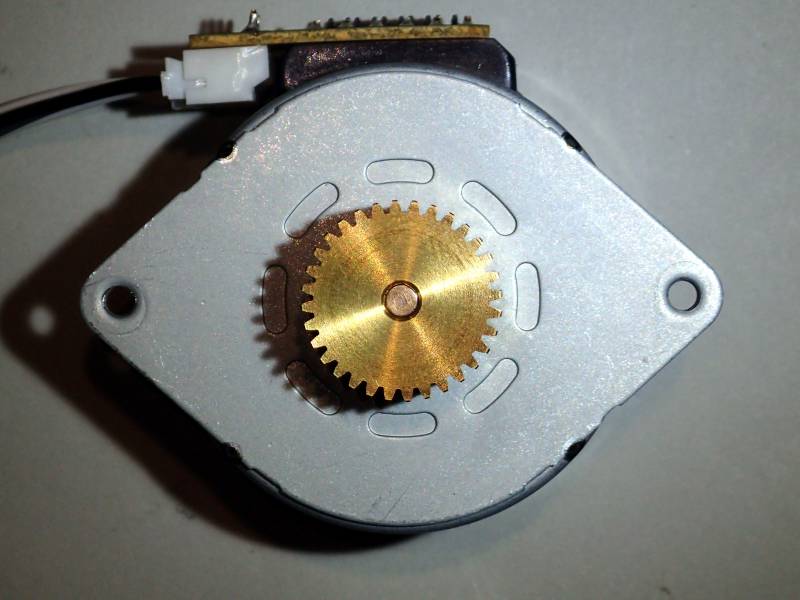

D6NB
