| Stepper Description | ||
|---|---|---|
| Model | M42 SP-1 | |
| Manufacturer | Mitsumi | |
| Drive method | unipolar 6 wire | |
| Number of phases | 4 | |
| Winding colours | yellow-red-orange, black-red-brown | |
| Step angle | °/step | 7.5 |
| Voltage | V | 24 1) |
| Current | A/phase | - |
| Winding resistance | ohm/phase | 35 |
| Inductance | mH/phase | - |
| Holding torque | mN*m | - |
| Detent torque | mN*m | - |
| Rotor inertia | g*cm*cm | - |
| Weight | g | - |
| Insulation Class | E | |
| Insulation resistance | - | |
| Dielectric strength | - | |
| Operating temperature range | °C | - |
| Allowable temperature rise | ° | - |
Examples

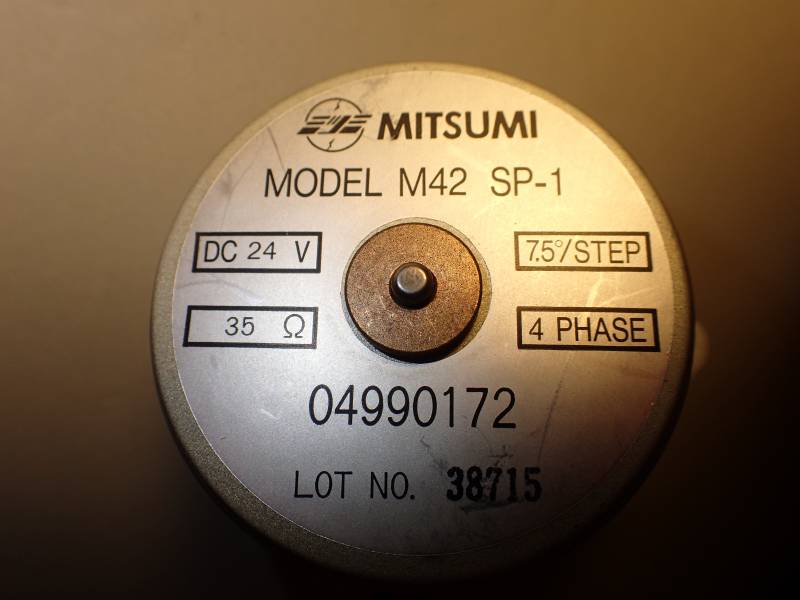

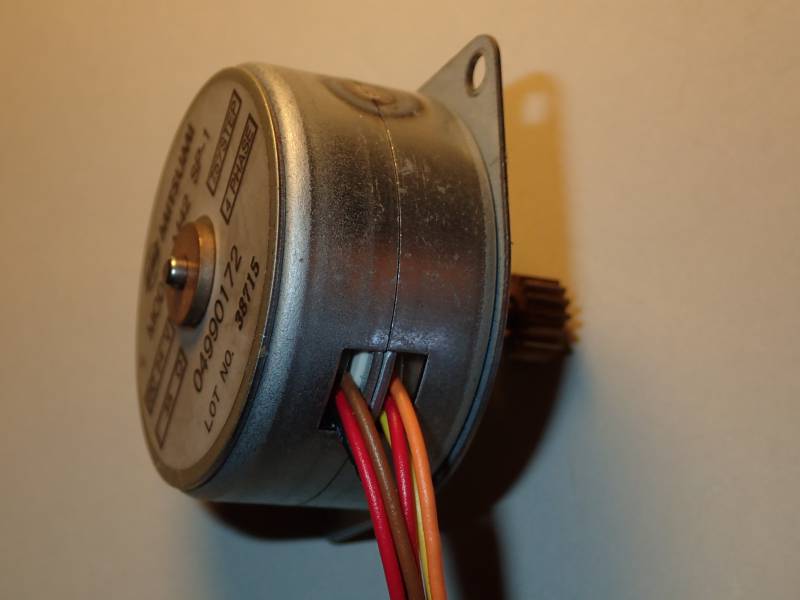

Recovered from unknown equipment :
1)
working voltage 21.6~26.4V
