| Stepper Description | ||
|---|---|---|

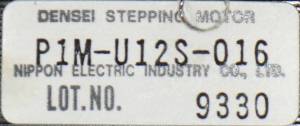

| Model | Densei P1M-U12S-016 | |
| Manufacturer | Nippon Electric | |
| Drive method | unipolar 6 wire? | |
| Number of phases | 4? | |

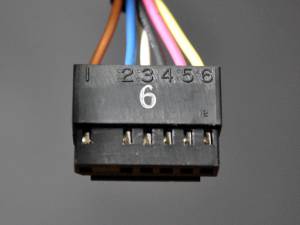

| Winding colours | yellow-orange-white,red-black-blue | |
| Step angle | °/step | 1.8 |
| Voltage | V | - |
| Current | A/phase | - |
| Winding resistance | ohm/phase | 70 |
| Inductance | mH/phase | - |
| Holding torque | mN*m | - |
| Detent torque | mN*m | - |
| Rotor inertia | g*cm*cm | - |
| Height | mm | 31.5 |
| Width | mm | 42 (Nema 17) |
| Shaft length | mm | 22 |
| Shaft diameter | mm | 5 |
| Weight | g | - |
| Insulation Class | - | |
| Insulation resistance | - | |
| Dielectric strength | - | |
| Operating temperature range | °C | - |
| Allowable temperature rise | ° | - |
Examples

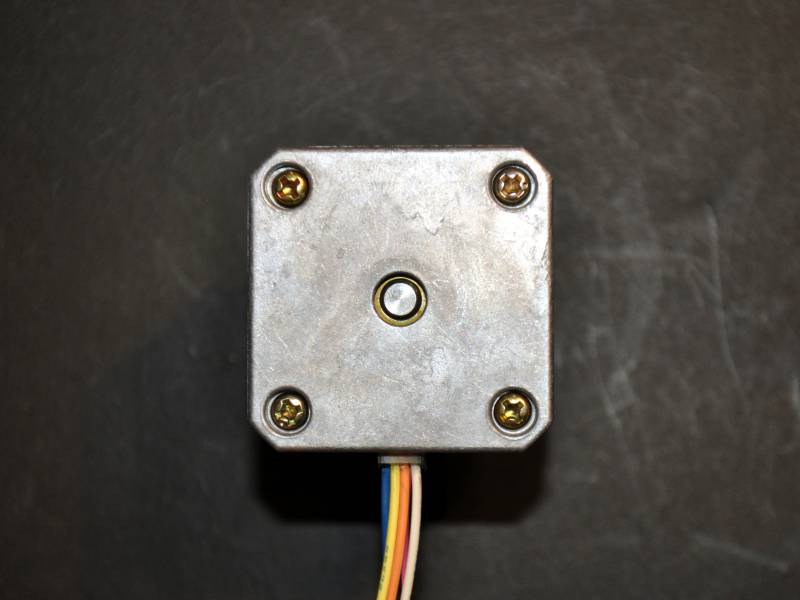

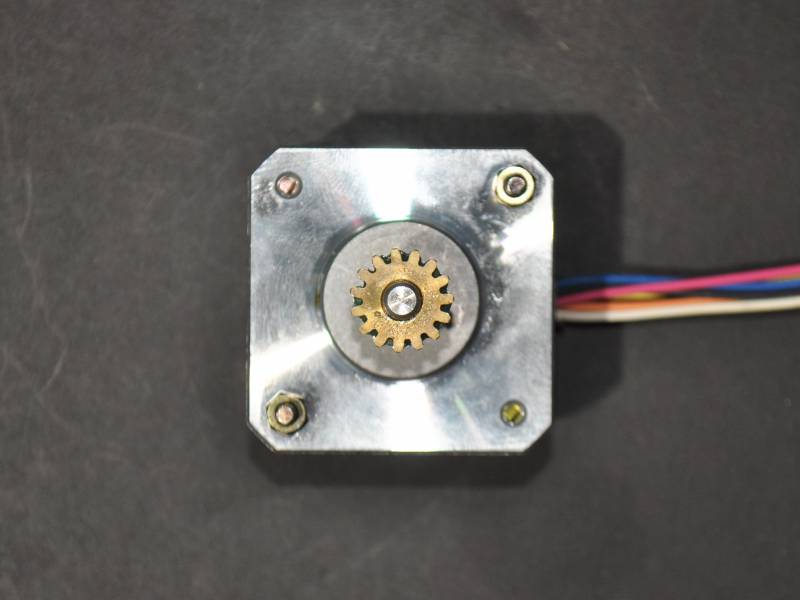

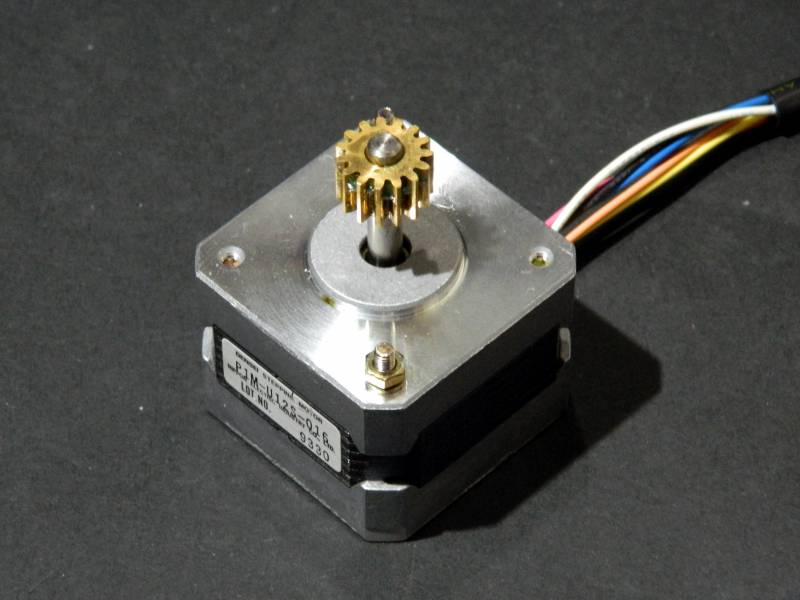

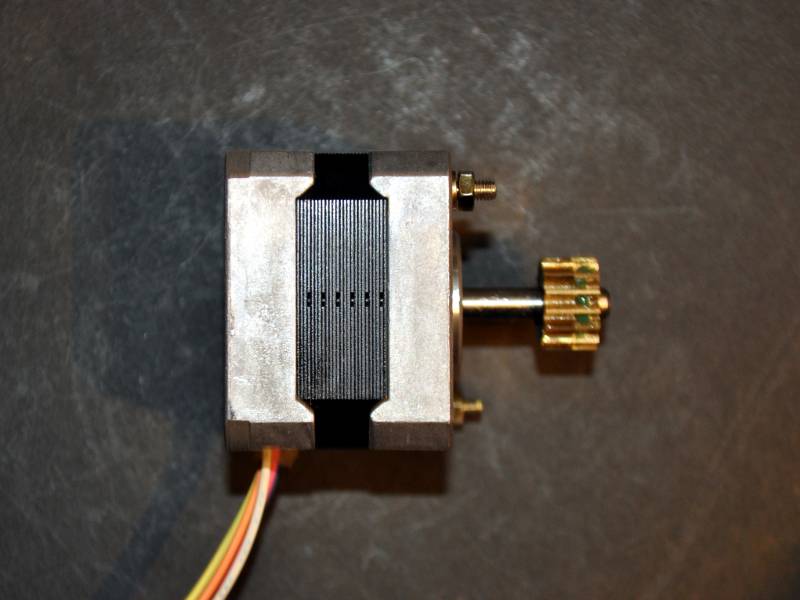

Recovered from Panasonic KX-B550SZ “Panaboard”:
