Stepper Motor Data
Small
Square
Round
Ben Wirz archive
Casa archive
| Stepper Description | ||
|---|---|---|
| Model | 1-541-326-12 08BJ-H031 | |
| Manufacturer | Sony, Minebea | |
| Drive method | bipolar | |
| Number of phases | 2 | |
| Winding colours | black-brown, orange-yellow | |
| Step angle | °/step | 18 |
| Voltage | V | 5? |
| Current | A/phase | - |
| Winding resistance | ohm/phase | 93 |
| Inductance | mH/phase | - |
| Holding torque | mN*m | - |
| Detent torque | mN*m | - |
| Rotor inertia | g*cm*cm | - |
| Weight | g | - |
| Insulation Class | - | |
| Insulation resistance | - | |
| Dielectric strength | - | |
| Operating temperature range | °C | - |
| Allowable temperature rise | ° | - |
Examples

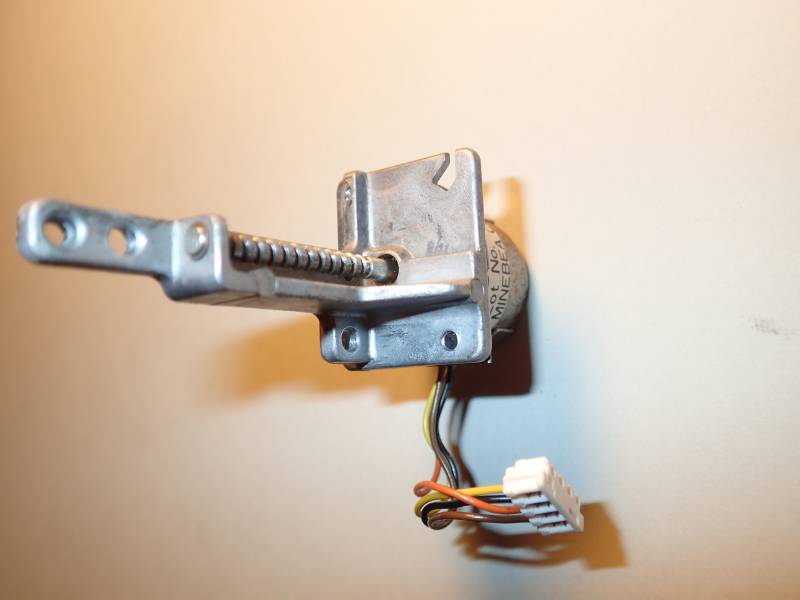

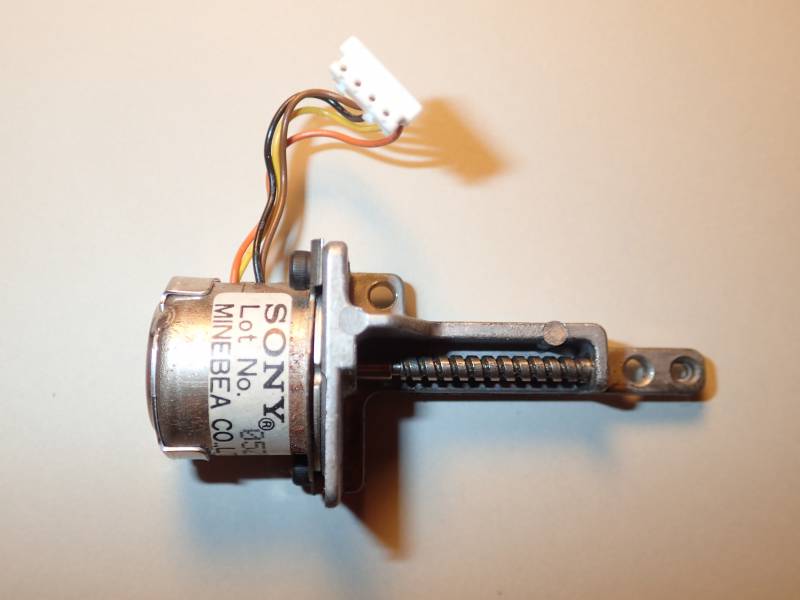

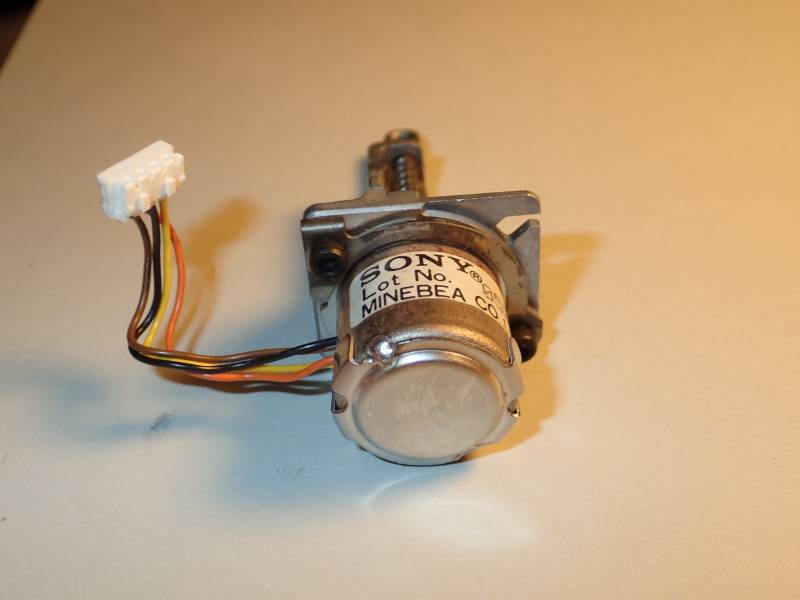

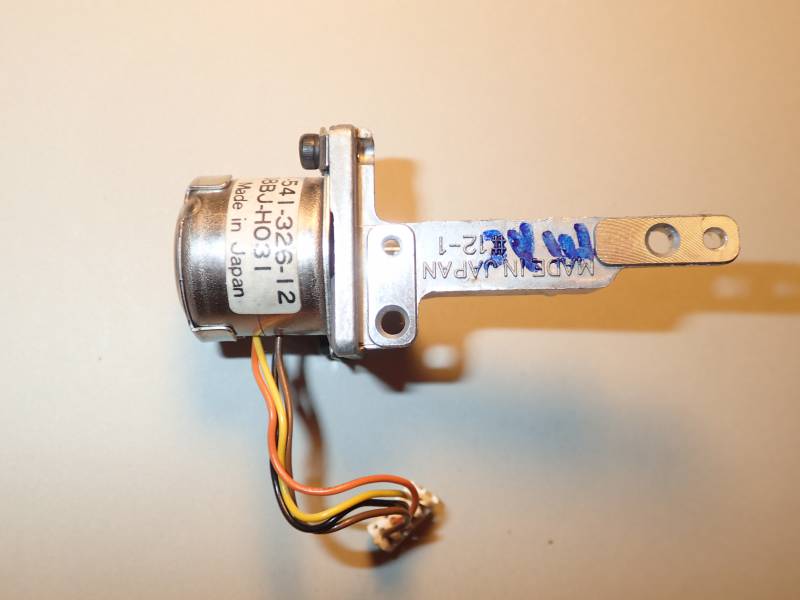

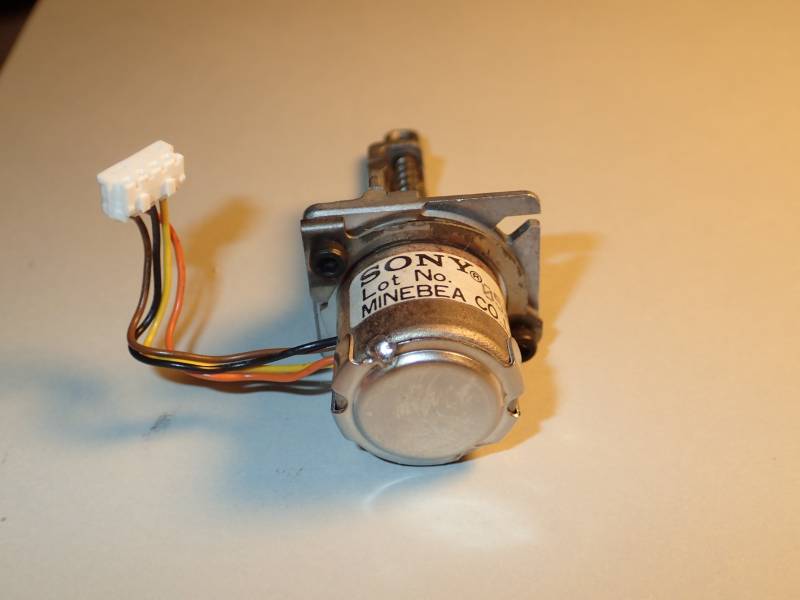

Head positioning motors recovered from Apple Macintosh floppy disk drive :
