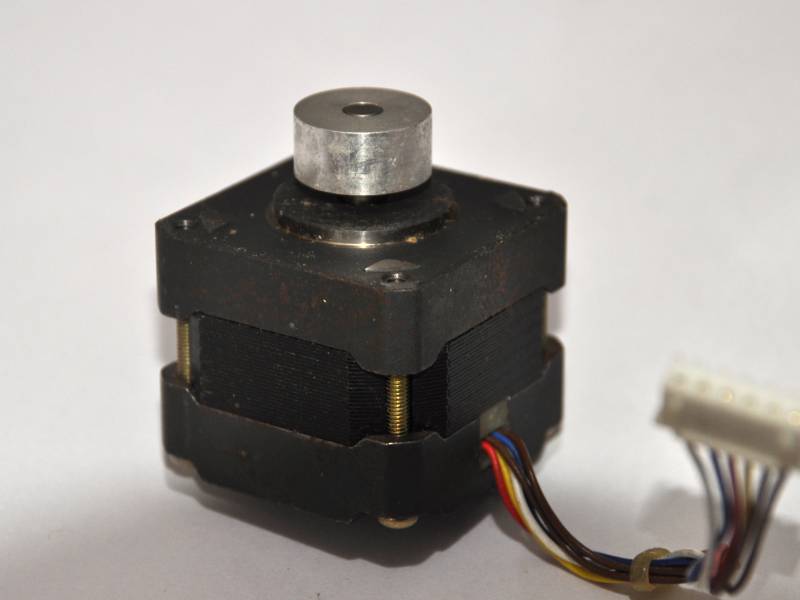

| Stepper Description | ||
|---|---|---|
| Model | TEAC 14769070-10 | |
| Manufacturer | Shinano Kenshi | |
| Drive method | unipolar 6 wire | |
| Number of phases | 4 | |
| Winding colours | white-brown-red, blue-brown-yellow | |
| Step angle | °/step | 1.8 |
| Voltage | V | 12? |
| Current | A/phase | - |
| Winding resistance | ohm/phase | 70 |
| Inductance | mH/phase | - |
| Holding torque | mN*m | - |
| Detent torque | mN*m | - |
| Rotor inertia | g*cm*cm | - |
| Height | mm | 32 |
| Width | mm | 39 (Nema 15) |
| Shaft length | mm | 10 |
| Shaft diameter | mm | 5 |
| Weight | g | - |
| Insulation Class | - | |
| Insulation resistance | - | |
| Dielectric strength | - | |
| Operating temperature range | °C | - |
| Allowable temperature rise | ° | - |
Examples

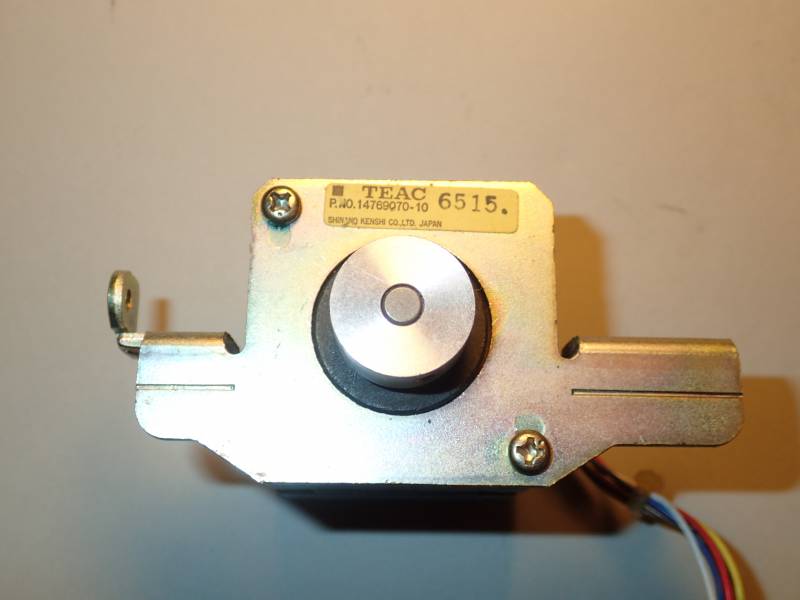

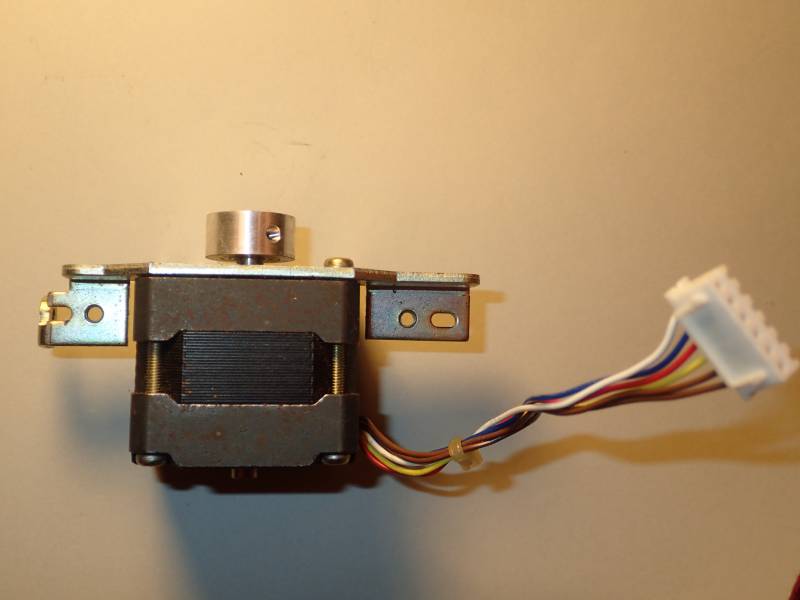

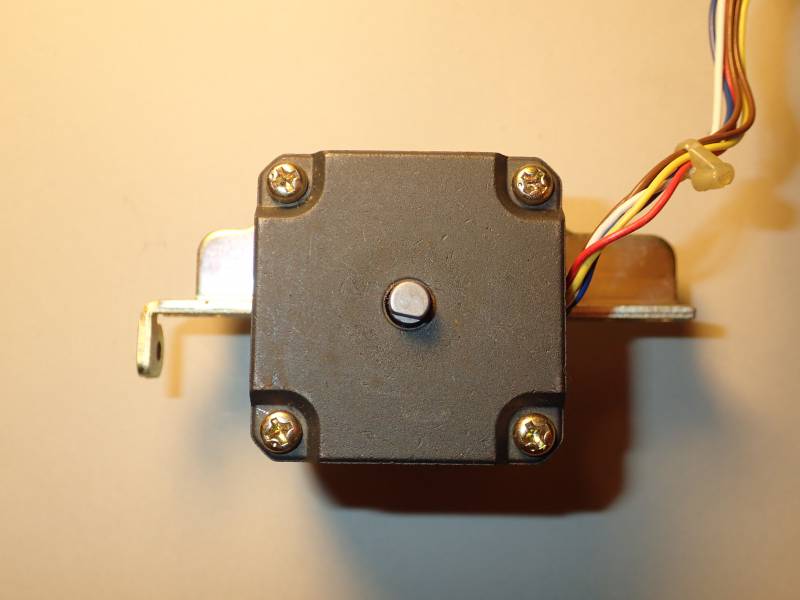

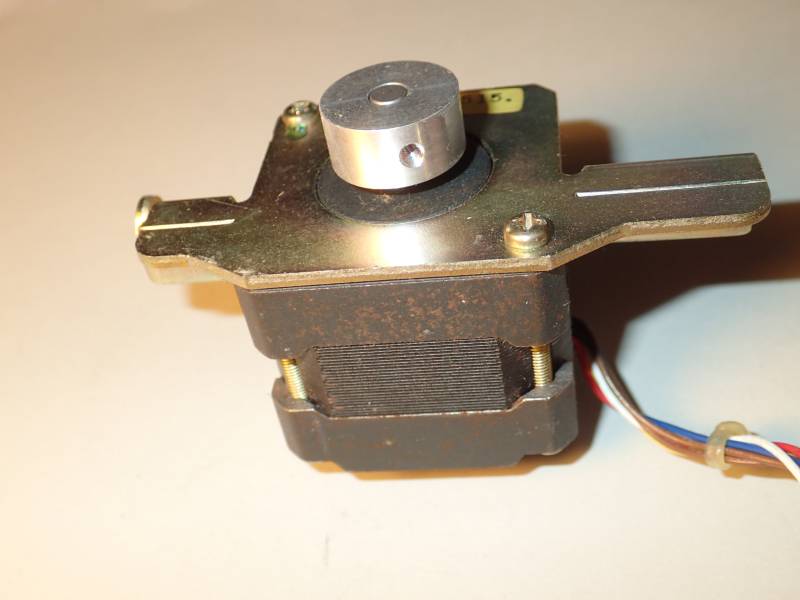

From 5-1/4 inch floppy drive (head positioning motor) :
Other resources
- Pinout investigation, but theirs has the two brown lines connected together.
