| Stepper Description | ||
|---|---|---|
| Model | 037404 | |
| Manufacturer | Brother | |
| Drive method | 4 wire bipolar | |
| Number of phases | 2 | |
| Winding colours | white | |
| Step angle | °/step | - |
| Voltage | V | - |
| Current | A/phase | - |
| Winding resistance | ohm/phase | 8.5 |
| Inductance | mH/phase | - |
| Holding torque | mN*m | - |
| Detent torque | mN*m | - |
| Rotor inertia | g*cm*cm | - |
| Weight | g | - |
| Insulation Class | - | |
| Insulation resistance | - | |
| Dielectric strength | - | |
| Operating temperature range | °C | - |
| Allowable temperature rise | ° | - |
Examples

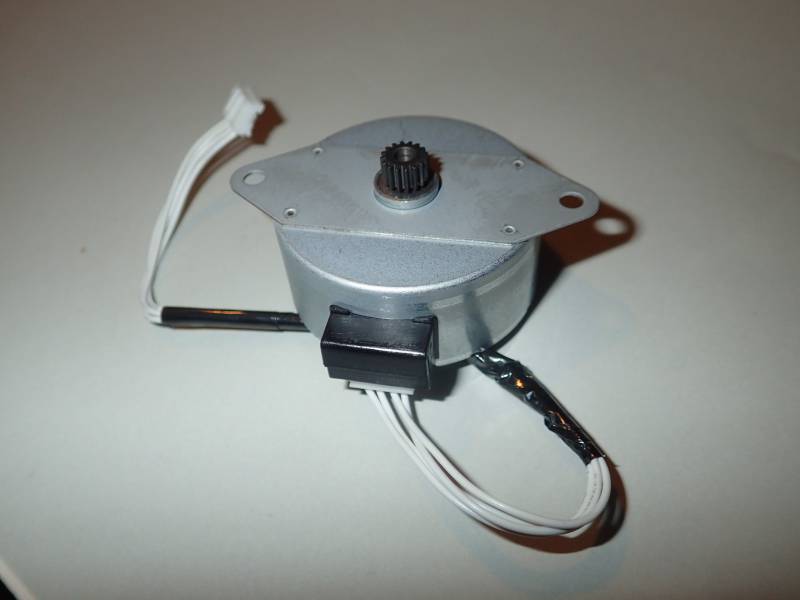

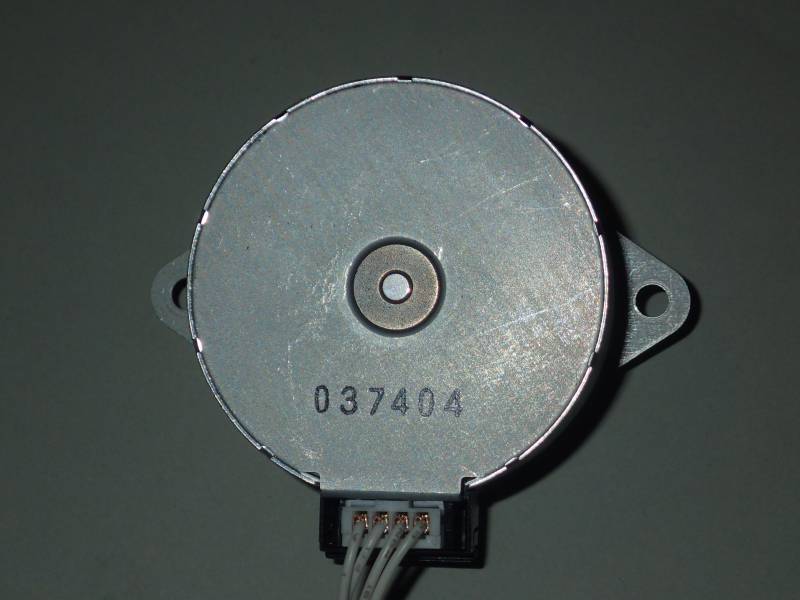

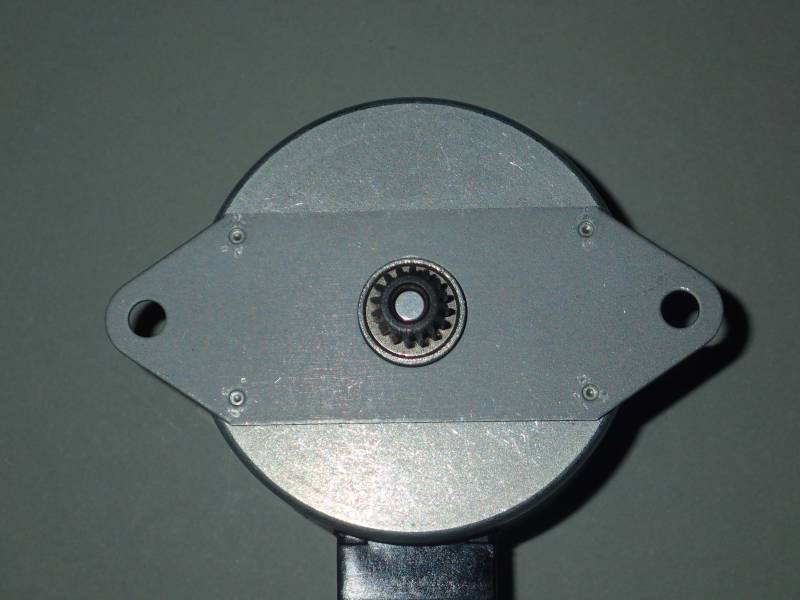

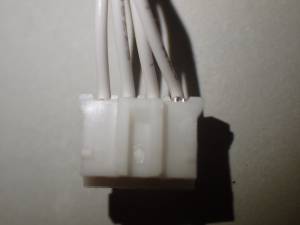

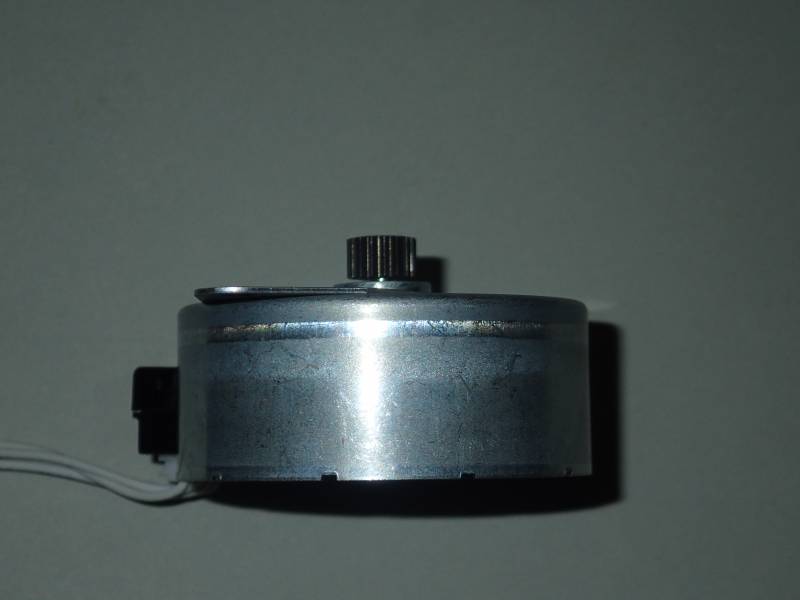

Recovered from Brother FAX-2820:
