| Stepper Description | ||
|---|---|---|
| Model | KP39HM2-028 FMD0098184 | |
| Manufacturer | Matsushita | |
| Drive method | bipolar | |
| Number of phases | 2 | |
| Winding colours | red-blue, white-yellow | |
| Step angle | °/step | 1.8 |
| Voltage | V | 12 |
| Current | A/phase | 0.08 |
| Winding resistance | ohm/phase | 145 |
| Inductance | mH/phase | - |
| Holding torque | mN*m | - |
| Detent torque | mN*m | - |
| Rotor inertia | g*cm*cm | - |
| Height | mm | 33 |
| Width | mm | 39 (Nema 15) |
| Shaft length | mm | 14 |
| Shaft diameter | mm | 5 |
| Weight | g | - |
| Insulation Class | - | |
| Insulation resistance | - | |
| Dielectric strength | - | |
| Operating temperature range | °C | - |
| Allowable temperature rise | ° | - |
Examples

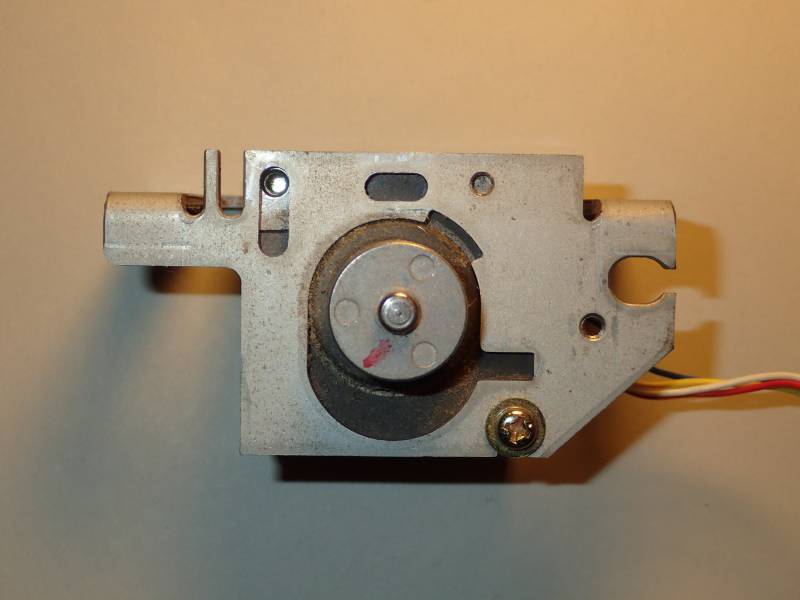

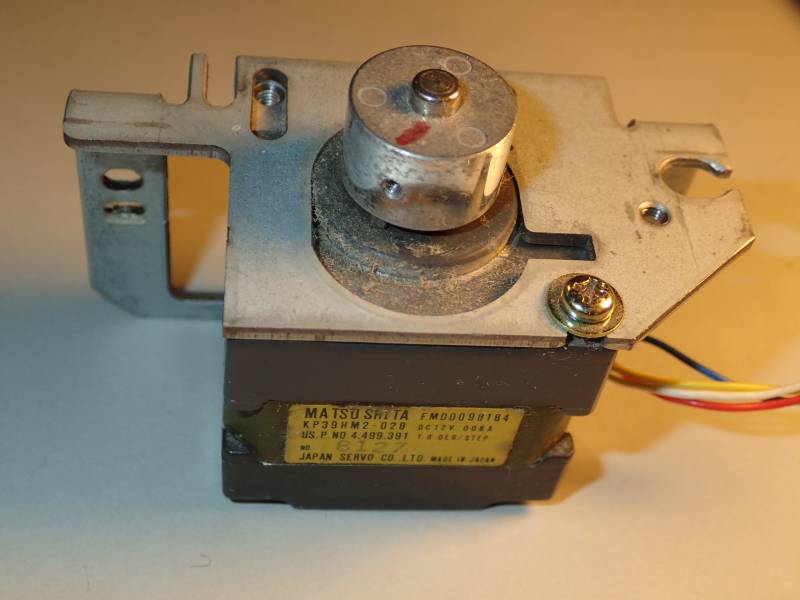

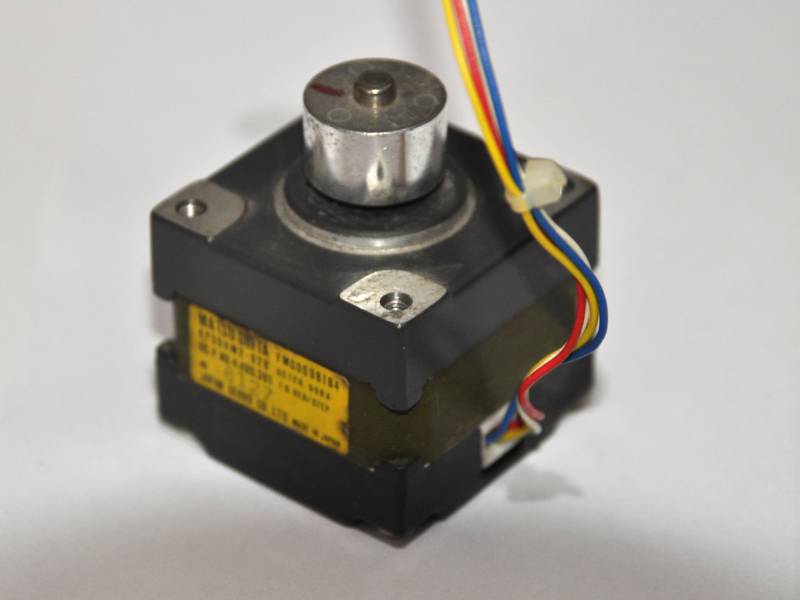

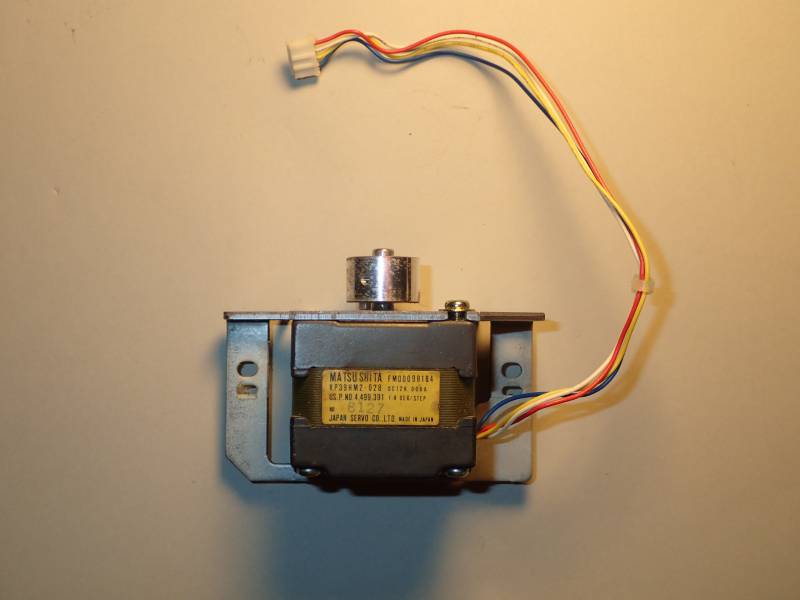

Recovered from unknown equipment :
