Stepper Motor Data
Small
Square
Round
Ben Wirz archive
Casa archive
| Stepper Description | ||
|---|---|---|

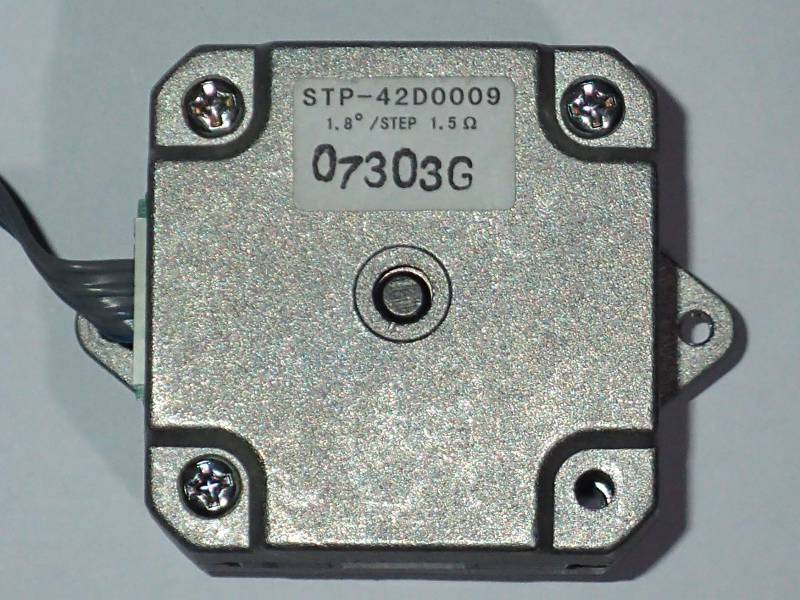

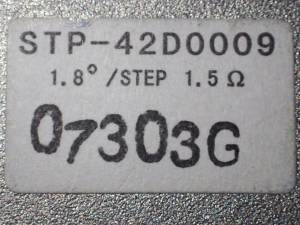

| Model | STP-42D0009 | |
| Manufacturer | Shinano Kenshi? | |
| Drive method | bipolar | |
| Number of phases | 2 | |

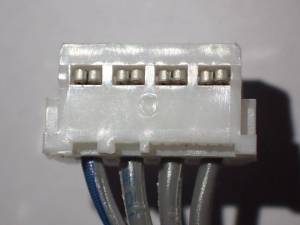

| Winding colours | blue-grey, grey-grey (adjacent wires) | |
| Step angle | °/step | 1.8 |
| Voltage | V | - |
| Current | A/phase | - |
| Winding resistance | ohm/phase | 1.5 |
| Inductance | mH/phase | - |
| Holding torque | mN*m | - |
| Detent torque | mN*m | - |
| Rotor inertia | g*cm*cm | - |
| Height | mm | 27.5 |
| Width | mm | 42 (Nema 17) |

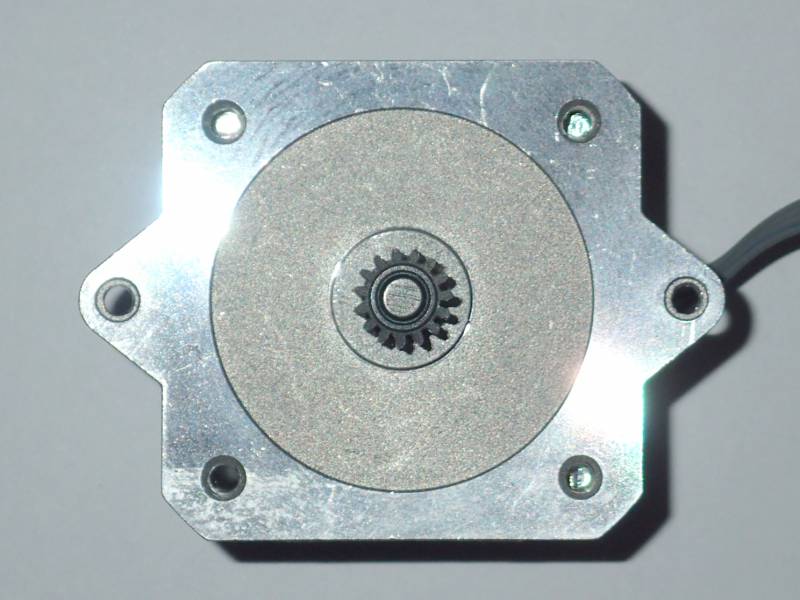

| Shaft length | mm | 7 |
| Shaft diameter | mm | 4 |
| Weight | g | - |
| Insulation Class | - | |
| Insulation resistance | - | |
| Dielectric strength | - | |
| Operating temperature range | °C | - |
| Allowable temperature rise | ° | - |
Examples

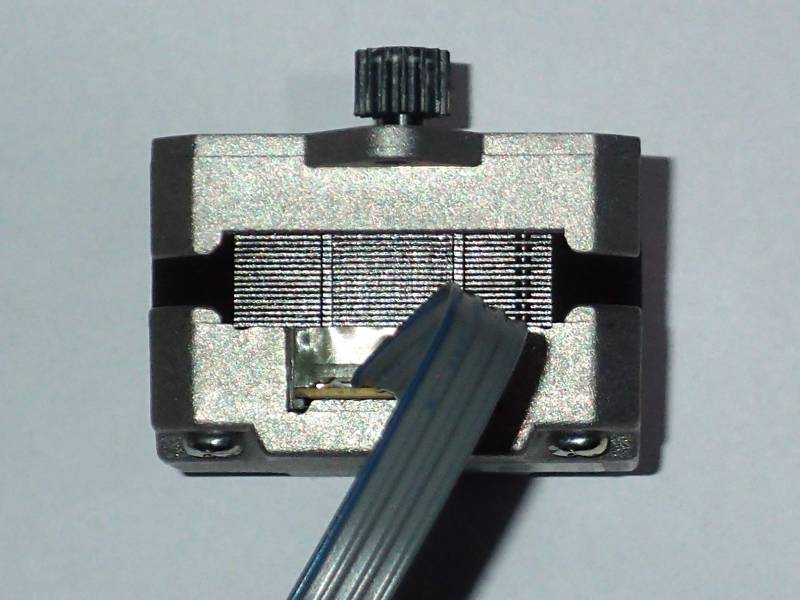

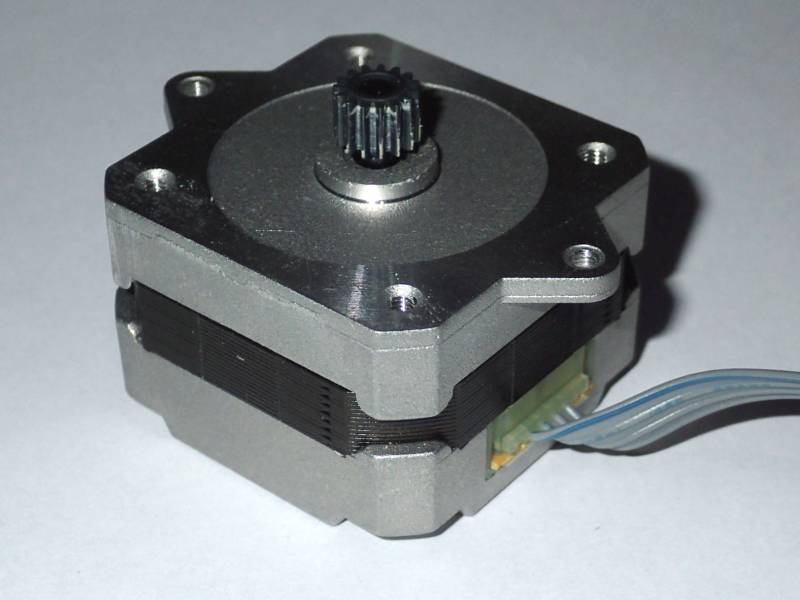

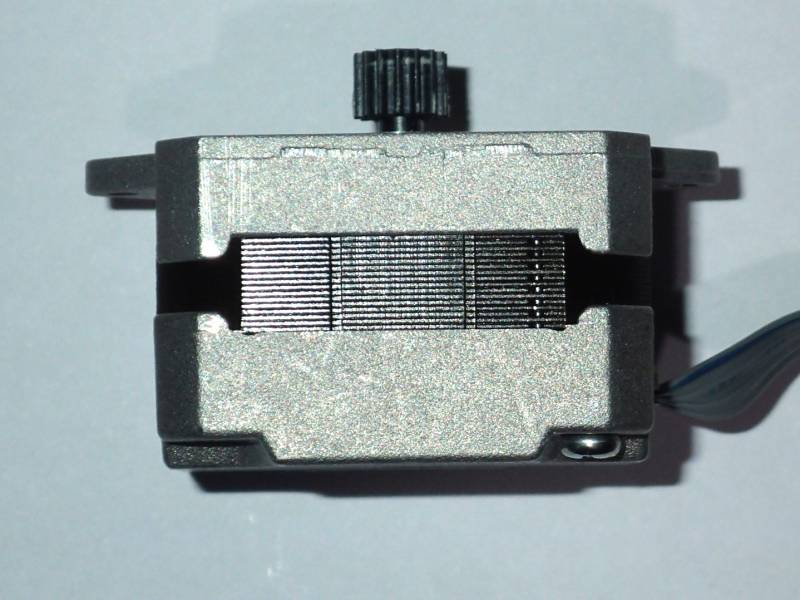

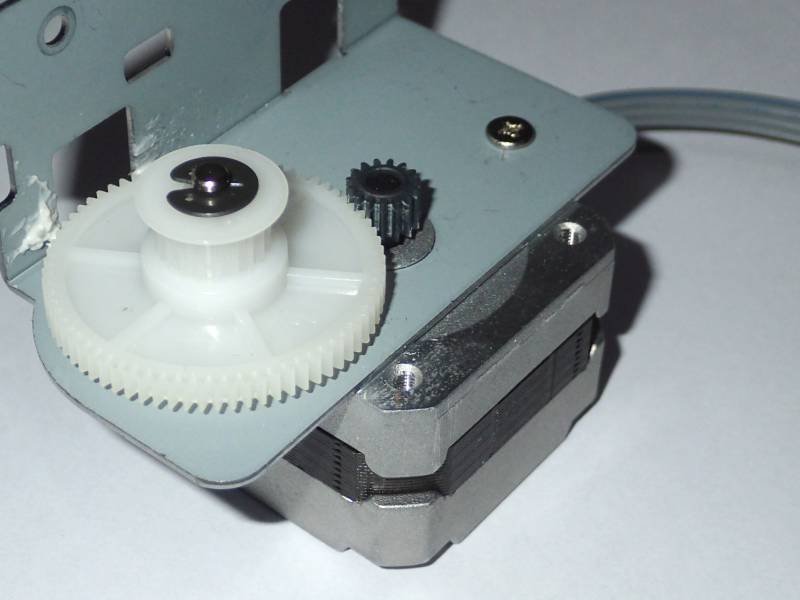

Recovered from HP M3027/M3035 photocopier
