FF-030 overview

DC Motor Description
ModelFF-0301)2)3)4)
ManufacturerMabuchi
Recovered fromToshiba XM-3301B, Hitachi GD-8000
Normal voltage5 VDC
Voltage range3.5-6.0 VDC
Performance5 V, no load5 V, 5.1 g-cm load5 V, 24 g-cm load
Speed11,700 RPM9230 RPMStalled
Current50 mA190 mA700 mA
RotationEither direction, depending on power polarity
Dimensions(not including shaft)Shaft
Length26.3 mm5.5 mm
Diameter15.5 mm1.5 mm
Height (Flat)12.0 mm-
Weight11 g
Connectorspins
Precious metal brushes
3 pole armature.

Additional info

Examples

Recovered from Toshiba XM-3301B:

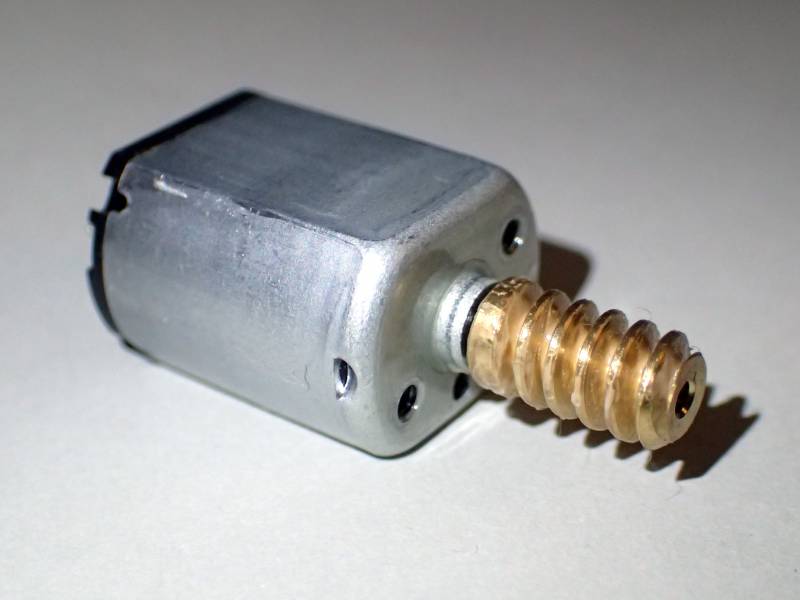

FF-030 overview

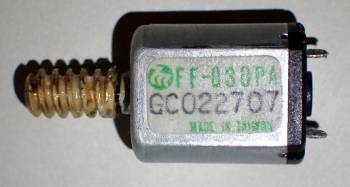

FF-030 top view

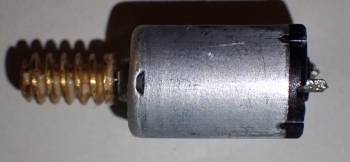

FF-030 front viewFF-030 side viewFF-030 rear view

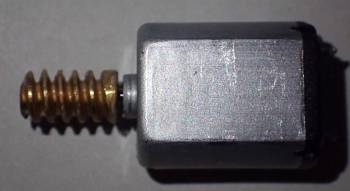

FF-030 bottom view
1) http://www.mini-dcmotor.com/sale-10900480-permanent-mini-dc-motor-3v-ff-030pa-flat-shape-for-electronic-door-lock.html
2) https://web.archive.org/web/20060705191212/http://www.mabuchi-motor.com:80/
3) https://product.mabuchi-motor.com/detail.html?id=19
4) https://product.mabuchi-motor.com/detail.html?id=20
