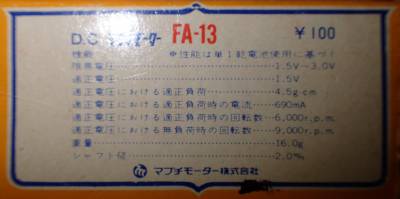

| DC Motor Description | ||||
|---|---|---|---|---|
| Model | FA-13 | |||
| Manufacturer | Mabuchi | |||
| Recovered from | - | |||
| Normal voltage | 1.5 VDC | |||
| Voltage range | 1.5 - 3.0 VDC | |||
| Performance | 1.5 V, no load | 1.5 V, 4.5 g-cm load | , g-cm load | |
| Speed | 9,000 RPM | 6,000 RPM | ||
| Current | 690 mA | |||
| Rotation | Either direction, depending on power polarity | |||
| Dimensions | (not including shaft) | Shaft | ||
| Length | mm | mm | ||
| Diameter | mm | 2.0 mm | ||
| Weight | 16.0 g | |||
| Connectors | ||||
