| DC Motor Description | |||||
|---|---|---|---|---|---|

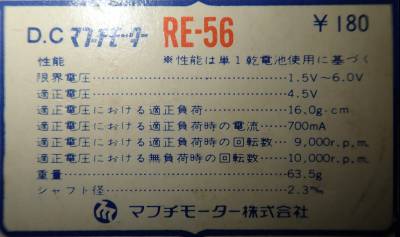

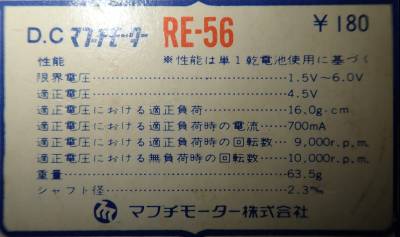

| Model | RE-56 1) | ||||
| Manufacturer | Mabuchi | ||||
| Recovered from | - | ||||
| Normal voltage | 4.5 VDC | ||||
| Voltage range | 1.5 to 6.0 VDC | ||||
| Performance | 4.5 V, no load | 4.5 V, 16.0 g-cm load | 4.5 V, 40 g-cm load2) | ||
| Speed | 10,000 RPM | 9,000 RPM | 7,300 RPM | Stall | |
| Current | ~500 mA | 700 mA | 1,350 mA | 2,700 mA | |
| Rotation | Either direction, depending on power polarity | ||||
| Dimensions | (not including shaft) | Shaft | |||
| Length | 30.5 mm | 10 mm | |||
| Diameter | 34 mm | 2.3 mm | |||
| Weight | 63.5 g | ||||
| Connectors | 8 cm flexible leads | ||||
Examples
