RE-26 overview

DC Motor Description1)
ModelRE-26 2)
ManufacturerMabuchi
Recovered from-
Normal voltage3.0 VDC
Voltage range1.5 to 3.0 VDC
Performance3.0 V, no load3.0 V, 10.0 g-cm load(unspecified)3)32 g-cm 4) (60 g-cm 5))
Speed10,500 RPM8,700 RPM10,100 RPMStall
Current mA700 mA200 mA
RotationEither direction, depending on power polarity
Dimensions(not including shaft)Shaft
Length mm mm
Diameter mm2.0 mm
Weight27.5 g
Connectors8 cm flexible leads

Examples

RE-26

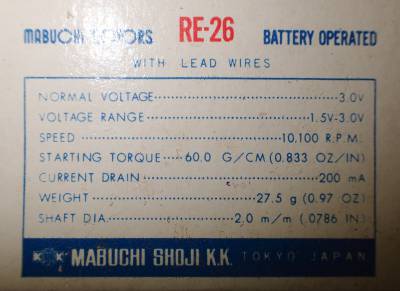

RE-26 box label

1) data from yellow/blue box unless specified
2) https://www.mabuchi-motor.com/product/knowledge/classification/designations.html
3) , 5) blue/red box
4) http://www.protom.org/motor/mabuchi-specs.html
