Published 5 Jul 2021

GD-8000


GD-8000 overview

CD/DVD Rom data
ModelGD-8000 (IBM P/N 24P3620)
ManufacturerHitachi
TypeDVDROM
Date2001

Components

  • V53C16258HK25 CMOS dynamic RAM
  • 2100
  • Sharp 20WZ51 Low Power-Loss Voltage Regulators, 3V - 20V
  • Sharp 07VR5MH Low Power-loss Voltage Regulator
  • HD62602BFD
  • Hitachi D3702TF
  • Mitsubishi M37911FGCHP
  • BD7902FS 6-channel driver IC with stepper/spindle drivers or CD/DVD-ROM
  • FF-030PA Mabuchi DC Motor.
  • Stepper motor
  • Spindle motor

Examples

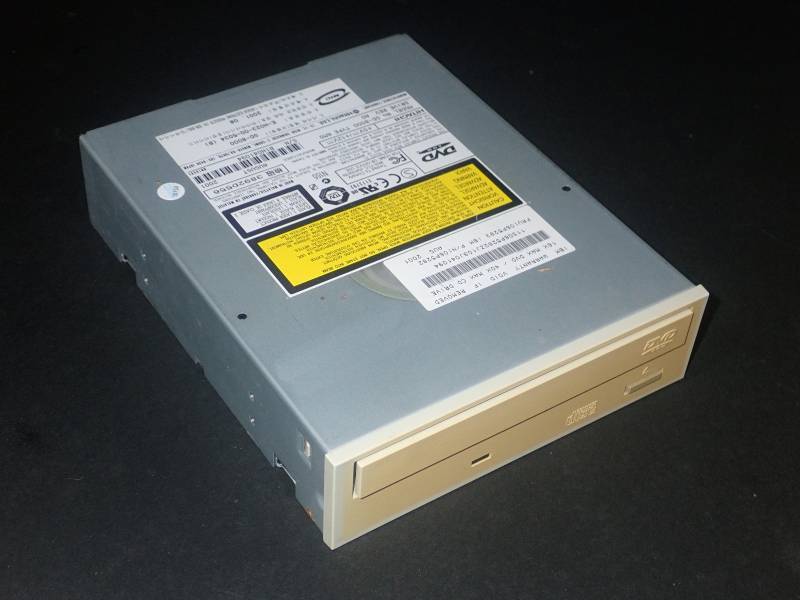

GD-8000 overview

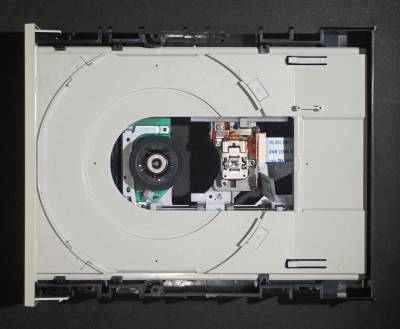

GD-8000 top
GD-8000 frontGD-8000 sideGD-8000 rear
GD-8000 bottom

Tear down

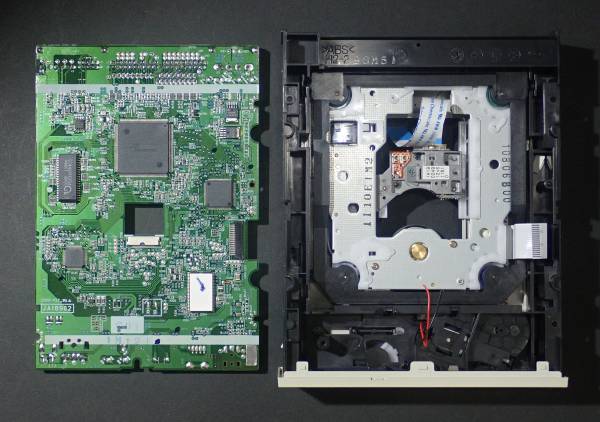

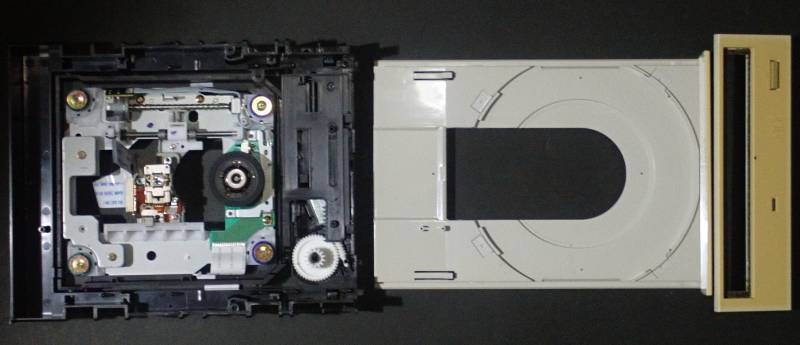

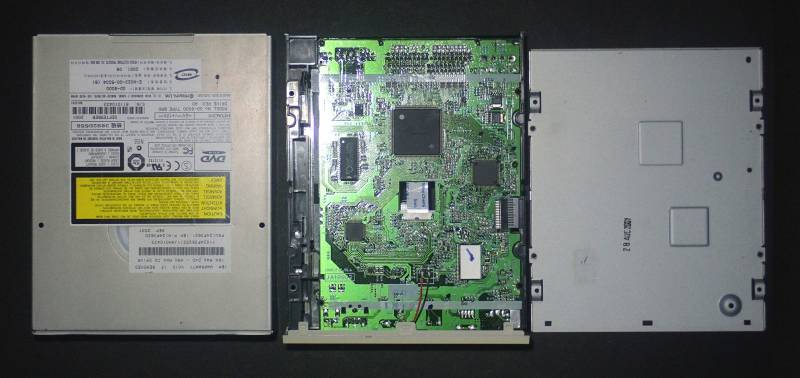

GD-8000 inside GD-8000 PCB removed

main PCB

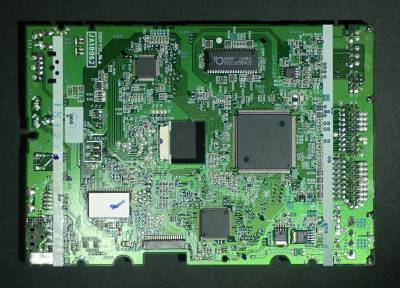

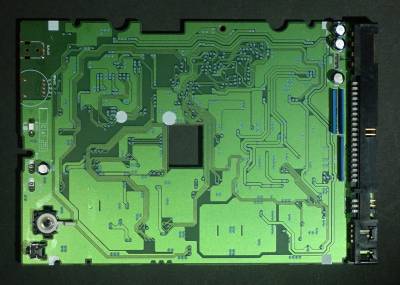

GD-8000 PCB topGD-8000 PCB bottom

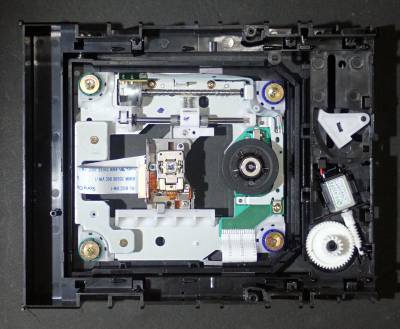

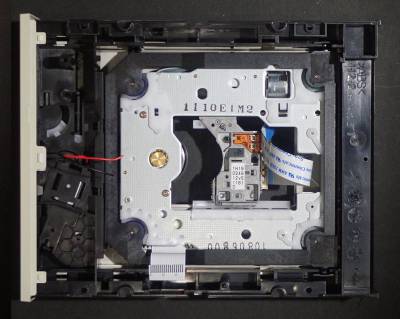

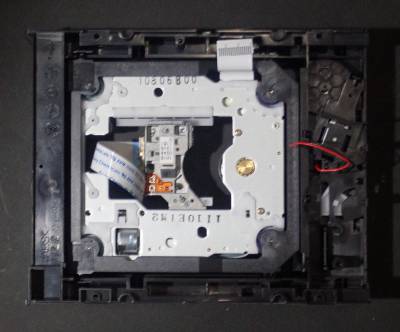

GD-8000 mechanism topGD-8000 mechanism bottom
slide and eject mechanism

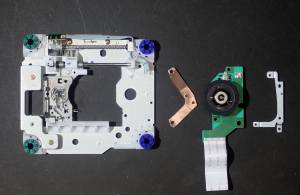

GD-8000 mechanism
GD-8000 mechanism topGD-8000 mechanism bottom

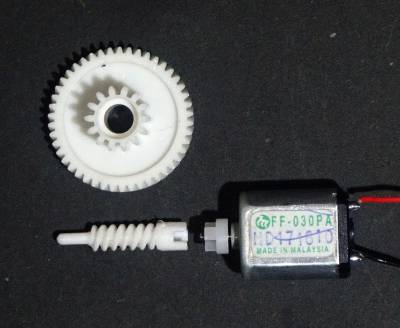

eject motor

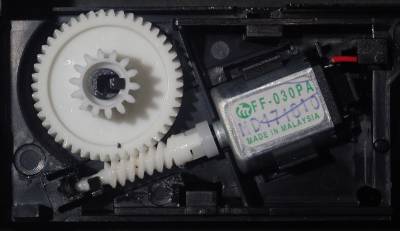

GD-8000 eject motor and gearGD-8000 eject motor and gear
motor coupling
GD-8000 motor couplingGD-8000 motor couplingGD-8000 motor couplingGD-8000 motor coupling
eject motor worm screw
GD-8000 eject motor worm screwGD-8000 eject motor worm screw

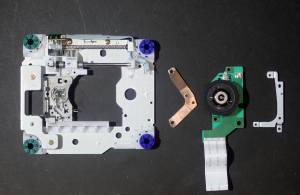

cd slide
GD-8000 slide GD-8000 slide
GD-8000 slide
GD-8000 slide GD-8000 slide
GD-8000 slideGD-8000 slide

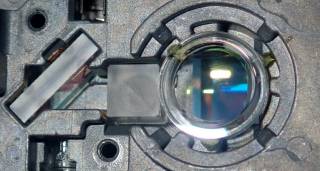

GD-8000 optics GD-8000 optics

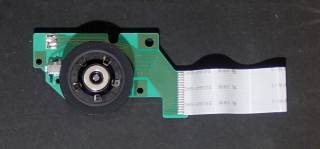

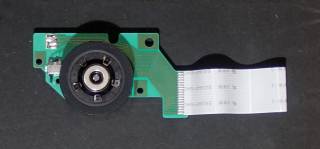

spin motor
GD-8000 spin motorGD-8000 spin motor
GD-8000 spin motorGD-8000 spin motorGD-8000 spin motor
