11-BT-189GNK

VFD Description
Model11-BT-189GNK, VAW1070-A
ManufacturerFutaba 1)
Recovered fromPioneer DVD, VNP1863-C board 2)
Character typeAlphanumeric
Characters10+
Colour
Driver IC
Connectorpins
Num Pins35
Pin spacing0.1”

Datasheets

Examples :

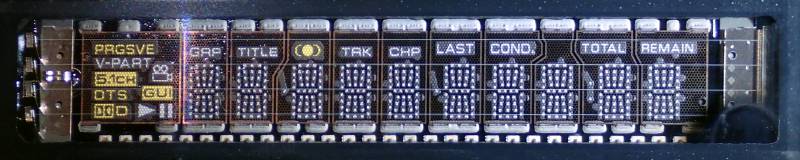

Recovered from Pioneer DVD, VNP1863-C board

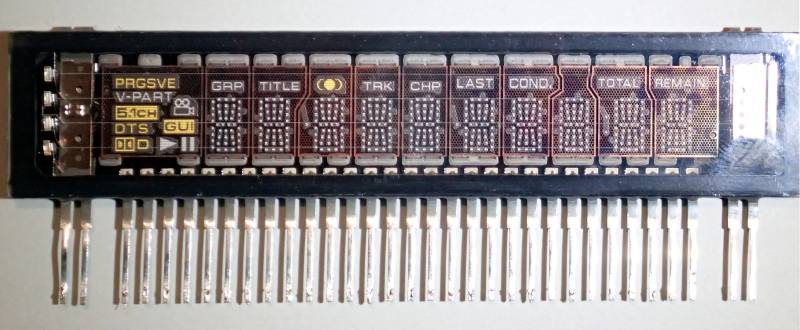

11-BT-189GNK

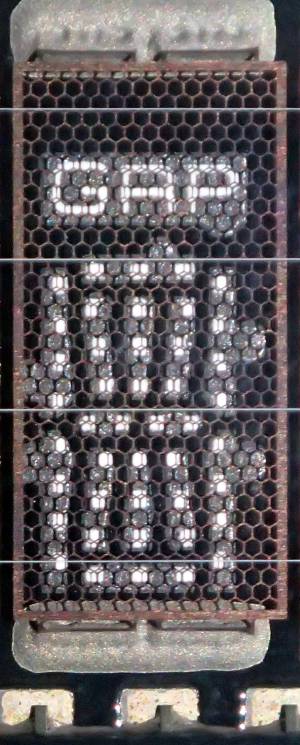

11-BT-189GNK

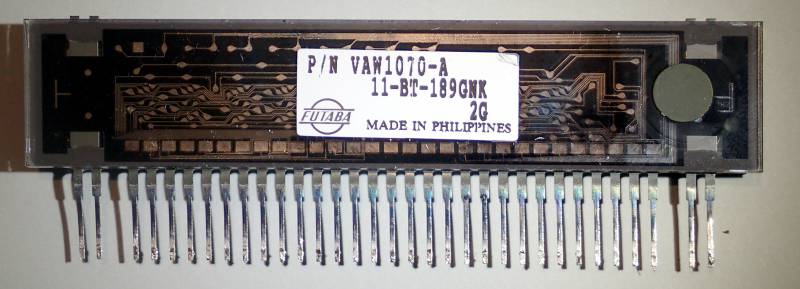

11-BT-189GNK

11-BT-189GNK

11-BT-189GNK

1) https://web.archive.org/web/19980212045736/http://futaba-na.com:80/ecd.html

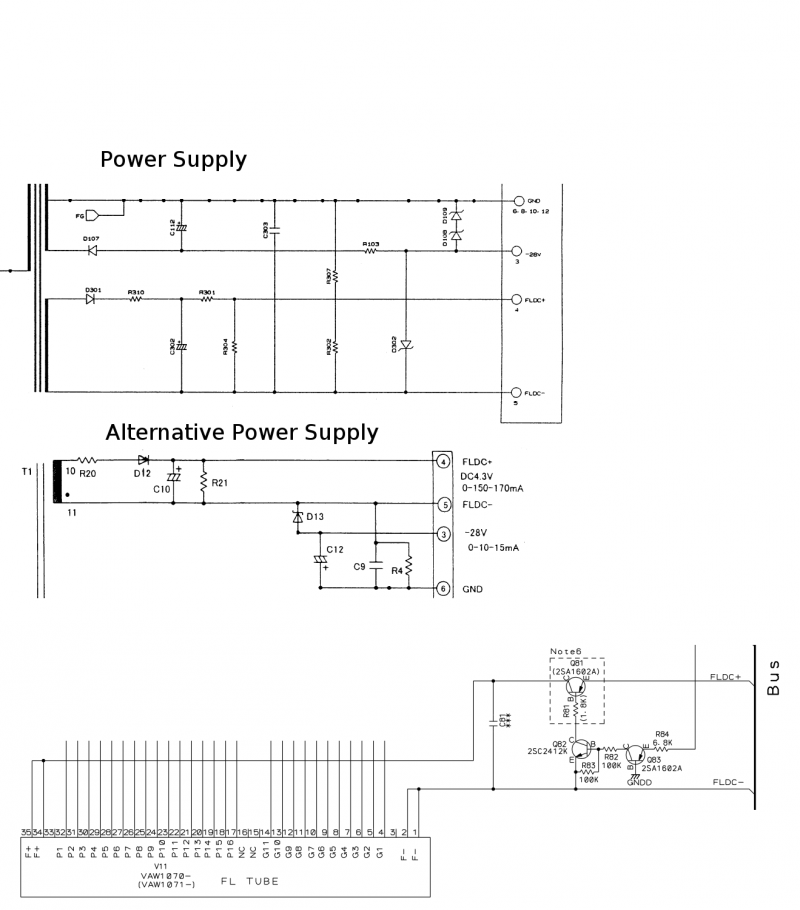

2) pioneer_dv-555k.pdf
