VFD module data
| VFD Description | |
|---|---|
| Model | A2BB00000185 |
| Manufacturer | Made in China |
| Recovered from | Panasonic SC-HC37 1) |
| Character type | Alphanumeric |
| Characters | 9 |
| Colour | Blue |

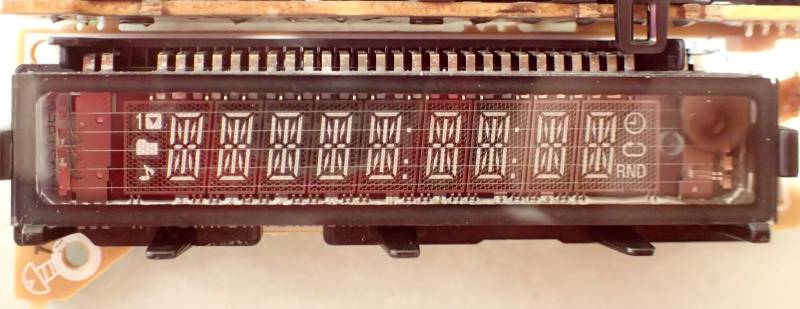

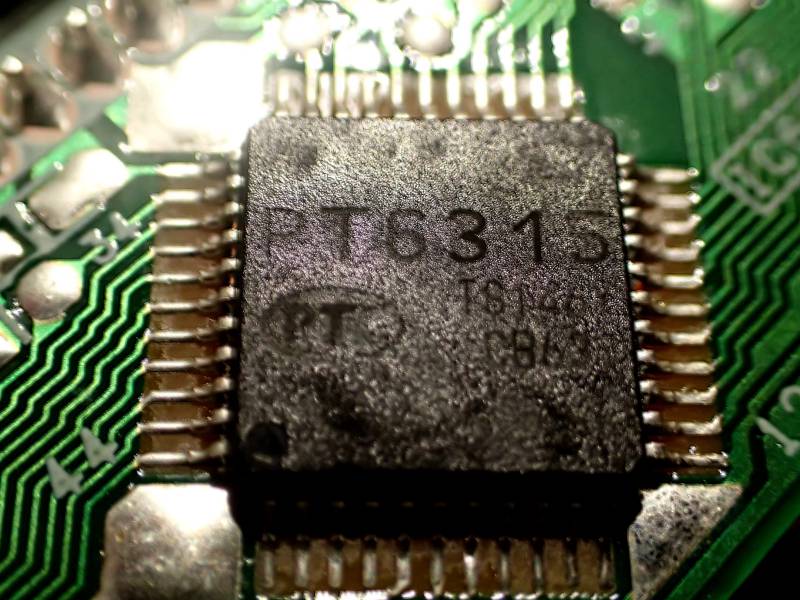

| Driver IC | PT6315 (Panasonic C0HBB0000057) |

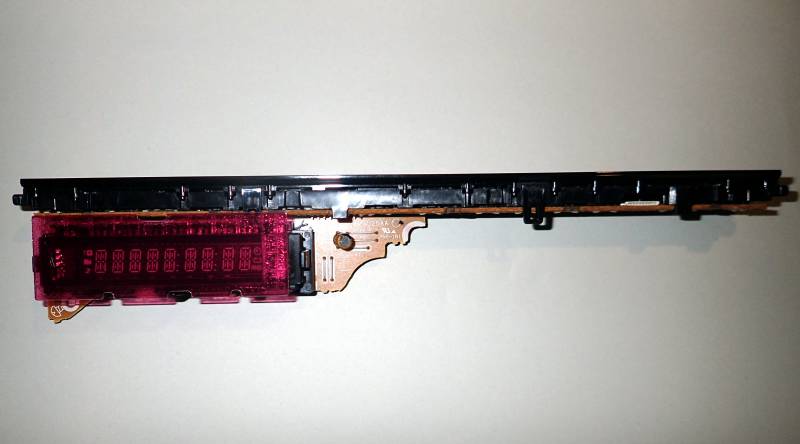

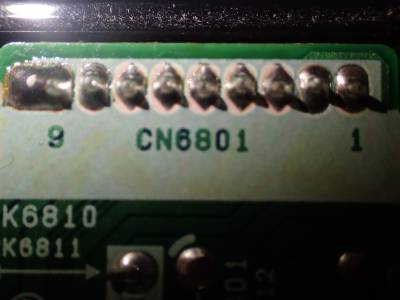

| Connector | |
| Num Pins | 9 |
| Pin spacing | 0.08” |
Datasheets
- PT6315 Vacuum Fluorescent Display Controller.
- PT6315 Vacuum Fluorescent Display Controller application note.

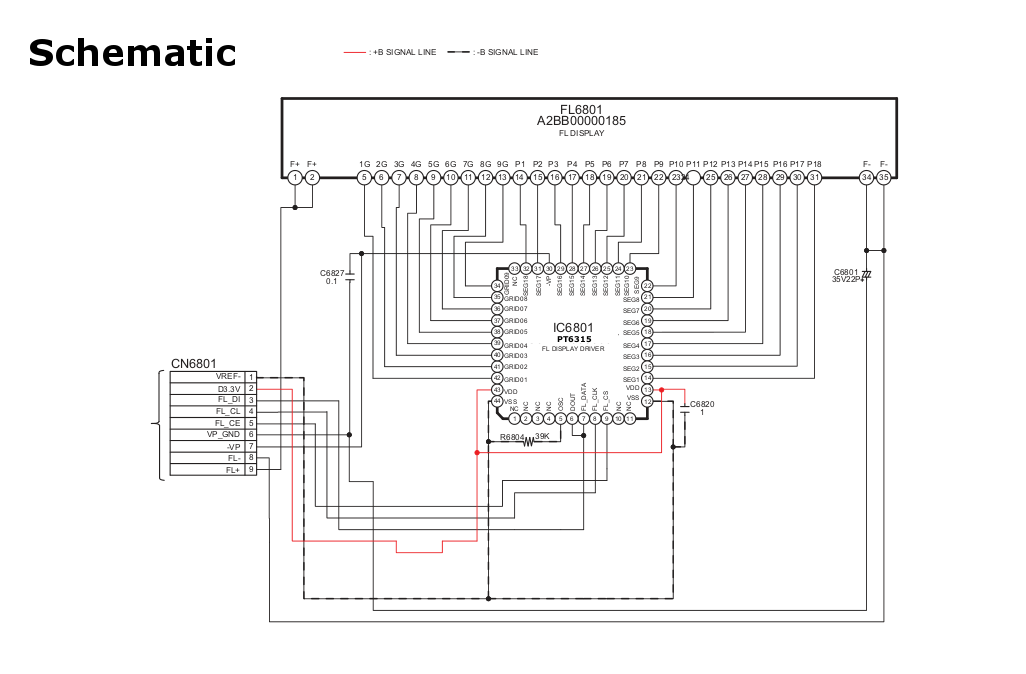

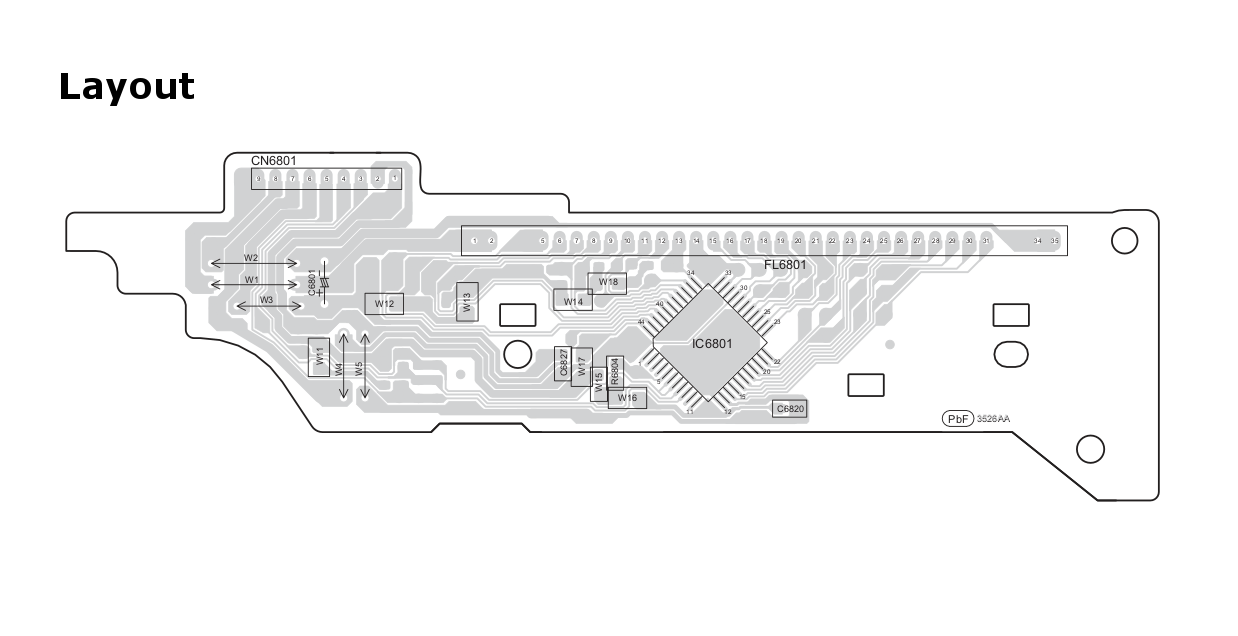

- A2BB00000185 schematic:
