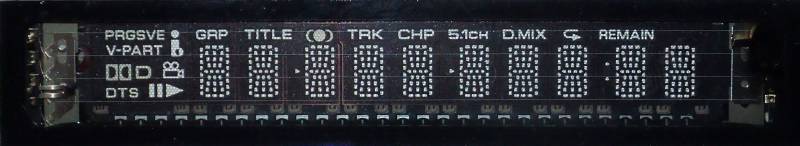

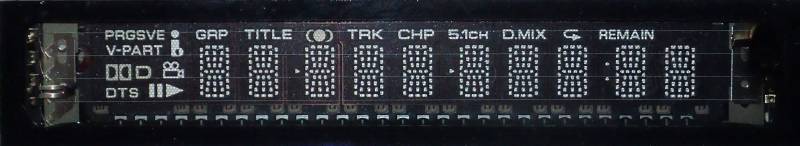

VFD module data
| VFD Description | |
|---|---|
| Model | VAW1076 |
| Manufacturer | |
| Recovered from | Pioneer DVD 1) |

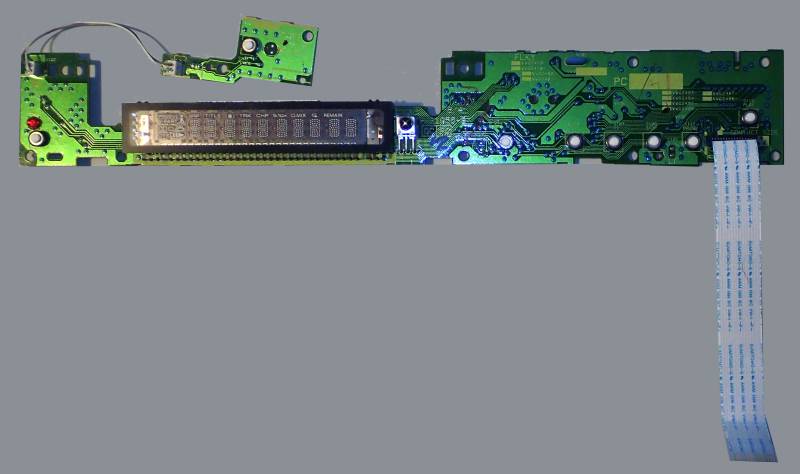

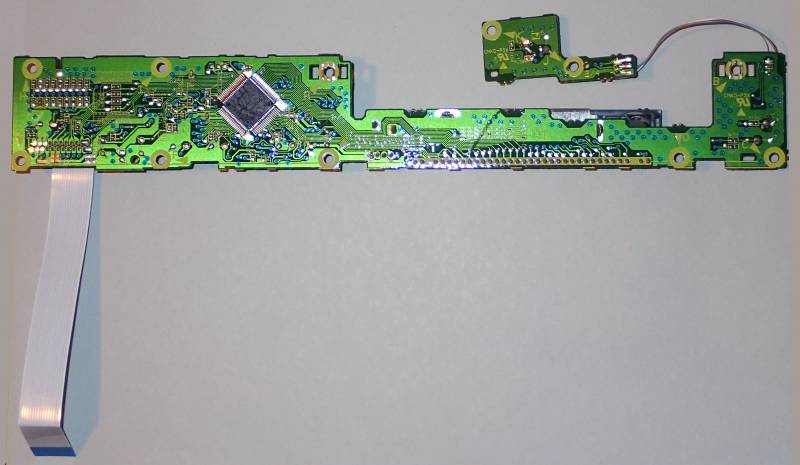

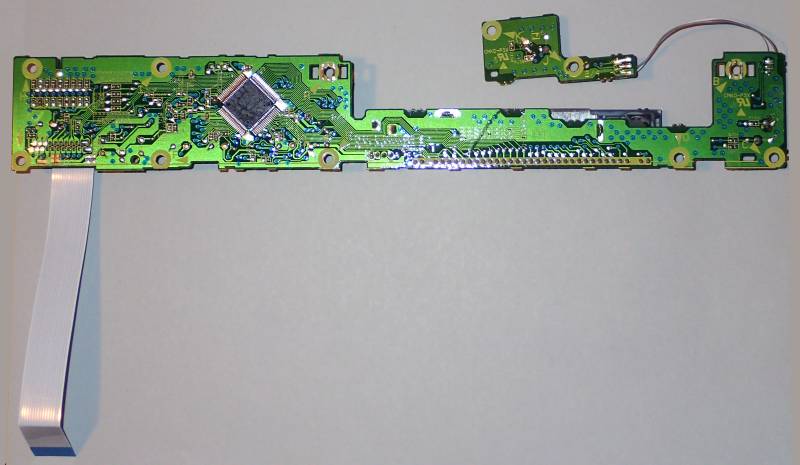

| Board IDs | VNP1956-B |
| Character type | Alphanumeric |
| Characters | 10 |
| Colour | |

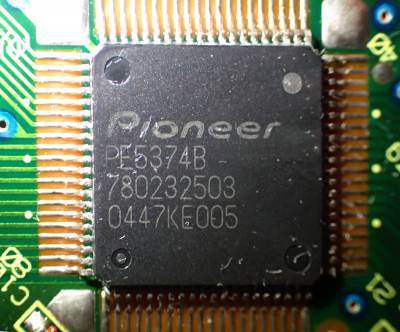

| Driver IC | Pioneer PE5374B |
| Connector | pins |
| Num Pins | 35 |
| Pin spacing | 0.1” |
| Pin-out | |||
|---|---|---|---|
| Pin# | Label | Pin | colour |
| 1 | FL- | ||
| 2 | FL- | ||
| 3 | - | ||
| 4 | G1 | ||
| 5 | G2 | ||
| 6 | G3 | ||
| 7 | G4 | ||
| 8 | G5 | ||
| 9 | G6 | ||
| 10 | G7 | ||
| 11 | G8 | ||
| 12 | G9 | ||
| 13 | G10 | ||
| 14 | G11 | ||
| 15 | nc | ||
| 16 | nc | ||
| 17 | P1 | ||
| 18 | P2 | ||
| 19 | P3 | ||
| 20 | P4 | ||
| 21 | P5 | ||
| 22 | P6 | ||
| 23 | P7 | ||
| 24 | P8 | ||
| 25 | P9 | ||
| 26 | P10 | ||
| 27 | P11 | ||
| 28 | P12 | ||
| 29 | P13 | ||
| 30 | P14 | ||
| 31 | P15 | ||
| 32 | P16 | ||
| 33 | - | ||
| 34 | FL+ | ||
| 35 | FL+ | ||
Driver board used -28V and 3V power supplies.
