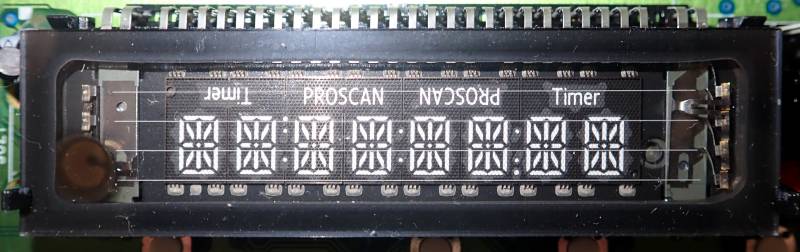

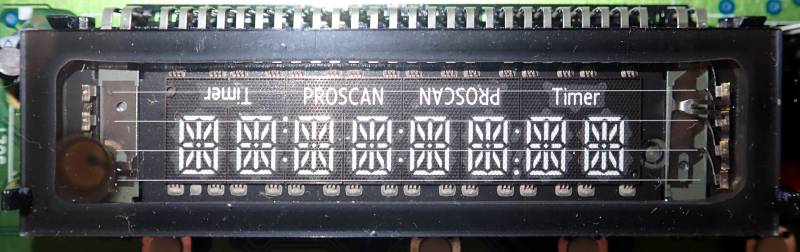

VFD module data
| VFD Description | |
|---|---|
| Model | 20U26115TAN, HUV-08SS57T |
| Manufacturer | |

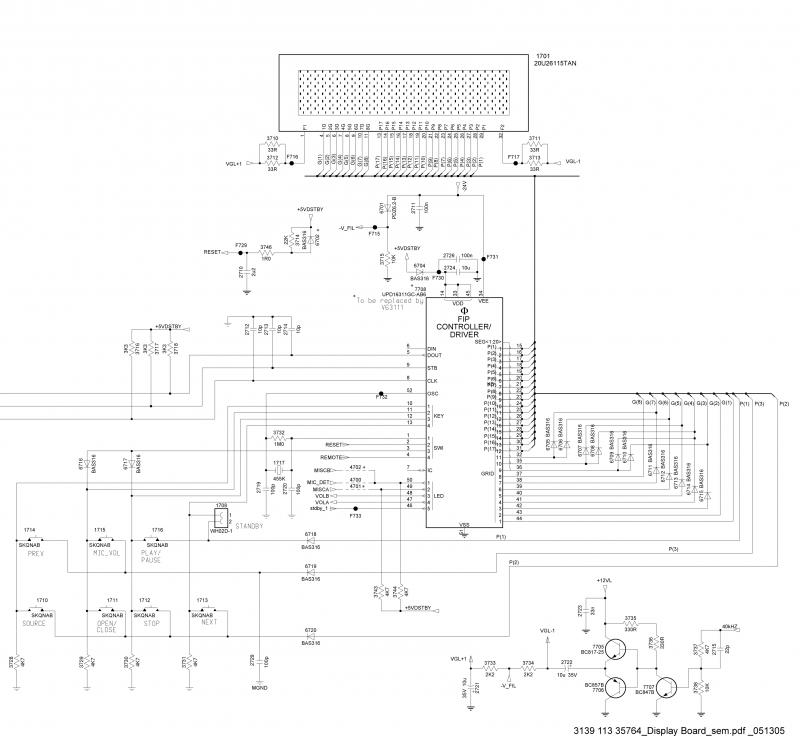

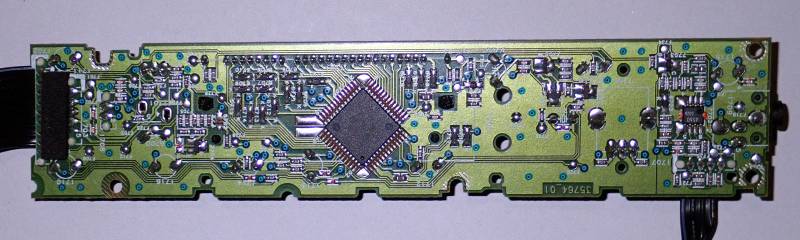

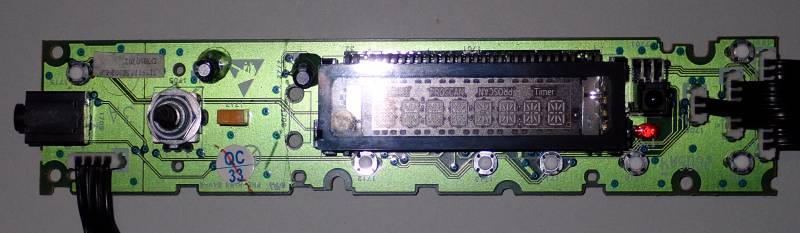

| Recovered from | Philips HTS 5310S 1) |

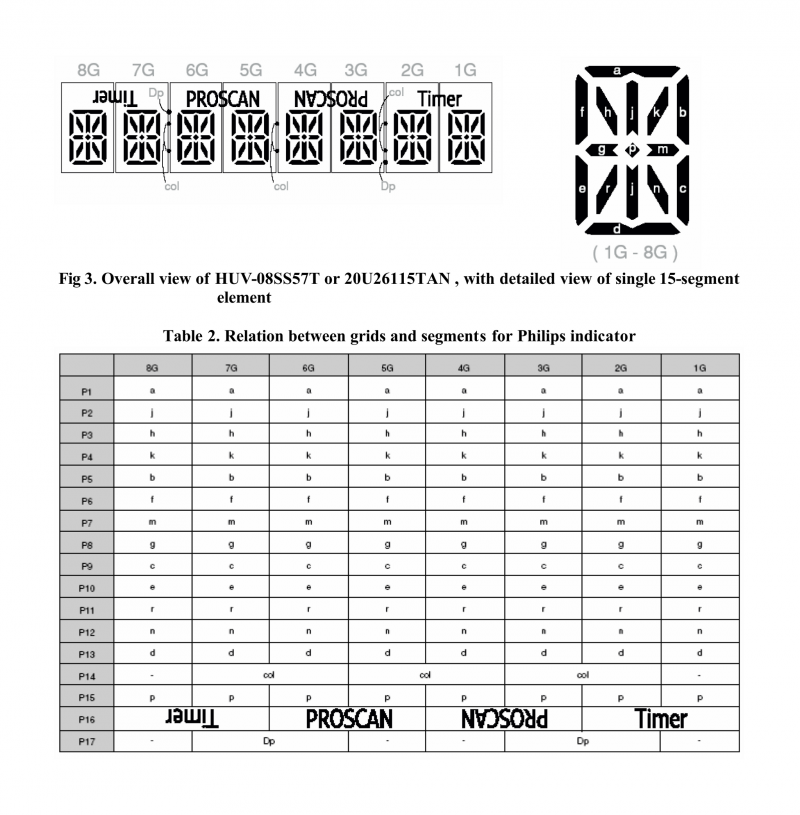

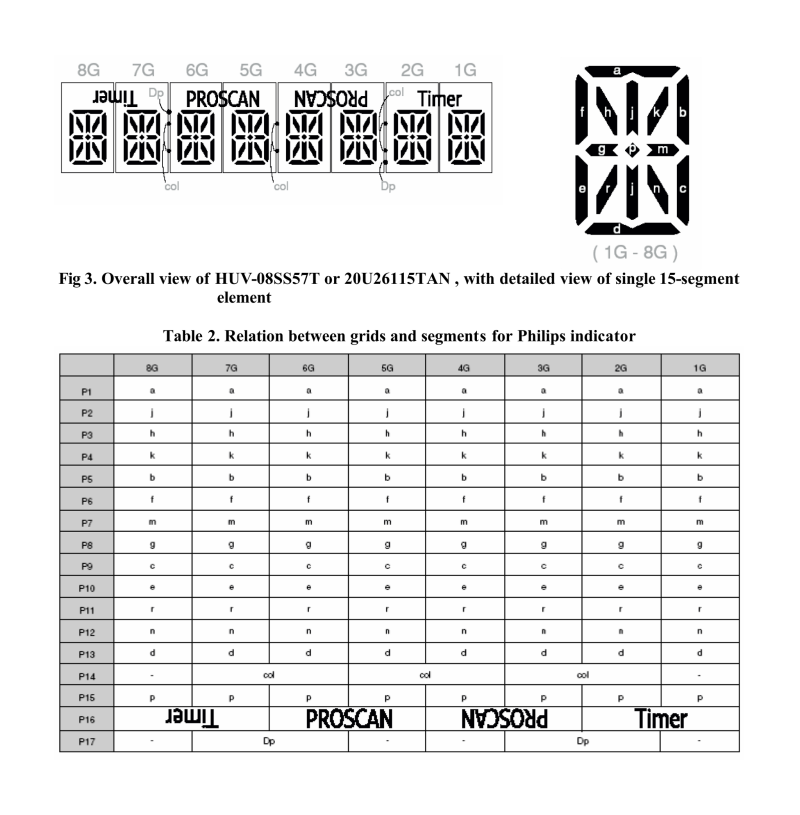

| Character type | Alphanumeric |
| Characters | 8 |
| Colour | |

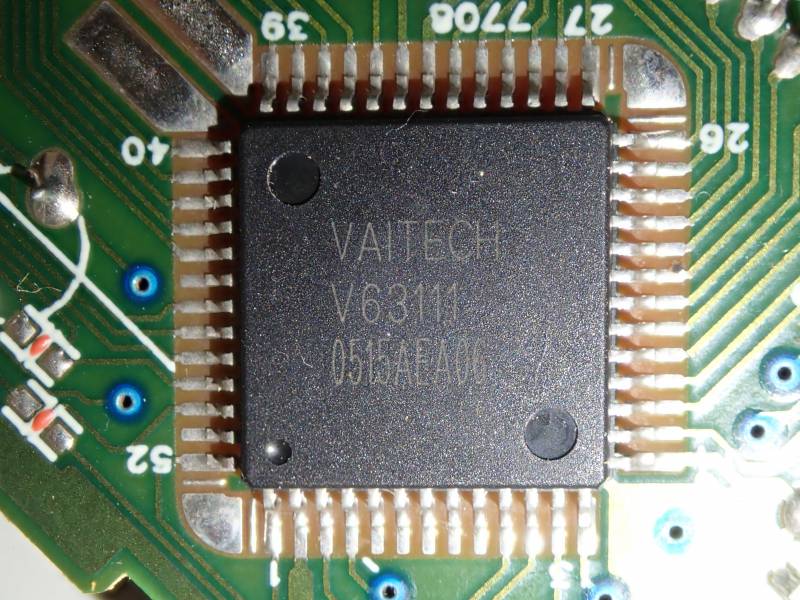

| Driver IC | V63111 2), 3) |
| Connector | pins |
| Num Pins | 32 |
| Pin spacing | 2mm |
Datasheets
- upd16311.pdf Vacuum Fluorescent Display Controller.
- pt6311.pdf Vacuum Fluorescent Display Controller.
Examples :
